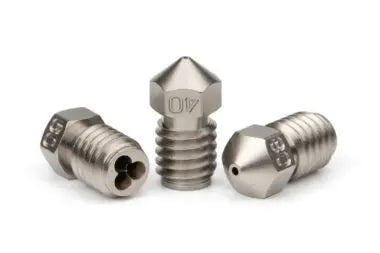

Bondtech CHT® Coated Brass Nozzle - M6

Bondtech CHT® Coated Brass Nozzle - M6

These are nozzles for High Flow applications

This Bondtech CHT RepRap M6 (MOS) nozzle increases the melting capacity of your hotend, to build faster and to save your time. It also improves the layer adhesion of your 3D prints to create stronger parts.

Main Bondtech CHT® Advantages

• Higher melt capacity by increasing the surface area of the heating walls
• Affordable price
• Machined with ultra-precision
• Brass nozzle with Nickel coated surface
• Follows nozzle standards:
  • RepRap (M6×1×7.5×12.5)
  • MK8 (M6×1×5×13)
  • Volcano (M6×1×14.5×21)
• May be used with 1.75 or 2.85mm hotends.

Advantages of the Bondtech CHT® technology:

Bondtech CHT® nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so, the material melts faster and higher flow rates can be used.

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle's surface.

---

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

They are manufactured by Bondtech in-house, and will fit the following hotends/blocks:
