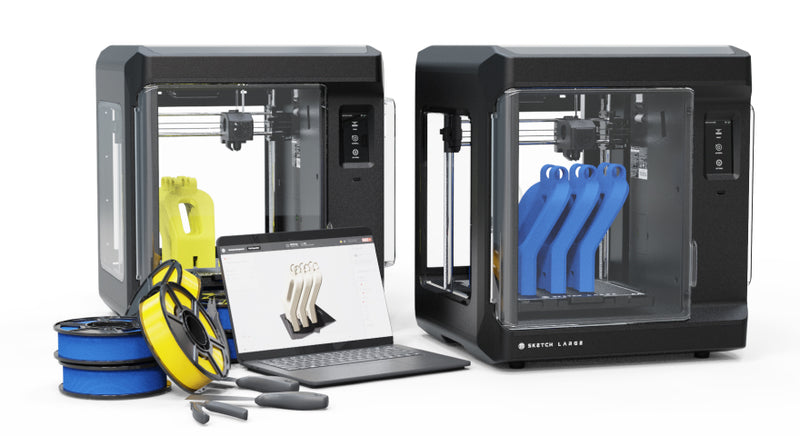

MakerBot SKETCH™ Large Classroom (2 printer setup)

PRINTING

Print Technology
Fused Deposition Modeling

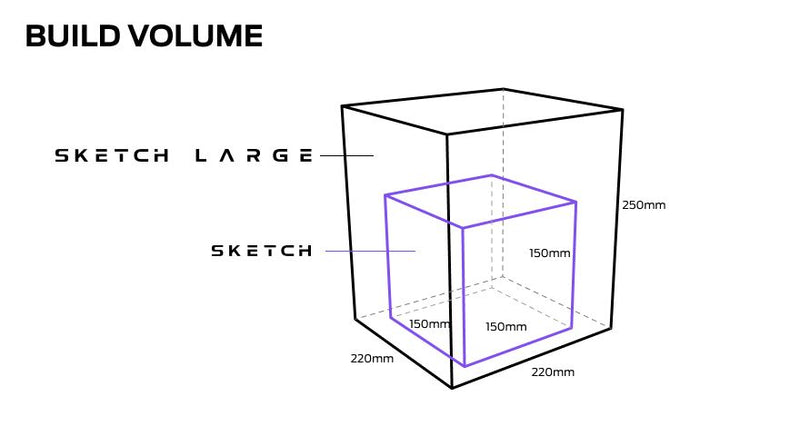

Build Volume
220mm x 200mm x 250mm
[8.66in x 7.87in x 9.84in]

Layer Resolution
100-400 microns [0.0039 IN-0.0157 IN]
Print mode tuned for 200 microns

Material Diameter
1.75 mm [0.069 in]

Material Compatibility
MakerBot Sketch PLA Material

Extruder Compatibility
MakerBot Sketch Extruder

Nozzle Diameter
0.4 MM [0.015 IN]

Print File Type
.MAKERBOT

TEMPERATURE

Ambient Operating Temperature
15­-30°C [59-86°F]

Storage Temperature
0­-55°C [32-­131°F]

SIZE & WEIGHT

Product Dimensions
547mm (H) x 535mm (W) x 470mm (D)
[21.54in (H) x 21.07n (W) x 18.50in (D)]

Shipping Box
675mm (H) x 569mm (W) x 591mm (D)
[26.57in (H) x 22.40in (W) X 23.27in (D)]

Product Weight
23.2kg [51.15lb]

Shipping Weight
32.5kg [71.65lb]

MECHANICAL

Build Surface
Grip Surface

Build Plate Leveling
Heated with removable flexible build surface

SAFETY & COMPLIANCE

Safety
Fully enclosed
Particulate Filter
UL, CE, FCC
IEC/ EN/ UL60950-1, IEC/ EN/UL 62368-1


SOFTWARE

Software Bundle
MakerBot Print Software

Supported File Types
MakerBot (.makerbot)
STL (.stl)
SolidWorks (.sldprt, .sldasm)
InventorOBJ (.ipt, .iam)
IGES (.iges, .igs)
STEP AP203/214 (.step, .stp)
CATIA (.CATPart, .CATProduct)
Wavefront Object (.obj)
Unigraphics/NX (.prt)
Solid Edge (.par, .asm)
ProE/Creo (.prt, .prt., .asm, .asm.)
VRML (.wrl)

Operating Systems
Windows (7, 10)
Mac OS X (10.12+)
NOTE: Does not support Mac Catalina

CAD Plugins
SolidWorks, Autodesk Fusion 360, Onshape, Autodesk Inventor

ELECTRICAL

Power Requirements
100-­240 V, 50-60 HZ
2.7-1.3A

Connectivity
USB, Ethernet, Wi­fi

CAMERA

Camera resolution
2 megapixels
