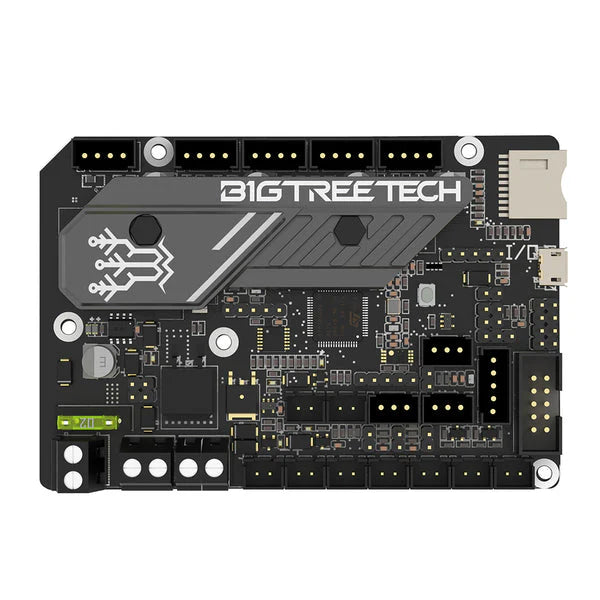

BIGTREETECH SKR MINI E3 V3.0 32 Bit Control Board
- VENDOR: BIGTREETECH
- TYPE: Parts
$69.99 CAD
Shipping calculated at checkout.
People are currently viewing this
Guaranteed Safe Checkout
Description
SKR MINI E3 V3.0 is a motherboard tailored specifically for Ender3 printers, a perfect replacement for original Ender 3 printer motherboards.
v3.0 Updates:
- Increased SPI output port +3.3V power supply, external SPI sensor power supply voltage +3.3V and +5V optional.
- PC communication USB interface is changed from Mini USB to Micro USB B, which is more adaptable.
- Increased the power supply of the SPI output port, support the motherboard to directly supply power to the peripherals.
- Onboard TMC2209 mute driver UART mode, support mute printing.
- Increased the thermistor interface protection circuit to prevent burning of the main control chip.

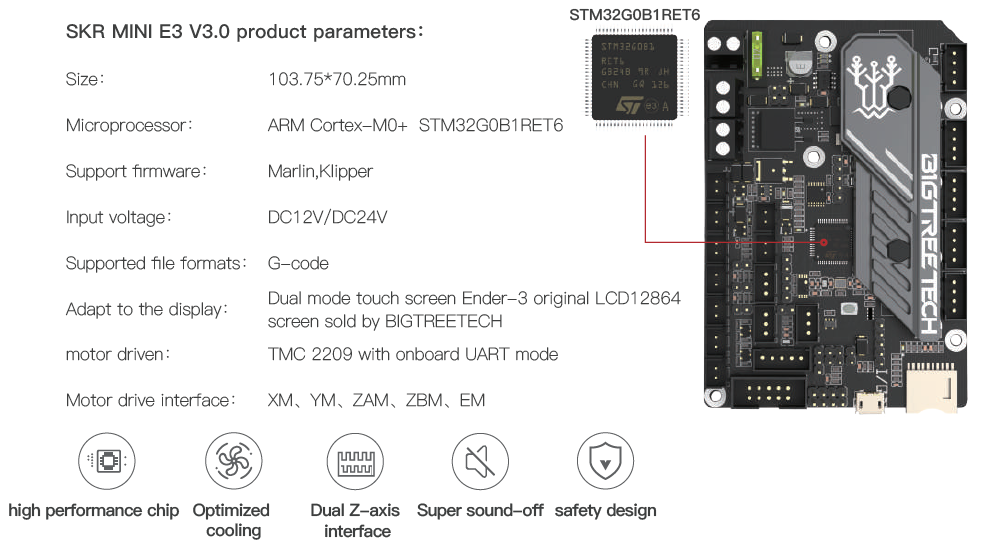

Specifications:
- Product Size:103.75*70.25mm
- Board Layer:4
- MCU:STM32G0B1RET6/STM32G0B0RET6
- Power Input:DC12/24V
- Logic Voltage:3.3V
- Motor Driver:UART mode of on-board TMC2209
- Interfaces Of Motor Driver:XM,YM,ZAM,ZBM,EM
- Interfaces Of Temperature Sensor:TH0,THB,2-way 100K NTC(RTD)
- Matched Display Screen:2.4-inch TFT,3.5-inch TFT,Ender3 original LCD12864 screen,etc.
- PC Communication Interface:USB Micro B type,easy to plug,communication baud rate 115200
- File Format:G-code
- Recommended Software:Cura,Simplify 3D,Pronterface,Repetier-host,Makerware
- Onboard EEPROM:24C32
- Double Z-axis interface：YES
- CNC Fan Interfaces：3
- 5V Power Supply：BL Touch,TFT and RGB interfaces，DCDC5V V1.0 Module
- Onboard 5V Power Supply
- Onboard Sensorless Homing Function
- Support firmware: Marlin, Klipper
- Support: SD card offline printing
- Support: online printing
- Support: SPI, UART expansion, can connect to Raspberry Pi through SPI, UART, USB (Type-C) virtual serial port
- Support 2 heating rod output (heating rod, hot bed). Support three-way controllable fan output. Support 4-way limit switch.
- Integrated RGB color light strip drive circuit
- support：BL touch,filament detection,power-off resume,automatic shutdown(PS-ON),etc
- Compatible：Ender 3,Ender 3 Pro,Ender 5,CR 10
What's in the box:
- BIGTREETECH SKR Mini E3 V3.0 with integrated TMC2209 stepper drivers
- USB Cable
