THIS IS A PRE-ORDER - 2-3 WEEK LEAD TIME WILL APPLY FROM DATE OF PURCHASE

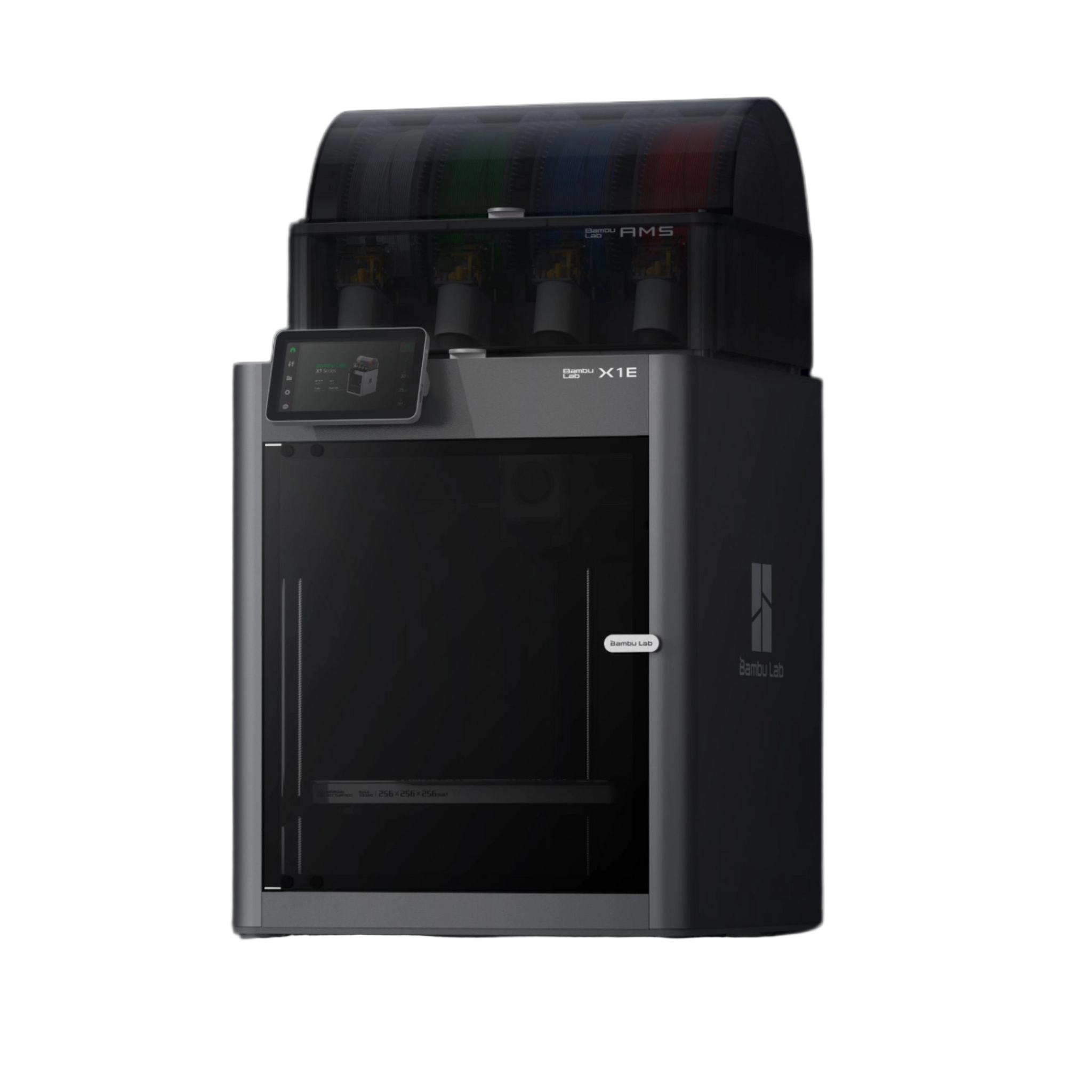

Bambu Lab X1E

Technical Specification

Body
Build Volume: 256*256*256 mm3
Chassis: Steel
Shell: Aluminum & Glass
Supported Filament
PLA, PETG, TPU, PVA, BVOH: Optimal
ABS, ASA, PC, PA, PET: Superior
Carbon/Glass Fiber Reinforced PLA,
PETG, PA, PET, PC, ABS, ASA:

Superior
PPA-CF/GF, PPS, PPS-CF/GF: Ideal
Heating
Active Chamber Heating: yes
Maximum Chamber Control Temperature: 60°C
Air Purification
Pre-filter grade: G3
HEPA filter grade: H12
Activated Carbon Filter type: Coconut Shell Granulated
VOC Filtration: Optimal
Particulate Matter Filtration: Yes
Network Control
Ethernet: yes
Wireless Network: Wi-Fi
Network Kill Switch: Wi-Fi & Ethernet
Removable Network Module: Yes
802.1X Network Access Control: Yes

Cooling
Part Cooling Fan: Closed Loop Control
Hot End Fan: Closed Loop Control
Control Board Fan: Closed Loop Control
Chamber Temperature Regulator Fan: Closed Loop Control
Auxiliary Part Cooling Fan: Closed Loop Control
ToolHead
Hot End: All-Metal
Extruder Gears: Hardened Steel
Nozzle: Hardened Steel
Max Hot End Temperature: 320 °C
Nozzle Diameter (Included): 0.4 mm
Nozzle Diameter (Optional): 0.2 mm, 0.6 mm, 0.8 mm
Filament Cutter: Yes
Filament Diameter: 1.75 mm
Heatbed
Build Plate: Flexible Steel Plate
Build Plate Surface (Included): Bambu Smooth PEI Plate
Build Plate Surface (Optional): Bambu High Temperature Plate,
Bambu Textured PEI Plate, Bambu Cool Plate

Max Build Plate Temperature: 110°C@220V, 120°C@110V
Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20 m/s2
Max Hot End Flow: 32 mm3/s @ABS(Model: 150*150mm single wall;
Material: Bambu ABS; Temperature: 280°C)

Sensors
Bambu Micro Lidar: Yes
Chamber Monitoring Camera: 1920*1080 Included
Door Sensor: Yes
Filament Run Out Sensor: Yes
Filament Odometry: Optional with AMS
Power Loss Recover: Yes

Physical Dimensions
Dimensions: 389*389*457 mm3
Net Weight : 16 kg
Electrical Requirements
Voltage: 100-240 VAC, 50/60 Hz
Max Power: 1400W@220V,750W@110V
Electronics
Display: 5-inch 1280*720 Touch Screen
Storage: 4GB EMMC and Micro SD Card Reader
Control Interface: Touch Screen, APP, PC Application
Motion Controller: Dual-Core Cortex M4
Application Processor: Quad ARM A7 1.2 GHz
Neural-Network Processing Unit: 2 Tops
Software
Slicer: Bambu StudioSupport third party slicers which export standard
G-code such as SuperSlicer, PrusaSlicer and Cura, but certain
advanced features may not be supported.

Slicer Supported OS: MacOS, Windows
Wi-Fi
Frequency Range: 2412 MHz - 2472 MHz (CE)
2412 Mhz - 2462 MHz (FCC)
2400 MHz - 2483.5 MHz (SRRC)

Transmitter Power (EIRP): ≤ 21.5 dBm (FCC)
≤ 20 dBm (CE/SRRC)
Protocol: IEEE 802.11 b/g/n
Ethernet
Socket: RJ45
Speed: 100 Mbps / Full Duplex
Laser
Laser
(CLASS 1):

850 nm、850 nm
< 0.778 mW
