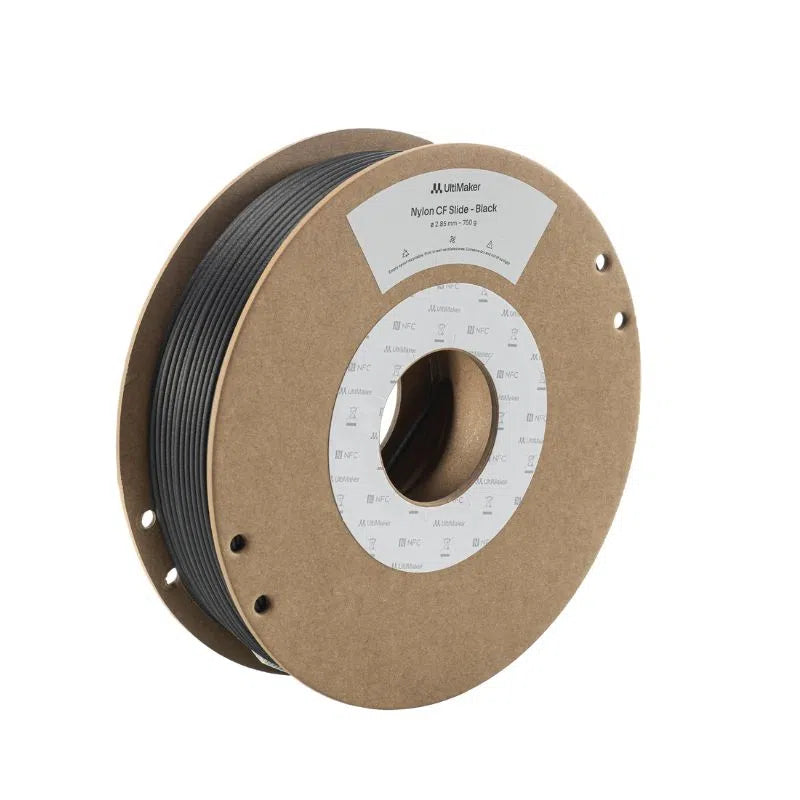

UltiMaker Nylon CF Slide Filament Black (0.75 kg)
Strong, rigid and wear-resistant, Nylon CF Slide Ultimaker is a filament designed for demanding tribological applications. Thanks to its unique carbon-fiber formulation, this material ensures low friction and excellent dimensional stability, even under extreme conditions.
It represents an ideal alternative to POM and other nylon composites, offering reduced moisture absorption. It is particularly suited to applications involving repeated movements and mechanical contact, such as :
- Conveyor components (guides, dividers, gears)
- Gripping tools (gripper fingers, robotic tips)
- Moving parts (gears, star wheels, transition blocks)
- Industrial jigs and fixtures
Nylon CF Ultimaker key features
Wear resistance:
Retains its mechanical properties and surface finish over the long term.
Low friction: Ideal for parts subject to frequent movement/slip.
Thermal resistance: withstands temperatures up to 135°C (and 180°C after annealing).
Chemical resistance: Insensitive to industrial solvents and oils.
PFAS-free formulation:
A safer alternative that respects environmental standards.
Our recommendations for use with Nylon CF Slide Ultimaker
Supplied with an NFC chip, this filament is automatically recognized when inserted. Print settings will then be optimized for high-quality parts.
Nylon CF Slide has good resistance to humidity, but special care should be taken with storage conditions. Use of the Material Station is highly recommended to guarantee material quality.
As this material is reinforced with carbon fibers, we recommend the use of hardened steel or ruby nozzles to avoid premature wear of printer components. Print Core CC will be required on TDS machines.
TDS - Nylon CF Slide Ultimaker
Characteristics of Nylon CF Slide Ultimaker - 2.85mm - 750g
Material: PA
Visual appearance : Mat
Diameter: 2.85 mm
Moisture sensitivity: Low
Application: Production, Functional part, Extreme
Difficulty level: Intermediate
Color: Black
Net weight: 750 g
Technical values: Bending temperature under load (0.45 MPa) 180 °C
Charpy: 24 kJ/m²
Tensile modulus: 3886 MPa
Flexural modulus: 2560 MPa
Density: xml-ph-0 03 g/cm3
Shore hardness: 76 D
Nozzle diameter: 0.6 mm
Specific equipment: UltiMaker S Series
