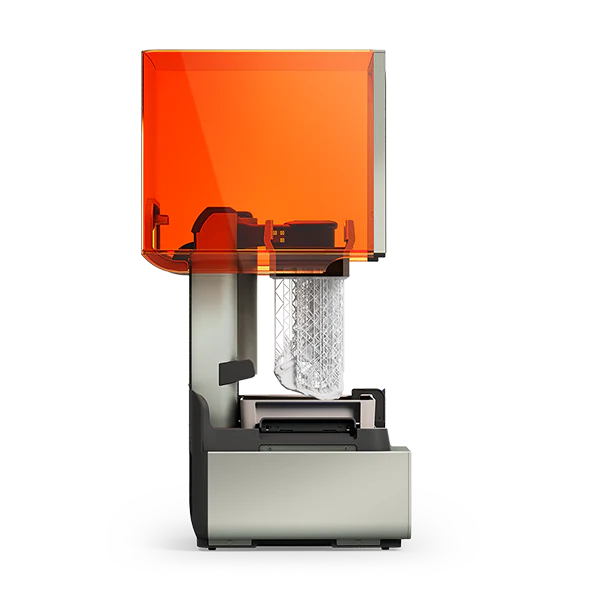

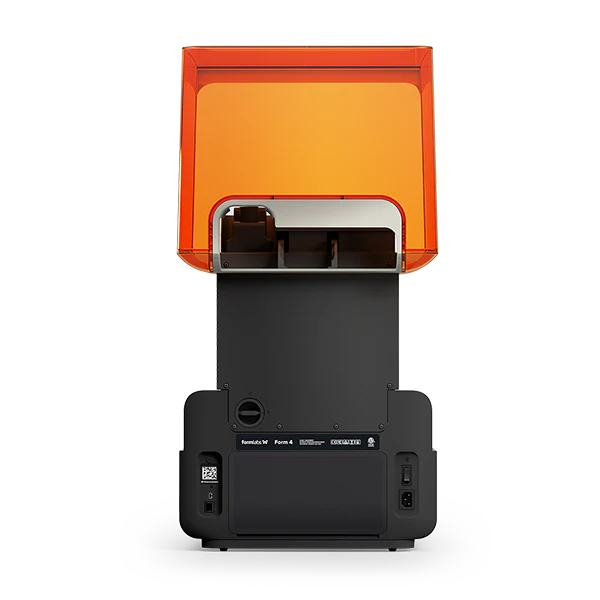

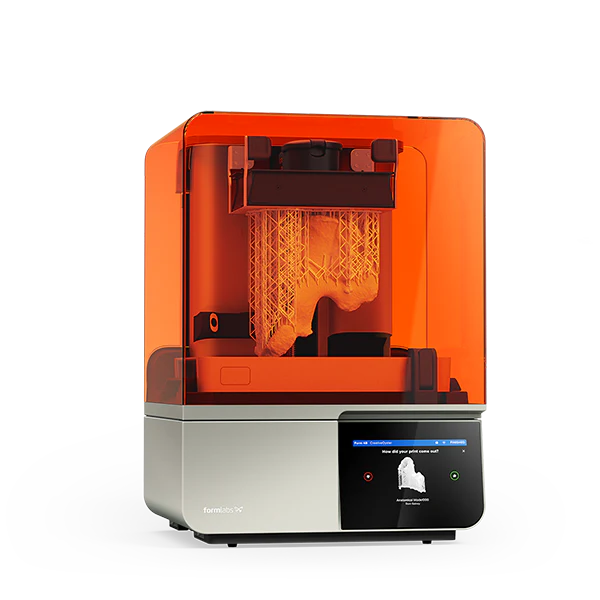

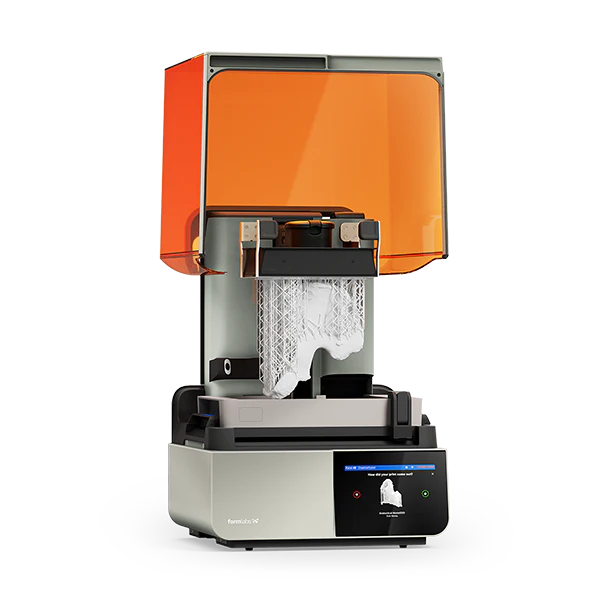

Form 4 Basic Package
- VENDOR: Formlabs
- TYPE: SLA Printer
$5,299.00 CAD
Shipping calculated at checkout.
People are currently viewing this
Guaranteed Safe Checkout
Description
LEAD TIME MAY APPLY
Get more done with most prints in under 2 hours.
Game Controller Print Time:
- Form 4: 1h 38m
- Benchmark FDM: 3h 37m
- Benchmark SLA: 4h 11m
- Form 3+: 10h 47m
Electrical Connector Print Time:
- Form 4: 1h 28m
- Benchmark FDM: 9h 12m
- Benchmark SLA: 2h 16m
- Form 3+: 9h 43m
Produce stunning parts that always fit, rivalling injection molded parts.
-
Sharpest Details
Highly collimated light and 50 µm pixel size with pre-tuned anti-aliasing for subpixel resolution -
Smoothest Surfaces
Lower peel forces, light touch supports, and 50 µm pixel size with pre-tuned anti-aliasing -
Most Accurate Assemblies
±0.15% XY dimensional tolerances so assembles always fit.
Tackle any problem with our industry-leading materials.
Formlabs has a vast library of specific use case resins as well as general purpose resins that still offer enchanced mechanical properties over other resins. Use Formlabs Resin for:
- General Purpose
- Tough. Impact-resistant, PP-like, ABS-like
- Rigid. Ultra stiff, high strength, glass-filled
- Flame Retardant. UL 94 V-0 certified, FST rated
- Silicone. 100% pure silicone
- Elastic. Translucent elastomers. 50A and 80A shore hardness
- Biocompatible. Class I and Class II with Form 4B
- Polyurethane. Long-term durability, true polyurethane
- Ceramic. 99.99% pure alumina technical ceramic
Unmatched reliability. Stop coming back to failed prints.
With new systems in place to ensure you never come back to a failed print
- Validated Print Settings: Formlabs optimization engineers put hundreds of printed parts to the test to ensure each material performs to the most reliable standards, right out of the box.
- Intelligent Control Systems: Six control systems precisely measure and maintain the temperature, resin level, print forces, and print status inside your printer.
-
Long-Lasting Consumables: Robust hardware that was engineered for years of use.
Tank rated for >75,000 layers for all materials.
Light Processing Unit rated for >750,000 layers.
- Factory Calibration: 60-point calibration and quality control inspection before your printer even leaves the factory.
- Remote Monitoring: Monitor your prints and manage your printers from anywhere with an integrated camera, preventative maintenance reminders, and our free Dashboard software.
A system so intuitive that anyone can learn to print in 15 minutes
1. Import your model and prepare your print
- Smart auto-orientation
- Advanced support generation
- Live printability checks
2. Load a material and click print
- Validated print settings
- No-hassle cartridge and tank
- Automatic resin dispensing
3. Remove, wash, cure
- Quick release part removal
- Automatic part cleaning
- precision post-curing for peak material properties
4. Finish your part
- Light touch supports for quick, clean support removal
- Optional sanding, coating, or painting
- Technology: Low Force Display (LFD)
- Build Volume (W x D x H): 20.0 x 12.5 x 21.0cm | 7.9 x 4.9 x 8.3in
- Layer Thickness (Z resolution): 25 - 300 microns
- XY Resolution: 50 Microns
- Average Print Speed (100 µm layer height): 40mm/h
- Maximum Print Speed: 100mm/h
- Resin Tank Lifetime: 75,000+ layers with any Formlabs material
- Printer weight: 18.3kg | 40.4lb
- Printer dimensions: 39.8 x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9in
- Warranty and service: One-year warranty included | Paid service and extended warranty options available
- Software compatibility: Windows 7 and up | Mac os X 10.12 and up
- File Types accepted: STL, OBJ, 3MF
- 1 x Formlabs Form 4 3D Printer
- 1 x Formlabs Form 4 Resin Tank
- 1 x Formlabs Form 4 Mixer
- 1 x Formlabs Form 4 Build Platform
- 1 x Formlabs Form 4 Finish Kit
