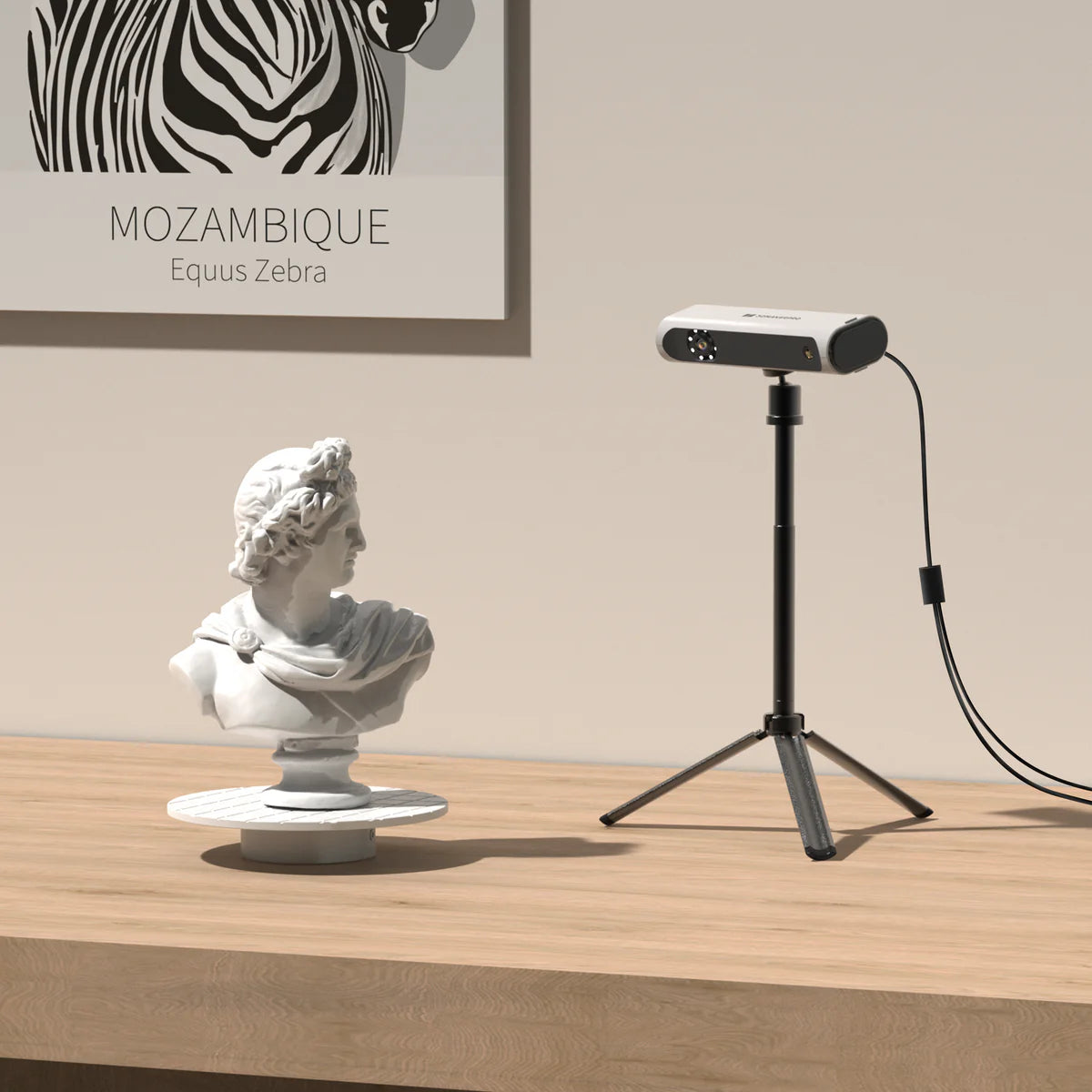

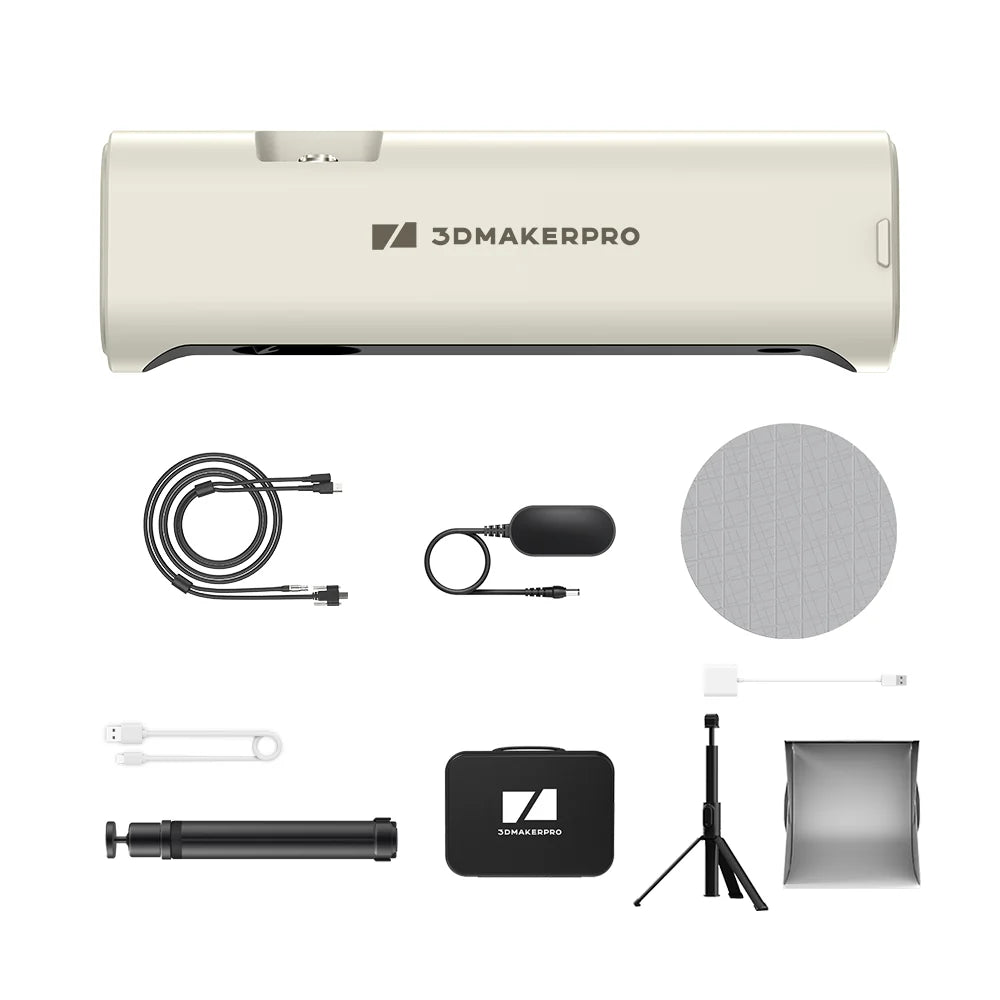

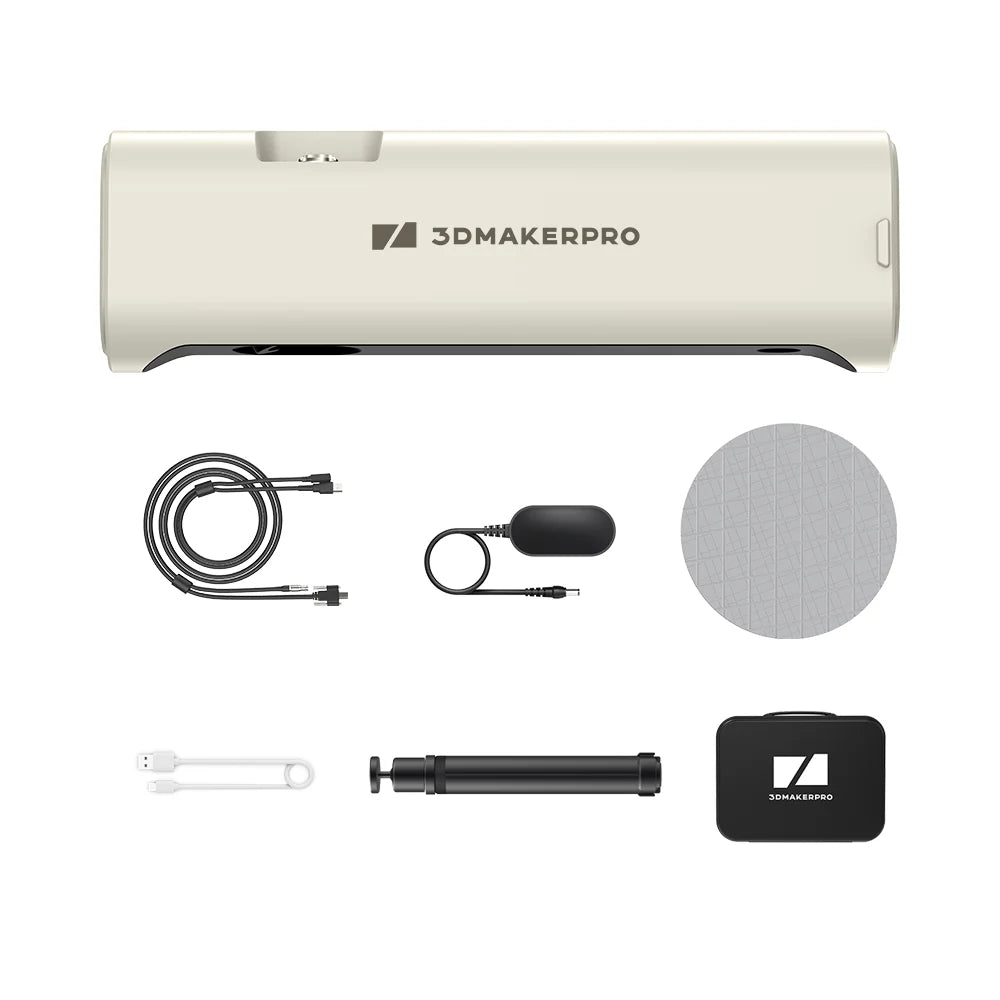

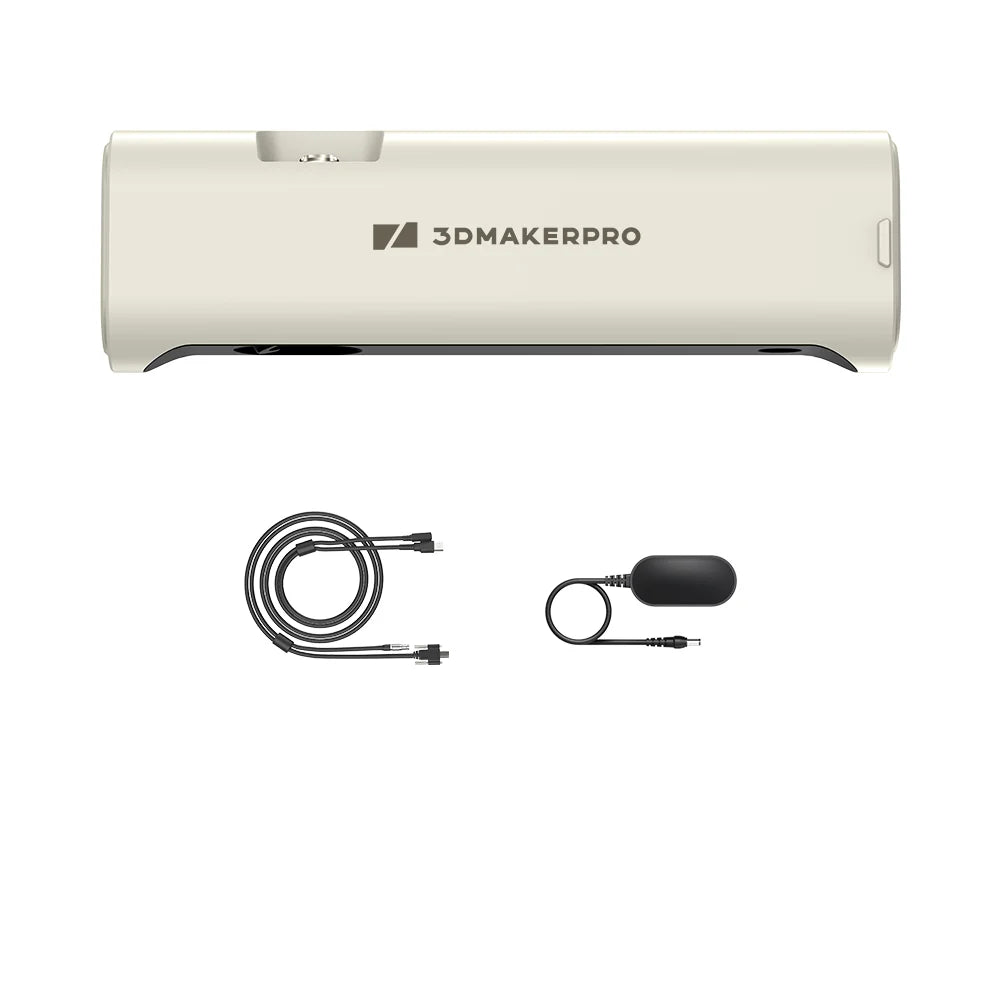

Lynx 3D Scanner by 3DMakerpro
- VENDOR: 3DMakerpro
- TYPE: 3D Scanner
Shipping calculated at checkout.
· UP TO 0.10MM ACCURACY
· LARGE SCANNING RANGE
· IDEAL FOR 100-2000MM OBJECTS
· USER-FRIENDLY SOFTWARE
Capture Larger Objects
Lynx's Single Capture Range is 250×400mm, which is 200% larger than traditional mid-format scanners. With Lynx, you can scan objects up to 5000x5000x5000mm, a whopping 3700% improvement!
Smooth Scanning Experience
Lynx enables smooth scanning of large objects with an optical stabilizer and advanced visual tracking, minimizing the probability of misalignment without markers.
Faithful Object Reproduction
With 0.10mm accuracy and 0.30mm resolution, Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.
Creativity Unleashed in Every Scan

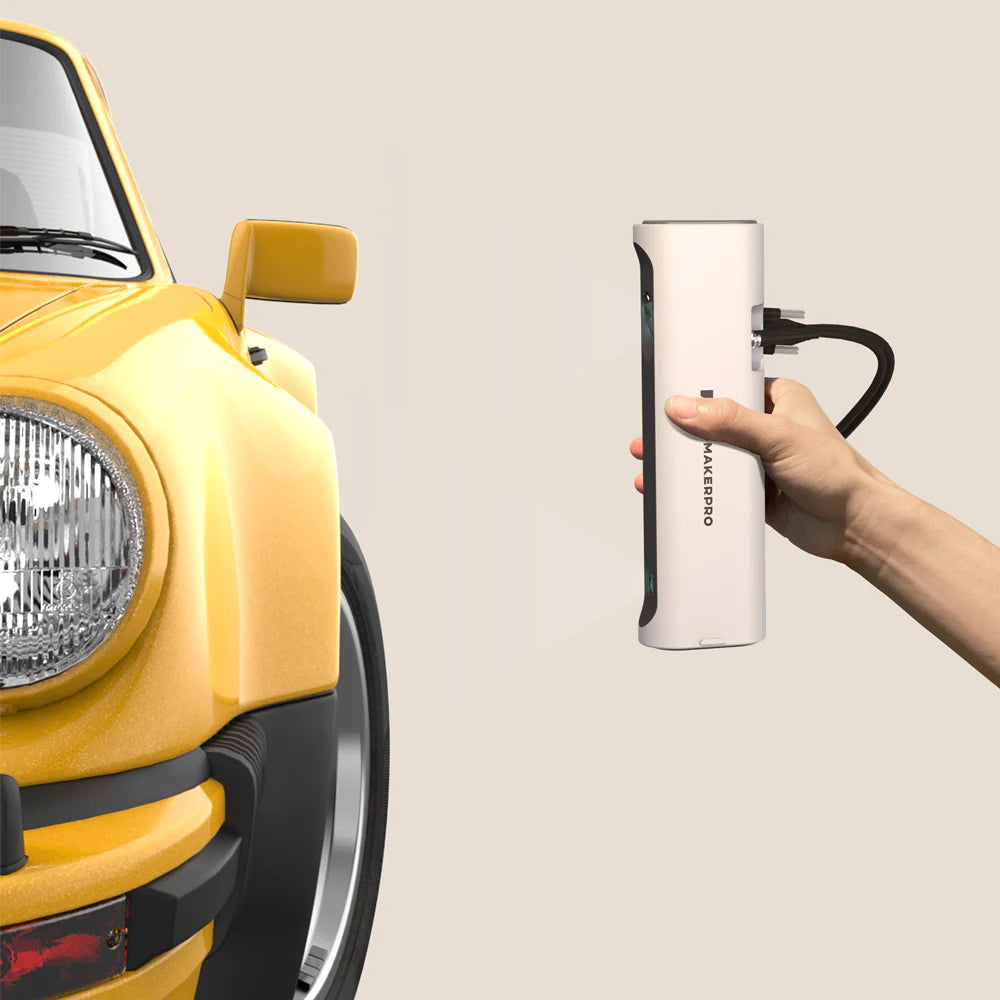

With Lynx, scanning medium to large objects such as human bodies, furniture, automotive parts, and sculptures is a breeze. In just minutes, you can capture complete and detailed models that showcase every intricacy.
Fast Scan Result Presentation
Experience lightning-fast scanning speed with up to 2,000,000 points captured per second.

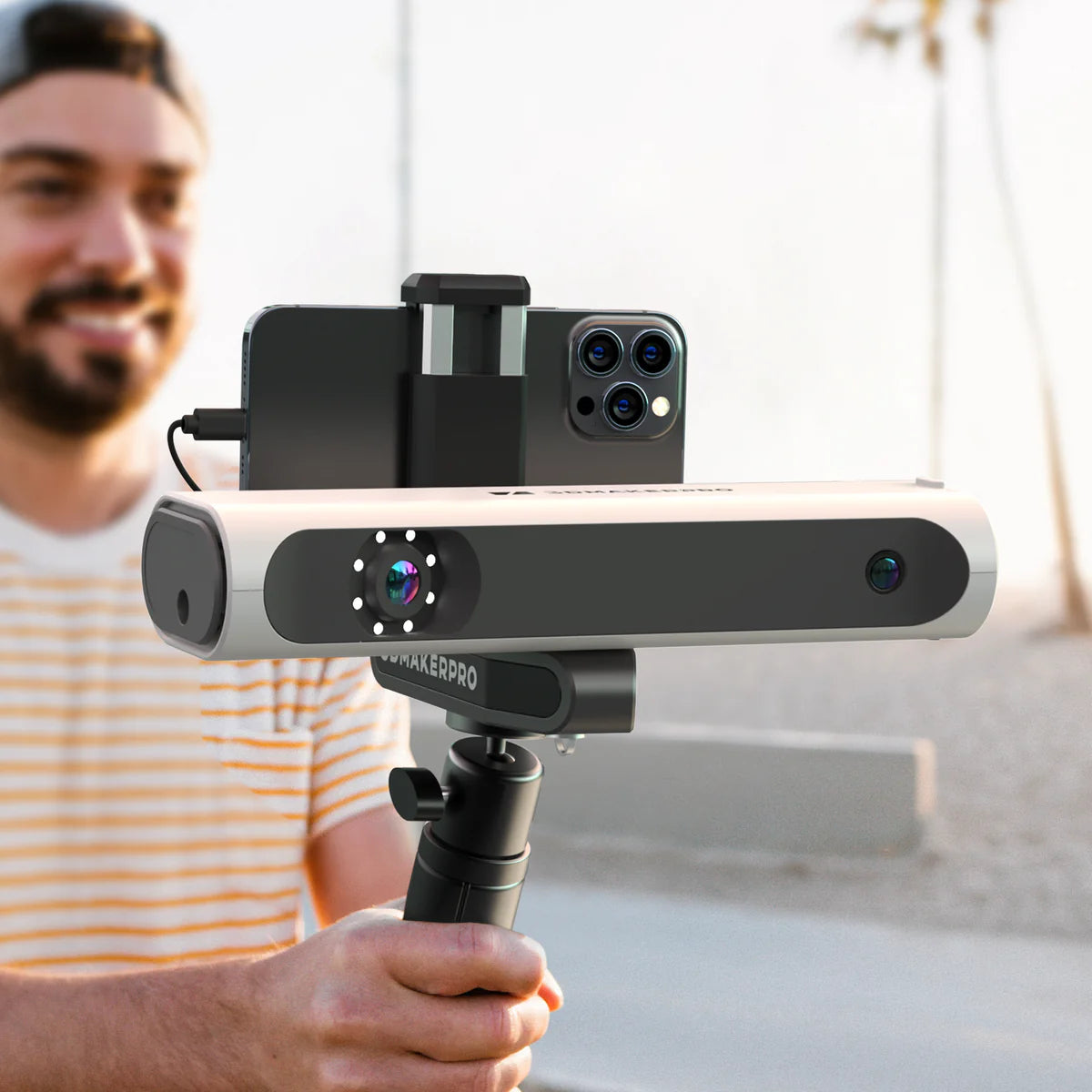

Optional Mobile Scanning
With the Connect accessory, Lynx can be connected to your phone for on-the-go scanning.
Automatic Model Generation
Greatly enhance the ease of scanning with efficient software algorithms, while keeping the PC hardware requirements low.
Software Designed for Scanning
JMStudio is a free scanning software exclusively for 3DMakerpro. It supports Windows, MacOS, as well as iOS and Android devices.
Tip: For connectivity with iOS and Android, the Connect accessory > is required.
Tech Specs
Lynx 3D Scanner
Scan Performance Parameters:
- Accuracy: 0.10mm
- Resolution: 0.30mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 400-900mm
- Single capture range: 250 x 400mm
- Typical object sizes: 100-2000mm
Software System Requirements:
- Output format: OBJ/STL/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Hardware Parameters:
- Light source: NIR
- Color texture: Extended support
- USB interface: USB2.0
- Dimensions: 244x75x48mm
- Weight: 800g
