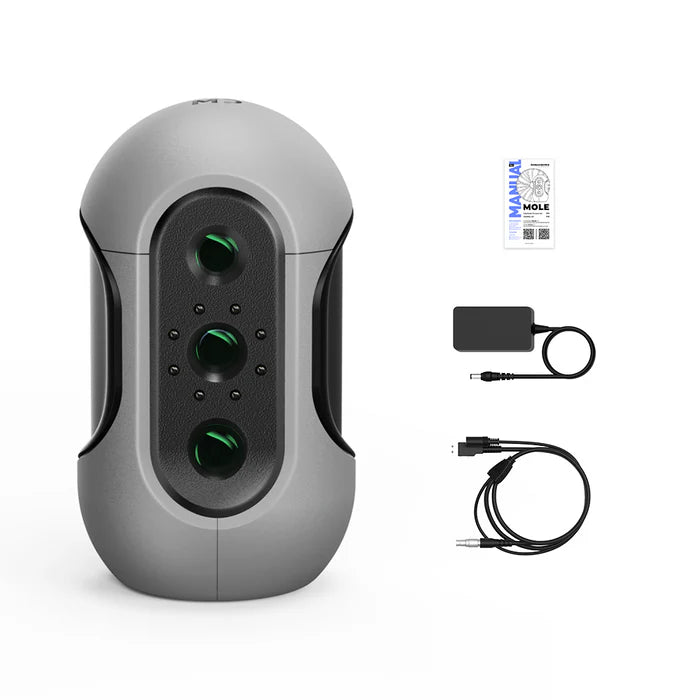

Mole 3D Scanner by 3DMakerpro
- VENDOR: 3DMakerpro
- TYPE: 3D Scanner
Shipping calculated at checkout.
A Cumulation of Hardware and Software
Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.
0.05mm Accuracy, 0.1mm Resolution
With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.
Ultra-Clear Texture Mode
Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.

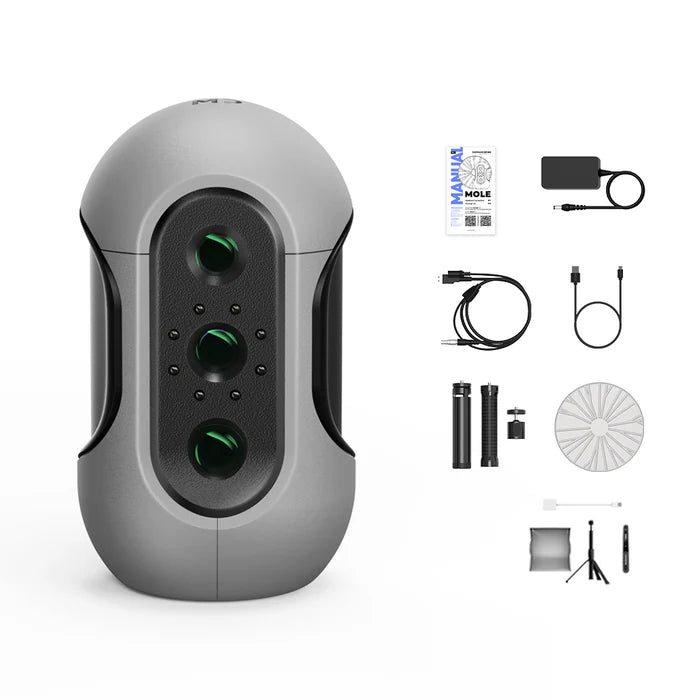

Tips: Color models require the color kit (included in luxury combo).
Incredible scan success rate
Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.
Visual tracking
Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.
Optical anti-shake modules
Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.
Made for Scanning
Android | iOS

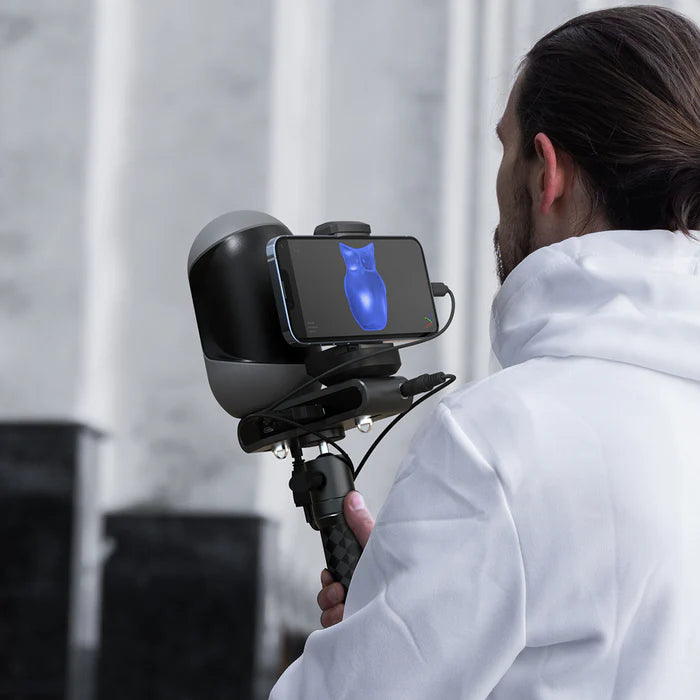

JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.
Windows | MacOS
JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.
Scan Performance Parameters:
- Accuracy: 0.05mm
- Resolution: 0.1mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 150-400mm
- Single capture range: 200x100mm
- Typical object sizes: 15-1500mm
Hardware Parameters:
- Light source: NIR
- Color texture: Extended support
- USB interface: USB2.0
- Dimensions: 141x80x80mm
- Weight: 390g
Software System Requirements:
- Output format:OBJ/STL/PLY
- Compatible system: Windows10/11 64bit, MacOS12/13
- Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
