Bambu High Temperature Plate

No reviews

Size: A1/P1/X1 Series
Style: Textured PEI Plate
Price:
Sale price$49.99 CAD

Shipping calculated at checkout

Description

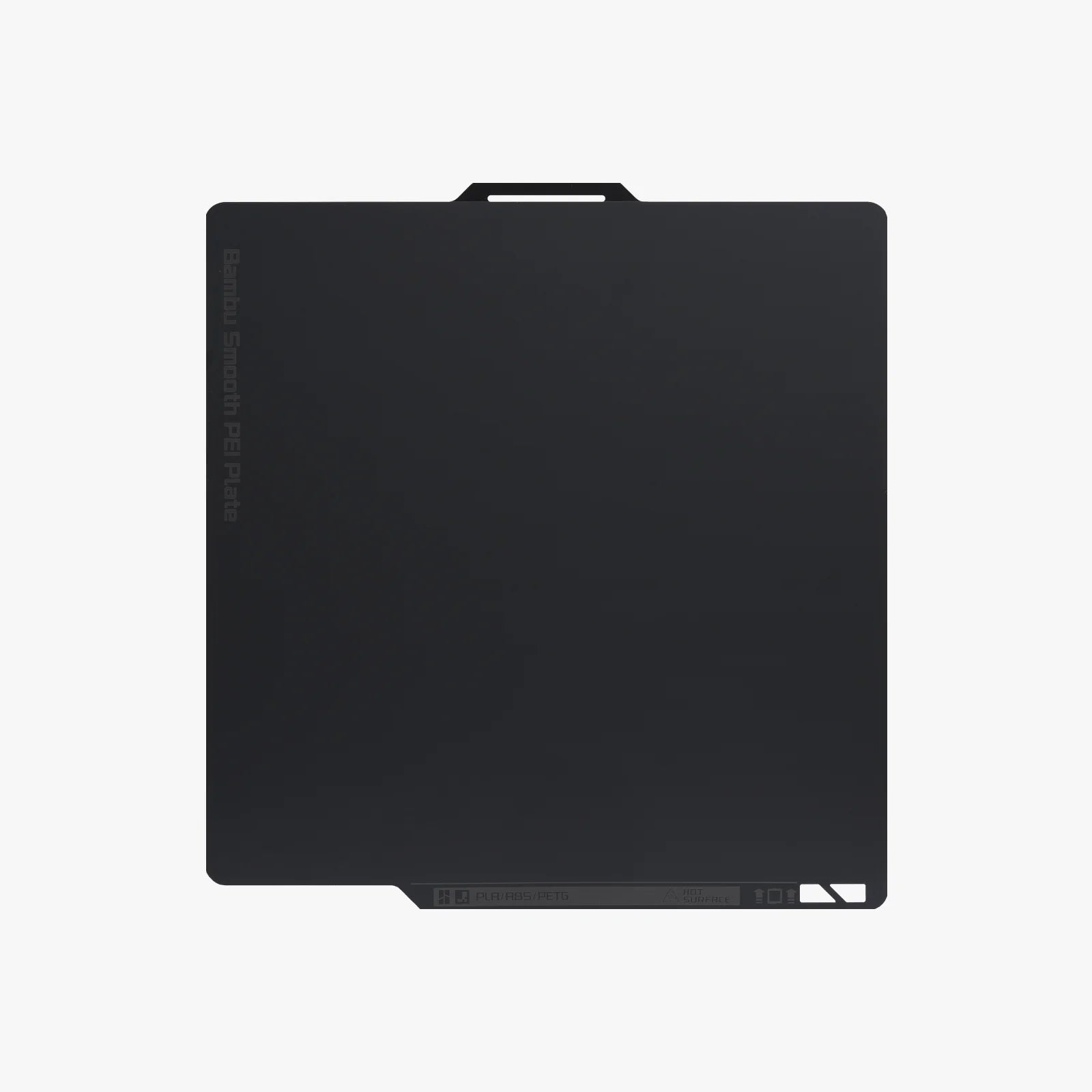

Bambu High Temperature Plate (Smooth PEI)

One side: Bambu High-Temperature Plate = High-Temp sheet + Bambu Engineering Plate

The other side: Bambu Engineering Plate

1.Bambu High-Temperature Plate

Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

Material Heatbed Temperature Glue Stick Required? Upper Glass Cover Plate Removed?
PLA/PLA-CF/PLA-GF 45~65℃ No Yes
PETG/PETG-CF 60~80℃ Yes No
ABS 90~100℃ Recommended No
ASA 90~100℃ Recommended No
TPU 35~45℃ Recommended Yes
PVA 45~60℃ Recommended Yes
PC/PC-CF 100~110℃ Yes No
PA/PA-CF/PAHT-CF 100~110℃ Yes No
PET-CF 80~100℃ Yes No

Benefits

Works best with most 3D printing filaments

Works well with the Automatic Calibration for Flow rate and does not interfere with the LIDAR

Smooth texture on the surface of the print

Excellent adhesion and easy print removal

Can be replaced by the user

Downsides

It cannot be used without heating the printing surface

Can be more fragile compared to the Engineering Plate or Textured PEI Plate

The upper glass cover plate, or the front glass door need to be opened for filaments with a low glass transition temperature

2. Bambu Engineering Plate

Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

Material Heatbed Temperature Glue Stick Required? Upper Glass Cover Plate Removed?
TPU 30~35℃ Recommended No
PETG/PETF-CF 70~80℃ Recommended Yes
PET-CF 70~80℃ Recommended Yes
ABS 100~110℃ Yes No
PC/PC-CF 100~110℃ Yes No
PA/PA-CF/PATH-CF 100~110℃ Yes No



Product Specification

Material
Smooth PEI sheet + Spring steel + Engineering Coating
Surface temperature resistance
Up to 120℃
Flexible spring steel thickness
0.4 mm
High-temp Plate sticker thickness
0.03 mm
Usable print size
256*256 mm
Package size
290*290*4 mm
Package weight
450 g
Color
Black


Considerations

  • Variations in the color and luster of the Engineering Plate appearance and the removal of the exposed metal areas are just minor adjustments to optimize the production process and surface quality. If the coating remains on the nozzle when the nozzle is wiped, it will be heated and melted before printing the model. Such changes do not affect leveling, Lidar, adhesion, or range of use. You can purchase with confidence!

  • Before auto-leveling, it is necessary to repeatedly rub the nozzle in the special wiping area of the build plate to completely remove any residual material at the tip of the nozzle. The coating in the special-designed wiping area will gradually become worn over time. This is normal and does not affect print quality or nozzle lifetime, so there is no need to worry about any quality issues.

  • Bambu Lab recommends only using Bambu Lab official glue on the Cool Plate, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.

  • Regularly clean the print surface with dish soap and hot water to eliminate any dust or grease residue, which might cause bad adhesion. IPA can also work, but the best solution to clean the plate is washing it, to ensure the best performance.

  • Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.

  • The High-temp smooth PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
