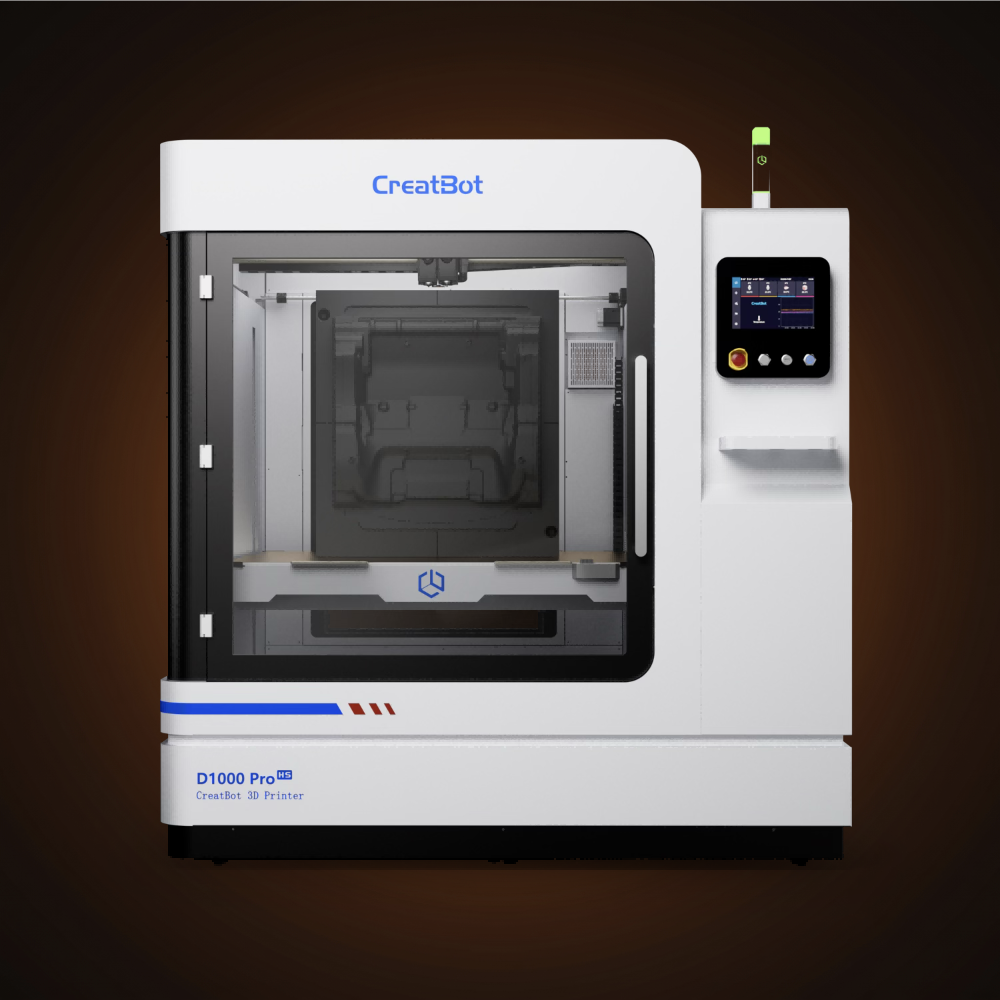

CreatBot D1000 Pro HS
- VENDOR: CreatBot
Quad-Z Auto-LevelingThe D1000 Pro HS represents the ultimate evolution in large-format 3D printing, delivering significant advances in usability, stability, and safety. This new high-speed version achieves a stable printing speed of 300 mm/s and is engineered to produce large, full-size parts, prototypes, tools, and molds in-house with unprecedented efficiency.
Featuring a massive build volume of 1050×1050×1050 mm, it handles big projects with ease. Compatible with large 2×5 kg spools of materials such as PLA, ABS, ASA, PET-CF, PA-CF, and PPS-CF, it enables continuous, uninterrupted printing of large-scale models. Every component is manufactured to the highest standards, ensuring reliable and consistent performance.
The First Layer Defines Print Quality
Equipped with automatic mesh bed leveling, our large-format 3D printers ensure an ultra-smooth and uniform first layer across the entire expansive platform for flawless printing results.
Full-Auto Dual-Nozzle XYZ Offset Calibration
- XY via HD Macro Camera
- Fully-Auto AI Visual Recognition
- 0.02mm Accuracy
Z via Dual Photoelectric Sensor Full-Auto Multiple Positioning
0.005mm Accuracy
Eddy Current Bed Leveling 0.001mm Precision
Revolutionizing Large-Scale Print Platform Calibration
The eddy current leveling system solves critical challenges in calibrating large build plates. Utilizing high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001mm improving precision by 99% compared to traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.
Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds—reducing leveling time by 80% and significantly improving printing efficiency.
Auto-Raising Dual Extruders | 420℃
Flow Rate: 90 mm³/s
Heating to 400°C: 2 Mins
Thermostat Accuracy: ±0.15 °C
The D1000 Pro HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hotend temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.
Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.
Automatic Dual Nozzle Shutter
This innovative system features a precision mechanical shutter that automatically closes over the nozzle of the idle extruder the moment it lifts away. By creating a physical seal, it effectively prevents oozing and cross-contamination between materials, ensuring flawless multi-material and multi-color prints. It's the key to achieving pristine quality and reliability in every layer.
Scale Without Limits for High-Strength Prototypes
The CreatBot D1000 Pro HS was created to make industrial 3D printing of large-scale objects and prototypes as easy as possible. It is embedded with many advanced technologies for ultra-large, impressive prints. It will undoubtedly be your best choice if you are looking for a large-scale industrial 3D printer for prototyping with engineering-grade materials.
If you are tired of PLA's fragility and ABS's warping, try our revolutionary material, UltraPA-CF. By printing your large models with a large-diameter nozzle, you will get an oversized model with high strength of 80 MPa and heat resistance up to 150°C within days. It is the best choice for your prototype verification.
Active Heated Chamber | 80℃
The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 80C. This is crucial for preventing the shrinkage and deformation of large engineering materials.
Reduces Thermal Stress & Warping
When printing large or high-strength engineering materials (e.g., ABS), uneven cooling causes internal thermal stress, leading to warping, delamination, or cracking.
Improves Interlayer Bonding
In low-temperature environments, excessive temperature differences between molten and solidified layers weaken adhesion. A controlled heated chamber maintains an optimal layer temperature, enhancing molecular diffusion and strengthening interlayer bonding.
Minimizes Moisture Impact
The heated chamber minimizes the impact of ambient humidity on hygroscopic filaments (e.g., Nylon), preventing bubbles or strength loss caused by moisture absorption during printing.
Ensures Process Consistency
For industrial production, chamber temperature stability is critical for part-to-part uniformity. Active temperature control eliminates environmental variability, guaranteeing reliable repeatability.
Safety Door Protection System
Enterprise-Compliant Secure Printing Solution
This safety-certified door-monitoring system halts printing operations immediately upon detecting door access, ensuring full compliance with enterprise safety protocols. The industrial-grade interlock mechanism prevents unauthorized operation exposure, eliminates mechanical hazards, and maintains full process accountability with encrypted operation logs.
Outage Restore & Filament Detection & Backup Mode
The printer automatically memorizes the current position and saves print data when power is interrupted. Upon restart, it resumes printing from the exact point of interruption, eliminating the need to restart entire prints and saving valuable time and material costs.
The printer also prevents failed prints by pausing and alerting you when the filament runs out, allowing you to replace the spool and continue printing without losing progress.
Backup Mode: If the filament in the main nozzle (No. 1) is exhausted, the printer automatically switches to the secondary nozzle (No. 2) to continue printing, ensuring uninterrupted production even during filament changes.
Magnetic Suction Platform
Proprietary magnetic platform, large, easily removable, and heat-resistant over 100°C, and won’t demagnetize over time.
For oversized models, it is easy to detach them quickly and the bottom of the model is flat. Convenient to all operators.
Linear Rail and Servo Motors
When it reaches 1000 mm+ in length, small rails have big deflection. The D1000 Pro HS uses heavy-duty linear rails and servo motors to ensure smooth and precise movement even at high speeds without compromising the precision and reliability required for massive prints.
True External Air Cooling
Medical-Grade Cooling Pump
Ultra-Quiet & Reliable: Equipped with a medical-grade pump, it delivers powerful, constant air pressure with minimal noise. Engineered for 24/7 operation, it ensures a quiet, stable workflow in professional environments.
Print Head Thermal Protection
Reliable thermal defense for the print head against high chamber temperature during operation. Targeted cooling avoids heat-related failures for consistent precision and long service life.
True Air Model Cooling
Flawless High-Speed Printing: Directs fresh external air to solidify material instantly. This 'cross-flow' cooling prevents sagging and stringing in heated chambers, delivering perfect overhangs and superior surface finish.
Filament Dry Room
Our 3D printer features an integrated filament drying compartment, which maintains a controllable temperature environment of 0-70°C. Designed to prevent moisture absorption in hygroscopic materials such as nylon, PC, PA-CF, PET-CF, It eliminates printing defects like bubbling and stringing, ensuring consistent, high-quality output throughout the printing process.
Independent Quad-Z Axis
Quad-Z Auto-Leveling
Eliminate Manual Leveling for Absolute Flatness: The independent four-motor drive allows for individual height compensation at each corner of the platform. The system automatically detects and fine-tunes the vertical height of every corner to ensure extreme parallelism between the build plate and the gantry, completely solving first-layer adhesion issues for large-scale prints.
Superior Load Capacity & Stability
Rock-Solid Support for Heavy Industrial Parts: Large-scale models can weigh up to hundreds of kilograms. The four motors work in perfect synchronization to support and lift heavy loads smoothly. Even during high-speed (HS) printing, the platform remains rock-steady, eliminating layer lines caused by platform micro-vibrations.
Anti-Tilt & Torque Correction
Uniform Precision Across the 1000mm Span: The independent motors actively lock the platform's status in real-time. Regardless of the print head's position, the four support points provide equal counterforce to prevent physical tilting or mechanical twisting, ensuring consistent dimensional accuracy across every inch of the 1000mm wide build area.
Superior Layer Consistency
Injection-Molding Surface Quality: By distributing power evenly through four high-subdivision stepper motors, Z-axis travel becomes smoother and more refined. This effectively eliminates periodic layer banding caused by mechanical transmission errors, giving large industrial parts a flawless surface texture comparable to injection molding.
Ultra Air Filter System / 99.995% Adsorption
Our advanced air purification system employs a dual-filter design: an initial HEPA filter captures fine particles, while an activated carbon filter absorbs volatile organic compounds (VOCs) and odors. This ensures a clean and safe printing environment, protecting both the operator and the printed parts from harmful emissions.
WIFI, LAN, Internet, APP Control
In addition to cloud connectivity, CreatBot also supports local area network mode and physical connection operation. You can control the printer, send sliced files, and update firmware without an internet connection.
Camera Control Technology
Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.
D1000 Pro HS Highlights
1050*1050*1050mm Build Volume
High Resolution & Speed
Camera Control Technology
Reliable 24/7
Fully Enclosed
Exceptional Stability
The precision-engineered steel monocoque construction ensures exceptional machine stability, minimizing vibration and maintaining consistent print quality even during high-speed, long-duration printing sessions. This robust design guarantees reliable performance for industrial-scale production.
Material Types Supported by PEEK 3D Printers
Creatbot 3D printers have strong adaptability and stability for various filaments. Relying on hardware advantages (all-steel body, precise linear guides, adjustable-temperature nozzle/chamber, etc.), they can perfectly match all plastic 3D printing filaments, achieving optimal filament printing results and aligning with their material characteristics.
High Performance Materials
| Material | Key Features | Applications |
|---|---|---|
| PEEK | Ultra-high strength, 250°C+ temperature resistant, chemical corrosion resistant | Aerospace, medical implants, automotive |
| PEEK-CF | Extremely high rigidity, lightweight, fatigue resistant | High-load structural parts |
| PEEK-GF | High strength, excellent dimensional stability | Industrial parts |
| PEI 1010 | High temperature resistant, sterilizable, eco-friendly | Medical, food contact parts |
| PEI 9085 | Flame retardant (UL94 V0), high strength, heat resistant | Aerospace, rail transportation |
Standard Materials
| Material | Key Features | Applications |
|---|---|---|
| PLA | Easy to print, biodegradable, low cost | Creative products, education, simple prototypes |
| PLA-CF | Carbon fiber reinforced, high rigidity, lightweight | Brackets, model frames, simple tooling |
| PETG | Balanced, impact resistant, semi-transparent | Electronic enclosures, daily containers, transparent parts |
| TPU 95A | Hard elastic, wear-resistant, bendable | Seals, wearable devices, soft parts |
| PC | High transparency, high strength, high temperature resistant | Protective shells, car lamp covers, high temperature fixtures |
Engineering Materials
| Material | Key Features | Applications |
|---|---|---|
| ABS | High strength, machinable, impact resistant | Car interiors, tooling fixtures, functional prototypes |
| ASA | Weather resistant, UV resistant, better than ABS | Outdoor sculptures, car exteriors, billboards |
| PVDF | Corrosion resistant, flame retardant, insulating, high temperature resistant | Chemical pipelines, semiconductor parts, anti-corrosion structures |
| UltraPA | High toughness, wear-resistant, self-lubricating | Gears, bearings, mechanical transmission parts |
| UltraPA-CF | Carbon fiber reinforced, high rigidity, lightweight | Drones, automotive lightweight, high strength tooling |
| UltraPA-GF | Glass fiber reinforced, insulating, low cost | Insulating brackets, high temperature fixtures, electronic enclosures |
| PET-CF | Carbon fiber modified, low moisture absorption, dimensionally stable | Mechanical brackets, car parts, industrial load-bearing parts |
| PPS-CF | High temperature resistant, corrosion resistant, extremely dimensionally stable | Motor housings, chemical parts, engine peripherals |
Support Materials
| Material | Key Features | Applications |
|---|---|---|
| PVA | Water soluble, no residue | Compatible with PLA, PETG |
| S-270 | Industrial grade, high temperature resistant | Compatible with Nylon, PC |
| S-350 | High temperature dedicated, high stability | Compatible with PEEK, PEI |
Specs
Printing
| Build Volume | Single Extrusion: 300*300*400 mm Dual Extrusion: 240*300*400 mm |
|---|---|
| Filament Diameter | 1.75mm |
| Number of Nozzles | Dual Extruder |
| Nozzle Diameter | 0.4mm (0.3~1.0mm optional) |
| Filament Compatibility | Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF, Carbon Fiber, PA-ABS, PC-ABS, PP-GF, PP-CF; High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM), PA-GF, PA-CF; Ultra-performance material: PEEK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc. |
Temperature
| Max. Nozzle Temperature | 420 ℃ |
|---|---|
| Max. Bed Temperature | 120 ℃ |
| Hot Chamber Temperature | 80 ℃ |
| Filament Dry Room Temperature | 0 ℃/70 ℃ |
Speed
| Max Print Speed | 600 mm/s |
|---|---|
| Flow Rate | 90 mm³/s |
Software
| Software | CreatWare, Orca Slicer, Cura, Simplify3D,Prusa, etc |
|---|---|
| Supported File Types | Gcode, STL, 3MF, OBJ, AMF, STP, STEP |
| Operating Systems | Windows ALL / Mac OS |
Electrical
| Power Requirements | 220~240 V, 50~60 Hz |
|---|---|
| Display | 10-inch full color touch screen independent operating system (multi-language) |
| Rated Power | Printer: 6000W, Chamber: 6000W |
| File Transfer | USB/U disk / WiFi / LAN |
Special Function
| Air filter | HEPA+Carbon |
|---|---|
| Filament Detection | Pause Printing |
| Firmware | Klipper - High Speed |
| Camera Control | Camera Remote Monitoring |
| Dual Nozzle Shutter | Yes |
| Bed Leveling Technology | Eddy Current Leveling |
| XY Offset Technology | HD Camera Dual Nozzle Offset |
| Z Offset Technology | Dual Photoelectric Sensor |
| Nozzle Shutter Technology | Dual nozzle shutter |
| Door Opening Detection | Safety Door Lock |
| Chamber Insulation | Internal Insulation Cotton |
| External Air Cooling | Yes |
Mechanical
| Build Plate | Aviation Aluminum Plates |
|---|---|
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Auto-Raising Extruders | Yes |
| X/Y Positioning Precision | 0.00375 mm |
| Z Positioning Precision | 0.00156 mm |
| Z-Axis Structure | Independent Quad-Z Axis |
Size & Weight
| Product Dimensions & Weight | 1870 x 1430 x 1940mm 675kg |
|---|---|
| Packing Size & Weight | 2010 x 1560 x 2180mm 892kg |
