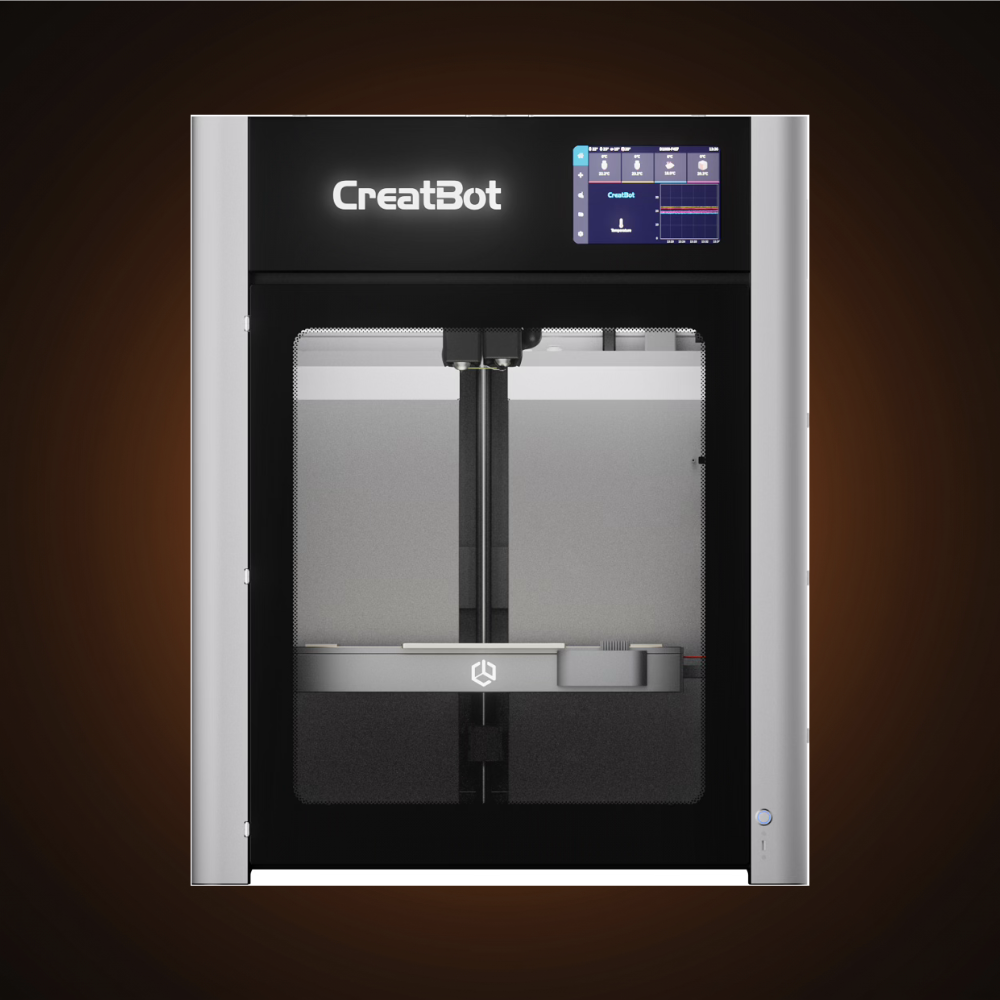

CreatBot D400 HS
- VENDOR: CreatBot
The all-new D400 HS is a next-generation high-speed 3D printer tailored for professional desktop applications. Developed on the identical platform as the world’s best-selling D600 Pro3 HS, it fully inherits its mature and robust core technologies. Adopting an industrially proven structural architecture validated by long-term market verification, the unit is powered by deeply optimized Klipper firmware and equipped with a high-performance high-flow hotend that delivers a peak volumetric flow of 90mm³/s. Matched with a precisely tuned and reinforced motion system, it achieves a stable printing speed of 300mm/s. Its core hardware specifications, dynamic performance parameters, and material compatibility fully match the standards of flagship industrial-grade printers.
The First Layer Defines Print Quality
Equipped with automatic mesh bed leveling, our large-format 3D printers ensure an ultra-smooth and uniform first layer across the entire expansive platform for flawless printing results.
Full-Auto Dual-Nozzle XYZ Offset Calibration
- XY via HD Macro Camera
- Fully-Auto AI Visual Recognition
- 0.02mm Accuracy
Z via Dual Photoelectric Sensor • Full-Auto Multiple Positioning
0.005mm Accuracy
Eddy Current Bed Leveling 0.001mm Precision
Revolutionizing Large-Scale Print Platform Calibration
The eddy current levelling system solves critical challenges in calibrating large build plates. Using high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001 mm, improving precision by 99% over traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.
Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds—reducing leveling time by 80% and significantly improving printing efficiency.
Auto-Raising Dual Extruders • 420℃
Flow Rate: 90 mm³/s
Heating to 400°C: 2 Mins
Thermostat Accuracy: ±0.15 °C
The D400 HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hotend temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.
Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.
Dual Nozzle Shutter
Auto-switch to backup nozzle on filament runout.
Active Heated Chamber • 70℃
The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 80C. This is crucial for preventing the shrinkage and deformation of large engineering materials.
Reduces Thermal Stress & Warping
When printing large or high-strength engineering materials (e.g., ABS), uneven cooling causes internal thermal stress, leading to warping, delamination, or cracking.
Improves Interlayer Bonding
In low-temperature environments, excessive temperature differences between molten and solidified layers weaken adhesion. A controlled heated chamber maintains an optimal layer temperature, enhancing molecular diffusion and strengthening interlayer bonding.
Minimizes Moisture Impact
The heated chamber minimizes the impact of ambient humidity on hygroscopic filaments (e.g., Nylon), preventing bubbles or strength loss caused by moisture absorption during printing.
Ensures Process Consistency
For industrial production, chamber temperature stability is critical for part-to-part uniformity. Active temperature control eliminates environmental variability, guaranteeing reliable repeatability.
Safety Door Protection System
Enterprise-Compliant Secure Printing Solution
This safety-certified door-monitoring system halts printing operations immediately upon detecting door access, ensuring full compliance with enterprise safety protocols. The industrial-grade interlock mechanism prevents unauthorized operation exposure, eliminates mechanical hazards, and maintains full process accountability with encrypted operation logs.
Outage Restore & Filament Detection & Backup Mode
The printer automatically memorizes the current position and saves print data when power is interrupted. Upon restart, it resumes printing from the exact point of interruption, eliminating the need to restart entire prints and saving valuable time and material costs.
The printer also prevents failed prints by pausing and alerting you when the filament runs out, allowing you to replace the spool and continue printing without losing progress.
Backup Mode: If the filament in the main nozzle (No. 1) is exhausted, the printer automatically switches to the secondary nozzle (No. 2) to continue printing, ensuring uninterrupted production even during filament changes.
Magnetic Suction Platform
Proprietary magnetic platform, large, easily removable, and heat-resistant over 100°C, and won’t demagnetize over time.
For oversized models, it is easy to detach them quickly, and the models' bottoms are flat. Convenient for all operators.
True External Air Cooling
Medical-Grade Cooling Pump
Ultra-Quiet & Reliable: Equipped with a medical-grade pump, it delivers powerful, constant air pressure with minimal noise. Engineered for 24/7 operation, it ensures a quiet, stable workflow in professional environments.
Print Head Thermal Protection
Reliable thermal defense for the print head against high chamber temperature during operation. Targeted cooling avoids heat-related failures for consistent precision and long service life.
True Air Model Cooling
Flawless High-Speed Printing: Directs fresh external air to solidify material instantly. This 'cross-flow' cooling prevents sagging and stringing in heated chambers, delivering perfect overhangs and superior surface finish.
Ultra Air Filter System / 99.995% Adsorption
Our advanced air purification system employs a dual-filter design: an initial HEPA filter captures fine particles, while an activated carbon filter absorbs volatile organic compounds (VOCs) and odours. This ensures a clean and safe printing environment, protecting both the operator and the printed parts from harmful emissions.
WIFI, LAN, Internet, APP Control
In addition to cloud connectivity, CreatBot also supports local area network mode and physical connection operation. You can control the printer, send sliced files, and update firmware without an internet connection.
Camera Control Technology
Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.
Material Types Supported by PEEK 3D Printers
Creatbot 3D printers have strong adaptability and stability for various filaments. Relying on hardware advantages (all-steel body, precise linear guides, adjustable-temperature nozzle/chamber, etc.), they can perfectly match all plastic 3D printing filaments, achieving optimal filament printing results and aligning with their material characteristics.
High Performance Materials
| Material | Key Features | Applications |
|---|---|---|
| PEEK | Ultra-high strength, 250°C+ temperature resistant, chemical corrosion resistant | Aerospace, medical implants, automotive |
| PEEK-CF | Extremely high rigidity, lightweight, fatigue resistant | High-load structural parts |
| PEEK-GF | High strength, excellent dimensional stability | Industrial parts |
| PEI 1010 | High temperature resistant, sterilizable, eco-friendly | Medical, food contact parts |
| PEI 9085 | Flame retardant (UL94 V0), high strength, heat resistant | Aerospace, rail transportation |
Standard Materials
| Material | Key Features | Applications |
|---|---|---|
| PLA | Easy to print, biodegradable, low cost | Creative products, education, simple prototypes |
| PLA-CF | Carbon fiber reinforced, high rigidity, lightweight | Brackets, model frames, simple tooling |
| PETG | Balanced, impact resistant, semi-transparent | Electronic enclosures, daily containers, transparent parts |
| TPU 95A | Hard elastic, wear-resistant, bendable | Seals, wearable devices, soft parts |
| PC | High transparency, high strength, high temperature resistant | Protective shells, car lamp covers, high temperature fixtures |
Engineering Materials
| Material | Key Features | Applications |
|---|---|---|
| ABS | High strength, machinable, impact resistant | Car interiors, tooling fixtures, functional prototypes |
| ASA | Weather resistant, UV resistant, better than ABS | Outdoor sculptures, car exteriors, billboards |
| PVDF | Corrosion resistant, flame retardant, insulating, high temperature resistant | Chemical pipelines, semiconductor parts, anti-corrosion structures |
| UltraPA | High toughness, wear-resistant, self-lubricating | Gears, bearings, mechanical transmission parts |
| UltraPA-CF | Carbon fiber reinforced, high rigidity, lightweight | Drones, automotive lightweight, high strength tooling |
| UltraPA-GF | Glass fiber reinforced, insulating, low cost | Insulating brackets, high temperature fixtures, electronic enclosures |
| PET-CF | Carbon fiber modified, low moisture absorption, dimensionally stable | Mechanical brackets, car parts, industrial load-bearing parts |
| PPS-CF | High temperature resistant, corrosion resistant, extremely dimensionally stable | Motor housings, chemical parts, engine peripherals |
Support Materials
| Material | Key Features | Applications |
|---|---|---|
| PVA | Water soluble, no residue | Compatible with PLA, PETG |
| S-270 | Industrial grade, high temperature resistant | Compatible with Nylon, PC |
| S-350 | High temperature dedicated, high stability | Compatible with PEEK, PEI |
Specs
Printing
| Print Technology | FDM/FFF |
|---|---|
| Build Volume | Single Extrusion: 420 x 400 x 420mm Dual Extrusion: 365 x 400 x 420mm |
| Number of Nozzles | Double |
| Auto Rising Extruders | Yes |
| Layer Resolution | 0.05 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, etc, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF |
| Nozzle Diameter | 0.6mm (0.3, 0.4, 0.6, 0.8, 1.0mm) Optional |
Temperature
| Max. Nozzle Temperature | 420 ℃ |
|---|---|
| Max. Bed Temperature | 120 ℃ |
| Hot Chamber Temperature | 70 ℃ |
Speed
| Max Print Speed | 600 mm/s |
|---|---|
| Flow Rate | 90 mm³/s |
Electrical
| Power Requirements | 100~120 V | 210-240V |
|---|---|
| Display | 7 inch touch screen |
| Rated Power | 100-120V 2700W | 210-240V 3200W |
| File Transfer | USB/U disk / WiFi / LAN |
Software
| Software | CreatWare, Orca Slicer, Cura, Simplify3D, Prusa, etc |
|---|---|
| Supported File Types | Gcode, STL, 3MF, OBJ, AMF, STP, STEP |
| Operating Systems | Windows ALL / Mac OS |
Special Function
| Air filter | HEPA+Carbon |
|---|---|
| Filament Detection | Pause Printing |
| Firmware | Klipper - High Speed |
| Camera Control | Camera Remote Monitoring |
| Bed Leveling Technology | Eddy Current Leveling |
| XY Offset Technology | HD Camera Dual Nozzle Offset |
| Z Offset Technology | Dual Photoelectric Sensor |
| Nozzle Shutter Technology | Dual nozzle shutter |
| Door Opening Detection | Yes |
| External Air Cooling | Yes |
Mechanical
| Build Plate | Aviation Aluminum Plates + Removable magnetic sheet |
|---|---|
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Auto-Raising Extruders | Yes |
| X/Y Positioning Precision | 0.00375 mm |
| Z Positioning Precision | 0.00156 mm |
Size & Weight
| Product Dimensions & Weight | 785 x 700 x 985mm 110kg |
|---|---|
| Packing Size & Weight | 830 x 760 x 1090mm 140kg |
