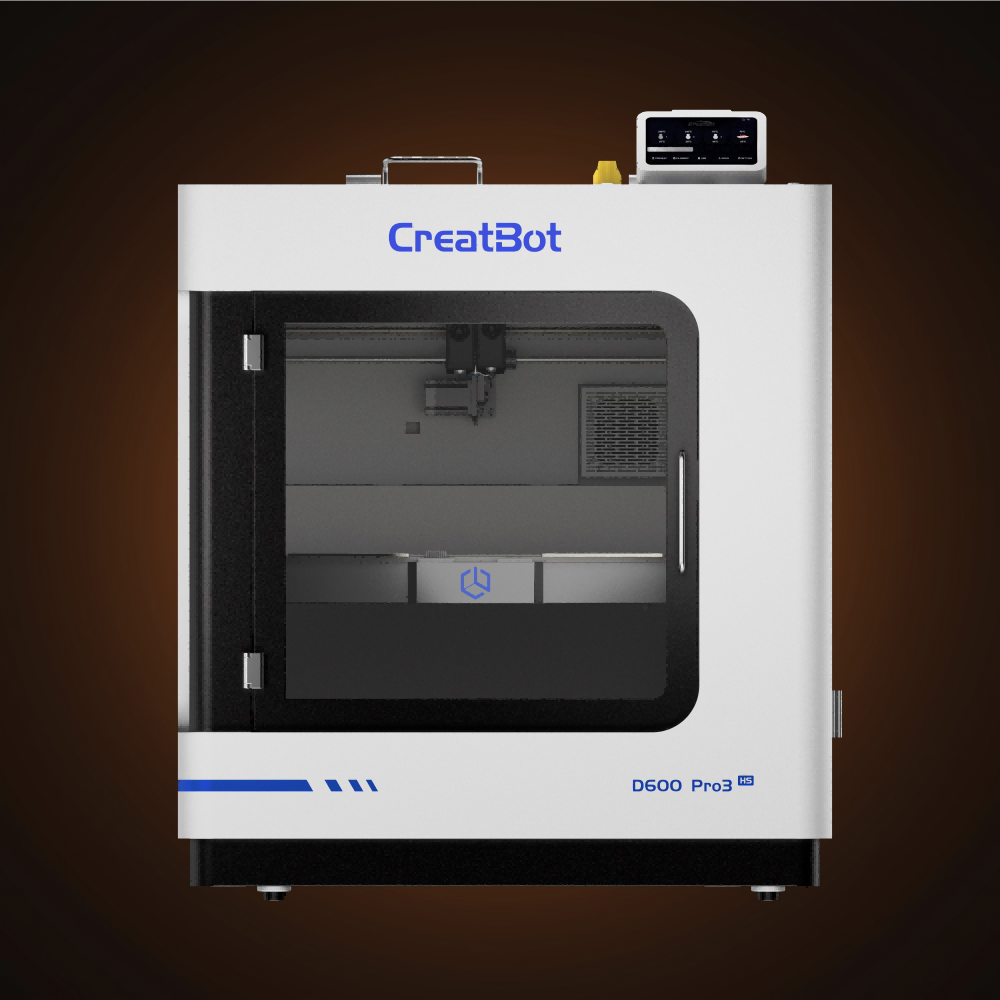

CreatBot D600 Pro3 HS
- VENDOR: CreatBot
D600 Pro series has been proven to be the world's most popular professional large-size 3D printer. It has undergone 6 years of market accumulation and verification. Since its launch, we have continuously upgraded and improved the D600 Pro based on user needs and feedback. So far, we have made approximately 30 improvements in product details, incorporating new technologies and fixing issues. It has become a very stable, professional, large-size 3D printer, deeply preferred by small and medium-sized enterprises.
The D600 Pro 3 HS is a fully upgraded, high-speed printing version of the D600 Pro, featuring deeply optimized Klipper firmware for revolutionary performance gains. Equipped with a newly designed high-performance hotend capable of ultra-fast extrusion up to 90mm³/s and an enhanced motion system, it achieves stable printing speeds of 600mm/s, five times faster than the standard D600 Pro. This industrial-grade machine, purpose-built for high-speed printing, combines cutting-edge engineering design with advanced technological capabilities, redefining the speed benchmark for professional 3D printing.
It has been professionally designed, has powerful performance, and features no shortcomings. Large print volume, faster speed, stronger material compatibility, simpler operating procedures, and more
Full-Auto Dual-Nozzle XYZ Offset Calibration
- XY via HD Macro Camera
- Fully-Auto AI Visual Recognition
- 0.02mm Accuracy
Z via Dual Photoelectric Sensor • Full-Auto Multiple Positioning
0.005mm Accuracy
Eddy Current Bed Leveling 0.001mm Precision
Revolutionizing Large-Scale Print Platform Calibration
The eddy current levelling system solves critical challenges in calibrating large build plates. Using high-frequency electromagnetic sensing technology, it achieves an ultra-high probing accuracy of 0.001 mm, improving precision by 99% over traditional methods. This ensures perfect first-layer adhesion and guarantees printing success even with oversized models.
Featuring a non-contact, zero-wear sensor design, the system performs continuous scanning without interruption, completing bed calibration in just 60 seconds, reducing leveling time by 80% and significantly improving printing efficiency.
Auto-Raising Dual Extruders • 420℃
Flow Rate: 90 mm³/s
Heating to 400°C: 2 Mins
Thermostat Accuracy: ±0.15 °C
The D600 Pro3 HS features a next-gen smart auto-raising dual-extruder kit, capable of reaching hotend temperatures up to 420 °C. The hotend can be quickly swapped for different nozzle sizes.
Enhanced with the upgraded Dual Nozzle Shutter technology, it delivers flawless printing with different support materials. Combined with a topologically optimized lightweight design, the printhead enables even higher printing speeds and greater motion agility.
Automatic Dual Nozzle Shutter
This innovative system features a precision mechanical shutter that automatically closes over the nozzle of the idle extruder the moment it lifts away. By creating a physical seal, it effectively prevents oozing and cross-contamination between materials, ensuring flawless multi-material and multi-color prints. It's the key to achieving pristine quality and reliability in every layer.
Active Heated Chamber • 80℃
The design employs a double-layer insulation cotton layer, allowing the cavity temperature to be raised to 80°C. This is crucial for preventing the shrinkage and deformation of large engineering materials.
Reduces Thermal Stress & Warping
When printing large or high-strength engineering materials (e.g., ABS), uneven cooling causes internal thermal stress, leading to warping, delamination, or cracking.
Improves Interlayer Bonding
In low-temperature environments, excessive temperature differences between molten and solidified layers weaken adhesion. A controlled heated chamber maintains an optimal layer temperature, enhancing molecular diffusion and strengthening interlayer bonding.
Minimizes Moisture Impact
The heated chamber minimizes the impact of ambient humidity on hygroscopic filaments (e.g., Nylon), preventing bubbles or strength loss caused by moisture absorption during printing.
Ensures Process Consistency
For industrial production, chamber temperature stability is critical for part-to-part uniformity. Active temperature control eliminates environmental variability, guaranteeing reliable repeatability.
Safety Door Protection System
Enterprise-Compliant Secure Printing Solution
This safety-certified door-monitoring system halts printing operations immediately upon detecting door access, ensuring full compliance with enterprise safety protocols. The industrial-grade interlock mechanism prevents unauthorized operation exposure, eliminates mechanical hazards, and maintains full process accountability with encrypted operation logs.
Outage Restore & Filament Detection & Backup Mode
The printer automatically memorizes the current position and saves print data when power is interrupted. Upon restart, it resumes printing from the exact point of interruption, eliminating the need to restart entire prints and saving valuable time and material costs.
The printer also prevents failed prints by pausing and alerting you when the filament runs out, allowing you to replace the spool and continue printing without losing progress.
Backup Mode: If the filament in the main nozzle (No. 1) is exhausted, the printer automatically switches to the secondary nozzle (No. 2) to continue printing, ensuring uninterrupted production even during filament changes.
Magnetic Suction Platform
Proprietary magnetic platform, large, easily removable, and heat-resistant over 100°C, and won’t demagnetize over time.
For oversized models, it is easy to detach them quickly, and the models' bottoms are flat. Convenient for all operators.
Linear Rail and Servo Motors
The D600 Pro3 HS uses heavy-duty linear rails and servo motors to ensure smooth and precise movement even at high speeds without compromising the precision and reliability required for massive prints.
True External Air Cooling
Medical-Grade Cooling Pump
Ultra-Quiet & Reliable: Equipped with a medical-grade pump, it delivers powerful, constant air pressure with minimal noise. Engineered for 24/7 operation, it ensures a quiet, stable workflow in professional environments.
Print Head Thermal Protection
Reliable thermal defense for the print head against high chamber temperature during operation. Targeted cooling avoids heat-related failures for consistent precision and long service life.
True Air Model Cooling
Flawless High-Speed Printing: Directs fresh external air to solidify material instantly. This 'cross-flow' cooling prevents sagging and stringing in heated chambers, delivering perfect overhangs and superior surface finish.
Filament Dry Room
Our 3D printer features an integrated filament drying compartment, which maintains a controllable temperature environment of 0-70°C. Designed to prevent moisture absorption in hygroscopic materials such as nylon, PC, PA-CF, PET-CF, It eliminates printing defects like bubbling and stringing, ensuring consistent, high-quality output throughout the printing process.
Independent Quad-Z Axis
Quad-Z Auto-Leveling
Eliminate Manual Leveling for Absolute Flatness: The independent four-motor drive allows for individual height compensation at each corner of the platform. The system automatically detects and fine-tunes the vertical height of every corner to ensure extreme parallelism between the build plate and the gantry, completely solving first-layer adhesion issues for large-scale prints.
Superior Load Capacity & Stability
Rock-Solid Support for Heavy Industrial Parts: Large-scale models can weigh up to hundreds of kilograms. The four motors work in perfect synchronization to support and lift heavy loads smoothly. Even during high-speed (HS) printing, the platform remains rock-steady, eliminating layer lines caused by platform micro-vibrations.
Anti-Tilt & Torque Correction
The independent motors actively lock the platform's status in real-time. Regardless of the print head's position, the four support points provide equal counterforce to prevent physical tilting or mechanical twisting, ensuring consistent dimensional accuracy across every inch of the build area.
Superior Layer Consistency
Injection-Molding Surface Quality: By distributing power evenly through four high-subdivision stepper motors, Z-axis travel becomes smoother and more refined. This effectively eliminates periodic layer banding caused by mechanical transmission errors, giving large industrial parts a flawless surface texture comparable to injection molding.
Ultra Air Filter System / 99.995% Adsorption
Our advanced air purification system employs a dual-filter design: an initial HEPA filter captures fine particles, while an activated carbon filter absorbs volatile organic compounds (VOCs) and odours. This ensures a clean and safe printing environment, protecting both the operator and the printed parts from harmful emissions.
WIFI, LAN, Internet, APP Control
In addition to cloud connectivity, CreatBot also supports local area network mode and physical connection operation. You can control the printer, send sliced files, and update firmware without an internet connection.
Camera Control Technology
Camera control technology allows customers to control the printing process on speed, pause, temp., etc., with an APP remotely, achieving the best printing quality in the shortest time without failure. A very useful feature for large models and long-time printing.
Specs
Printing
| Print Technology | FDM |
|---|---|
| Build Volume | Single extrusion: 620 x 620 x 620mm Dual extrusion: 565 x 620 x 620mm |
| Number of Nozzles | Double |
| Auto rising extruders | Yes |
| Min layer height | 0.05mm |
| Filament Diameter | 1.75mm |
| Filament Compatibility | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF |
| Nozzle Diameter | 0.6mm (0.3, 0.4, 0.6, 0.8, 1.0mm) |
Temperature
| Max. Nozzle Temperature | 420°C |
|---|---|
| Max. Bed Temperature | 120°C |
| Max. Chamber Temperature | 80°C |
| Filaments Drying Temperature | 0-70°C (Timed) |
Speed
| Max Print speed | 600 mm/s |
|---|---|
| Flow Rate | 90 mm³/s |
Electrical
| Power Requirements | 240V, 50-60Hz |
|---|---|
| 110V Version | 220V input only, no 110V version |
| Rated Power | Printer: 2500W, Chamber: 3000W |
| Screen | 7 inch touch screen |
| Connectivity | USB/U disk/WiFi/LAN |
Software
| Software Bundle | CreatWare, OrcaSlicer, Cura, Slic3r |
|---|---|
| Supported File Types | Gcode, STL, 3MF, OBJ, AMF, STP, STEP |
| Operating Systems | Windows ALL / Mac OS |
Special Function
| Air filter | HEPA+Carbon |
|---|---|
| Filament Detection | Pause Printing |
| Firmware | Klipper - High Speed |
| Camera Control | Camera Remote Monitoring |
| Dual Nozzle Shutter | Yes |
| Bed Leveling Technology | Eddy Current Leveling |
| XY Offset Technology | HD Camera Dual Nozzle Offset |
| Z Offset Technology | Dual Photoelectric Sensor |
| Nozzle Shutter Technology | Dual nozzle shutter |
| Door Opening Detection | Safety Door Lock |
| Chamber Insulation | Internal Insulation Cotton |
| External Air Cooling | Yes |
Mechanical
| Build Plate | Aviation Aluminum Plates |
|---|---|
| Build Plate Leveling | Automatic |
| Extruder | Smart Dual Extruders |
| Auto-Raising Extruders | Yes |
| X/Y Positioning Precision | 0.00375 mm |
| Z Positioning Precision | 0.00156 mm |
| Z-Axis Structure | Independent Quad-Z Axis |
Size & Weight
| Product Dimensions & Weight | 1150 x 950 x 1250mm 250kg |
|---|---|
| Packing Size & Weight | 1175 x 1015 x 1405mm 290kg |
What's in the box
- Power cord x 2
- Glue stick x 2
- Scraper x 1
- Tweezers x 1
- Nozzle cleaning needle x 2 (35 mm and 200 mm)
- Wrenches: 5.5 x 7, 8 x 10 and M13, one of each
- Flathead and Phillips screwdrivers, one of each
- 0.1 mm feeler gauge x 1
- Heater cartridge 6 x 40, 80 W x 1
- Temperature sensor PT1000 x 1
- Pressure arm kit x 1
- Carbon steel nozzles 0.4, 0.6, 0.8 and 1.0 mm, one of each
- TMC5160 driver x 2
- Feeder gear lubricant x 2
- Door handle x 2 (top door and front door)
- Rotating handle M10 x 80 x 4
- Filament: PLA 1 kg and PLA-CF 3 kg
- Screw pack with silicone plugs x 1
- Fuse x 2
- USB flash drive x 1
- External filament rack parts x 1 set
- Hex key set (1.5 to 6.0 mm) x 1
- Antenna x 1
- User guide x 1
A 0.4 mm nozzle comes installed on the printer.
All CreatBot printers come with a 12 month warranty from delivery. Nozzles and hot ends are covered for 6 months.
