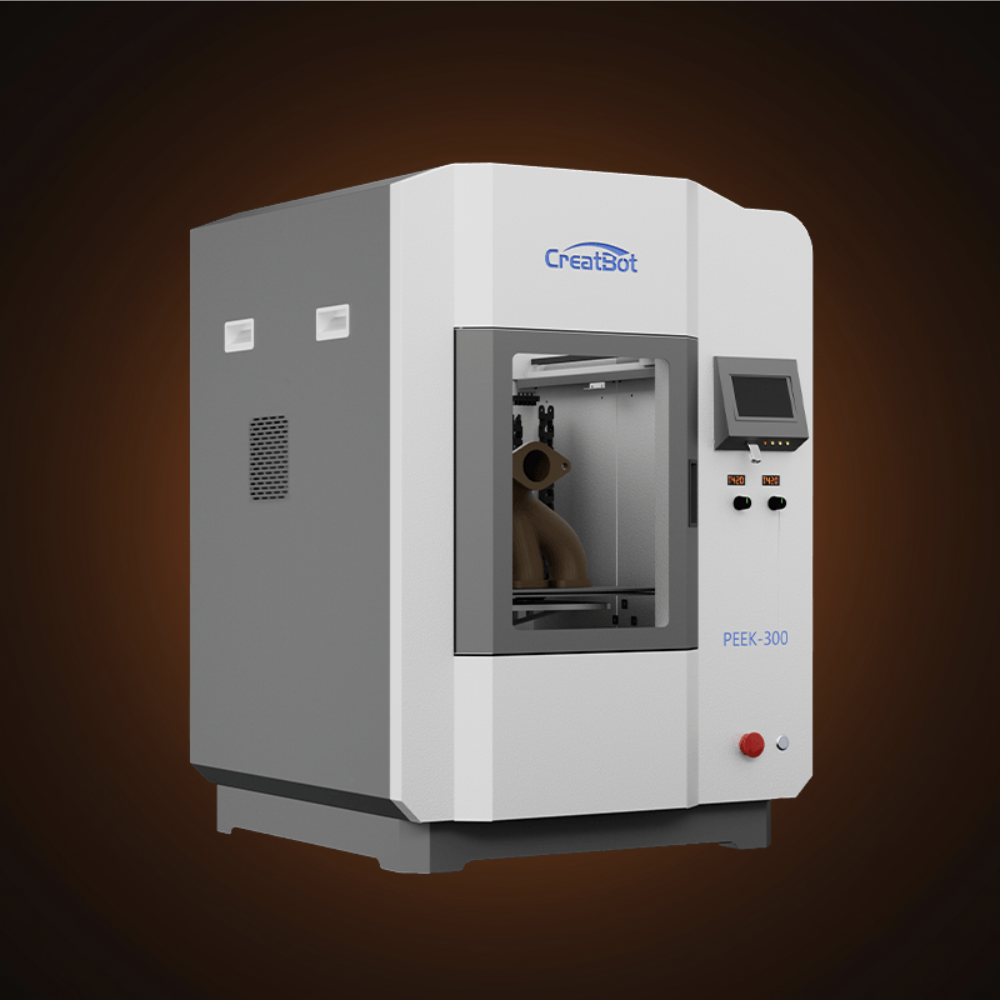

CreatBot PEEK-300

Meet the CreatBot PEEK-300, an industrial-grade powerhouse engineered to bring high-performance polymer manufacturing directly to your workspace. Designed to flawlessly handle advanced engineering materials, it features a 480°C auto-rising dual extrusion system alongside a 120°C heated chamber. At its core is the patented Direct Annealing System (DAS), which instantly crystallizes parts during the printing process to eliminate warping and cracking without the need for secondary oven treatments. Backed by an advanced water-cooling system and triple-layer heat insulation, the PEEK-300 delivers medical and aerospace-grade structural integrity right off the 200°C heated build plate.

Direct Annealing System

Direct Annealing System (DAS), the world's first and extraordinary technology by CreatBot.The annealing process is instant and controllable during printing. It aims to provide the best quality parts in one time without warping and cracking printing of big-sized functional materials. (The technology is patent-protected and available by CreatBot only)DAS annealing process features :

1. Instantaneously: Finished during the printing process, no need for secondary treatment in the oven.
2. Completely: The annealing process points to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in the oven.
3. Controllable: The surrounding temperature can be adjusted to 0-200 °C. The different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

Smart Auto-rising dual extruders 480 ℃

The PEEK-300 is equipped with the CreatBot's new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature is up to 480°C. You can print any 3D printer material in the world. We can say it is the best choice of polymer materials.

Hotbed 200 ℃

Common but necessary.The base of printing big models with no warping.

Hot Chamber 120°C

The high-temperature chamber ensures that high-performance materials do not crack or deform during printing, releasing stress and enabling instant annealing.

Cooling System

The Cooling system is one of the important components of the overall thermal system. It is made of (1) liquid cooling. Circulating liquid can be used effectively for a long time. (2) Air pump cooling. An air pump provides cold air from outside instead of hot air inside the chamber.

Material Types Supported by PEEK 3D Printers

Creatbot 3D printers have strong adaptability and stability for various filaments. Relying on hardware advantages (all-steel body, precise linear guides, adjustable-temperature nozzle/chamber, etc.), they can perfectly match all plastic 3D printing filaments, achieving optimal filament printing results and aligning with their material characteristics.

High Performance Materials

Material	Key Features	Applications
PEEK	Ultra-high strength, 250°C+ temperature resistant, chemical corrosion resistant	Aerospace, medical implants, automotive
PEEK-CF	Extremely high rigidity, lightweight, fatigue resistant	High-load structural parts
PEEK-GF	High strength, excellent dimensional stability	Industrial parts
PEI 1010	High temperature resistant, sterilizable, eco-friendly	Medical, food contact parts
PEI 9085	Flame retardant (UL94 V0), high strength, heat resistant	Aerospace, rail transportation

Standard Materials

Material	Key Features	Applications
PLA	Easy to print, biodegradable, low cost	Creative products, education, simple prototypes
PLA-CF	Carbon fiber reinforced, high rigidity, lightweight	Brackets, model frames, simple tooling
PETG	Balanced, impact resistant, semi-transparent	Electronic enclosures, daily containers, transparent parts
TPU 95A	Hard elastic, wear-resistant, bendable	Seals, wearable devices, soft parts
PC	High transparency, high strength, high temperature resistant	Protective shells, car lamp covers, high temperature fixtures

Engineering Materials

Material	Key Features	Applications
ABS	High strength, machinable, impact resistant	Car interiors, tooling fixtures, functional prototypes
ASA	Weather resistant, UV resistant, better than ABS	Outdoor sculptures, car exteriors, billboards
PVDF	Corrosion resistant, flame retardant, insulating, high temperature resistant	Chemical pipelines, semiconductor parts, anti-corrosion structures
UltraPA	High toughness, wear-resistant, self-lubricating	Gears, bearings, mechanical transmission parts
UltraPA-CF	Carbon fiber reinforced, high rigidity, lightweight	Drones, automotive lightweight, high strength tooling
UltraPA-GF	Glass fiber reinforced, insulating, low cost	Insulating brackets, high temperature fixtures, electronic enclosures
PET-CF	Carbon fiber modified, low moisture absorption, dimensionally stable	Mechanical brackets, car parts, industrial load-bearing parts
PPS-CF	High temperature resistant, corrosion resistant, extremely dimensionally stable	Motor housings, chemical parts, engine peripherals

Support Materials

Material	Key Features	Applications
PVA	Water soluble, no residue	Compatible with PLA, PETG
S-270	Industrial grade, high temperature resistant	Compatible with Nylon, PC
S-350	High temperature dedicated, high stability	Compatible with PEEK, PEI

Specs

Printing

Build Volume	Single Extrusion: 300*300*400 mm Dual Extrusion: 240*300*400 mm
Filament Diameter	1.75mm
Number of Nozzles	Dual Extruder
Nozzle Diameter	0.4mm (0.3~1.0mm optional)
Filament Compatibility	Engineering Plastics: PLA, ABS, ASA, PC, Nylon, PETG, PVDF, Carbon Fiber, PA-ABS, PC-ABS, PP-GF, PP-CF; High temperature Material: UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM), PA-GF, PA-CF; Ultra-performance material: PEEK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Speed

Best Printing speed	55 mm/s
Max. Printing speed	180 mm/s

Electrical

Input Power	200V~240V
Rated Power	4600W
Screen	4.3'' full color touch screen, multi-language
Print Method	USB Connectivity/USB Disk

Mechanical

Cooling	Air pump cooling & water cooling
Platform	Aluminum platform with PEI coating
Positioning Precision	X Y axis 0.0127mm, Z axis 0.00125mm
Extruder	Direct Drive Extruder
Machine Construction	All metal construction
Bed Leveling	Auto bed leveling

Temperature

Nozzle Max. Temperature	480℃
Chamber Temperature	120℃
Platform Max. Temperature	200℃
Direct Annealing Temperature	0~400℃

Software

Software	Creatware, Simplify3D, Cura, Slic3r
Operating Systems	Windowsall, macOS
Print File Type	Gcode, STL, 3MF, OBJ, AMF, STP, STEP

Special Function

Outage Restored	Save data when power is off
Filament Detection	Pause printing when filament run out
Direct Annealing System (DAS)	Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
Heat insulation	Triple heat insulation
Emergency stop switch	Support emergency stopes
High temperature accessories	High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.

Size & Weight

Machine Size	720*700*941.5mm
N.W	110 kg
Packing Size	820*720*1080mm
G.W	145 kg
