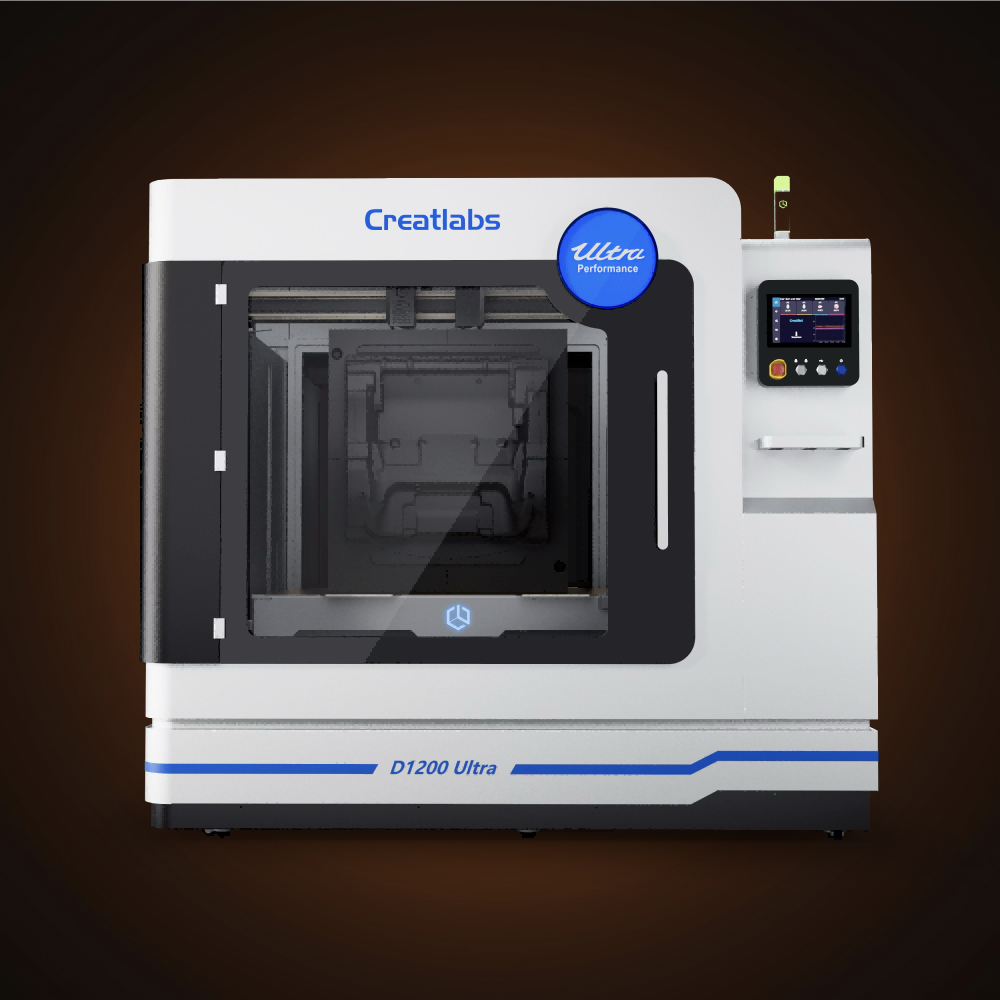

CreatBot D1200 Ultra
- VENDOR: CreatBot
The D1200 Ultra prints big, strong parts fast enough for real production runs. Mag-Lev linear motors move the print head at up to 1100 mm/s and hold ±0.05 mm per 100 mm, so parts come off ready to assemble. It gives you a 1200 × 1050 × 1050 mm build volume, an 80°C heated chamber and independent dual extruders, all built for 24/7 work.
The D1200 Ultra is part of Creatlabs, the high-end industrial brand from CreatBot. It is built on the Creatlabs FFF 2.0 system to take you from prototypes to small batches and serial production. Its extra-large build space lets you print big parts in one piece or nest batches of small parts and print them in a single run.

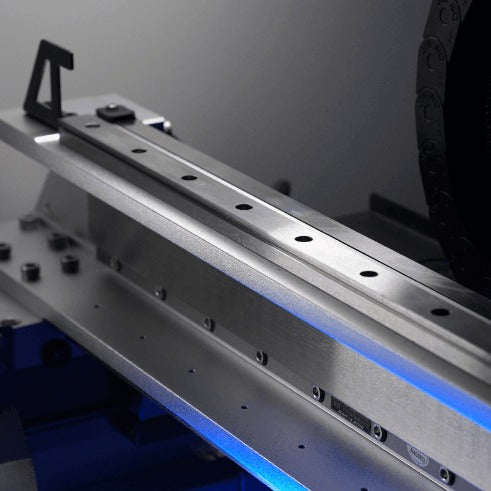

Mag-Lev Linear Motors
Belt and screw drives lose speed and accuracy to friction. The Ultra uses direct-drive linear motors instead, so there is no transmission friction. You get faster moves, more exact motion, smoother surfaces and more output per day.
- Max print speed: 1100 mm/s
- Acceleration: 10000 mm/s²
- X/Y positioning accuracy: 0.001 mm
Precision That Lasts
Printing accuracy is ±0.05 mm per 100 mm. Automatic calibration and real-time compensation keep that accuracy steady over years of production. It is built for a decade of reliable manufacturing.

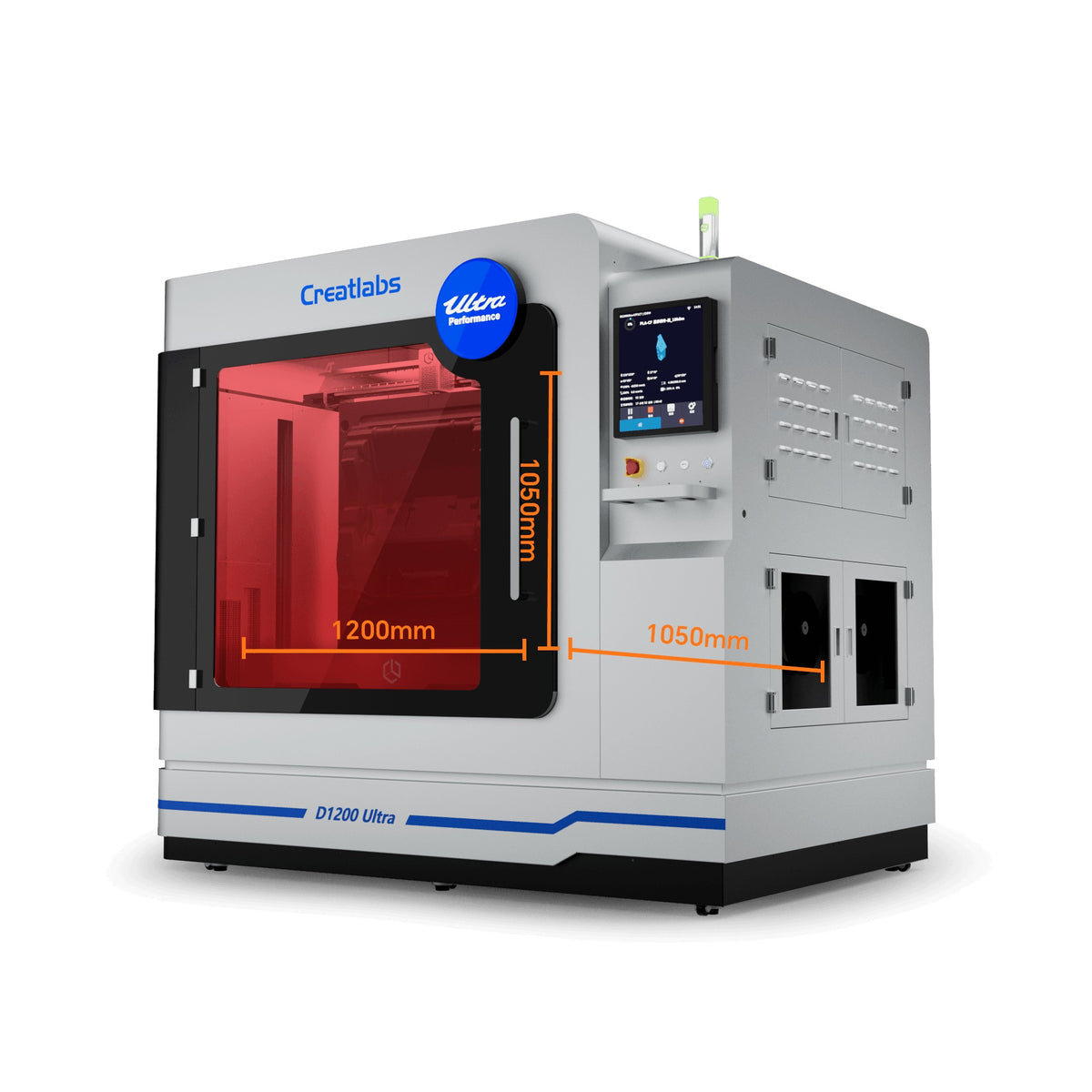

Large Build Volume and 80°C Heated Chamber
The 1200 × 1050 × 1050 mm build volume prints large parts in one piece. The 80°C active heated chamber keeps the heat steady, which helps engineering plastics like ABS and ASA print well.

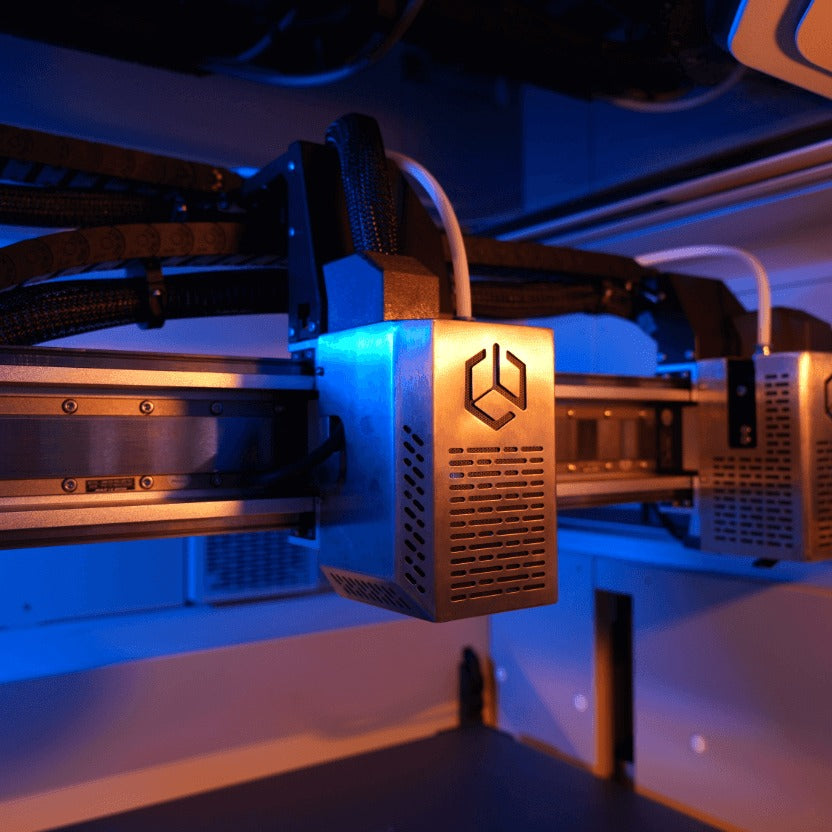

High-Flow Extruder System
The hotend pushes up to 90 mm³/s and reaches 420°C. It fully melts every filament at high speed for strong layer bonding.
IDEX Independent Dual Extruders
Two independent extruders give you three ways to print:
- Single mode: one extruder uses the full 1200 × 1050 × 1050 mm build volume.
- Dual-nozzle support mode: print support material, like PVA, apart from the main material (1200 × 1050 × 1050 mm).
- Mirror duplication mode: both extruders print matching parts at the same time for double the output (600 × 1050 × 1050 mm).
Full-Auto Dual-Nozzle XYZ Offset Calibration
- XY via HD macro camera with AI visual recognition, 0.02 mm accuracy
- Z via snap-action switch with full-auto multiple positioning, 0.005 mm accuracy
Eddy Current Bed Leveling • 0.001 mm Precision
High-frequency electromagnetic sensing probes the big build plate to 0.001 mm for a perfect first layer. The sensor never touches the plate, so it never wears out. It scans without stopping and levels the bed in about 60 seconds.
Daily Output
Daily output is the weight of material the printer can lay down in 24 hours. The Ultra prints about 1 to 2 kg a day with a 0.4 mm nozzle and 2 to 5 kg a day with a 0.8 mm nozzle. Real results depend on the part shape and infill.
Batch Consistency
Run many printers on the same job, or print different parts of a kit on different machines. The parts stay precise and fit together when you assemble them.
Built for 24/7 Production
Filament run-out and clog detection, dual-nozzle auto resume, three-layer chamber insulation, auto material feeding and eddy current leveling keep the printer running around the clock.
Equipment Safety System
- Schneider electrical protection system
- Safety door interlock
- Emergency stop
- Thermal protection
- Motion safety
- Physical Wi-Fi switch
Printer Cluster Management System
See every printer in one place: online, printing, idle, paused or error. It tracks nozzle, bed and chamber temperatures live, lets you watch prints through the built-in camera, logs print history and filament use, and sends alerts with remote maintenance. It is made for shops running many machines.
Air Filtration
A compact HEPA and activated carbon filter is built in. For bigger shops, the AIR-200 industrial air filtration system is sold separately and works with the full range of CreatBot and Creatlabs industrial printers.
Global Service
CreatBot offers remote diagnosis, local shipping, on-site service, installation and training, and on-site maintenance.
Who It Is For
Makers of their own products in automotive, robotics, home appliances, medical devices, aerospace, high-end equipment, electronics and new energy. It also suits service shops that offer rapid prototyping, CNC machining, injection molding, 3D printing and on-demand production.
- Product prototyping
- Functional testing
- Assembly testing
- Custom parts
- Low-volume production
- Tooling and fixtures
Specs
Printing
| Printing Technology | FDM/FFF |
|---|---|
| Build Volume | Single-nozzle mode: 1200×1050×1050mm Dual-nozzle support mode: 1200×1050×1050mm Mirror duplication mode: 600×1050×1050mm |
| Nozzle Count | Dual |
| Dual-Nozzle Mode | Independent dual extruder (IDEX) |
| Printing Accuracy | ±0.05mm (per 100mm) |
| Filament Diameter | 1.75mm |
| Filament Compatibility | PLA, ABS, ASA, PP, PETG, PC, Nylon, TPU, ABS-CF, PC-CF, PET-CF, PET-GF, UltraPA-CF, PPS-CF, PA-GF, PA-CF, PA-ABS, PC-ABS, PP-GF, PP-CF, etc. |
| Nozzle Diameter | 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm optional) |
Temperature
| Nozzle Temperature | 420 ℃ |
|---|---|
| Heated Bed Temperature | 120 ℃ |
| Chamber Temperature | 80 ℃ |
| Filament Drying Chamber Temperature | 70 ℃ |
Speed
| Max Printing Speed | 1100 mm/s |
|---|---|
| Hotend Flow Rate | 90 mm³/s |
| Acceleration | 10000 mm/s² |
| Daily Output | 1-2kg (with 0.4mm nozzle) 2-5kg (with 0.8mm nozzle) |
Software
| Software | CreatWare, Orca Slicer, Cura, Simplify3D, Prusa, etc |
|---|---|
| Supported File Types | Gcode, STL, 3MF, OBJ, AMF, STP, STEP |
| Operating Systems | Windows ALL / Mac OS |
Electrical
| Power Requirements | 220~240 V, 50~60 Hz |
|---|---|
| Display | 17-inch full-color multilingual |
| Rated Power | 14600W |
| File Transfer | USB / U disk / WiFi / LAN |
Special Features
| Built-in Air Filtration System | Compact HEPA + Activated Carbon |
|---|---|
| External Air Filtration System (Optional) | AIR-200 Standalone Industrial Filter |
| Filament Detection | Run-out / clog detection |
| Firmware | Klipper - High Speed |
| Camera Control | Remote camera monitoring |
| Dual-Nozzle Auto Resume Printing | Yes |
| Bed Leveling Technology | Eddy Current Leveling |
| XY Offset Technology | HD camera AI alignment |
| Z Offset Technology | Snap-Action Switch |
| Door Opening Detection | Safety door lock |
| Chamber Insulation | Three-layer insulation |
| External Air Cooling | Yes |
| Auto Material Feeding | Yes |
Mechanical
| XY Motors | Maglev Linear Motor System |
|---|---|
| Print Platform | Aviation aluminum plate + magnetic platform |
| Bed Leveling | Automatic |
| X/Y Positioning Precision | 0.001 mm |
| Z Positioning Precision | 0.00052 mm |
| Z-Axis Structure | Independent Quad-Z Axis |
Size & Weight
| Product Dimensions & Weight | 2250×1540×2000mm 1100kg |
|---|---|
| Package Dimensions & Weight | 2400×1650×2260mm 1300kg |
All CreatBot printers come with a 12 month warranty from delivery. Nozzles and hot ends are covered for 6 months.
