Description

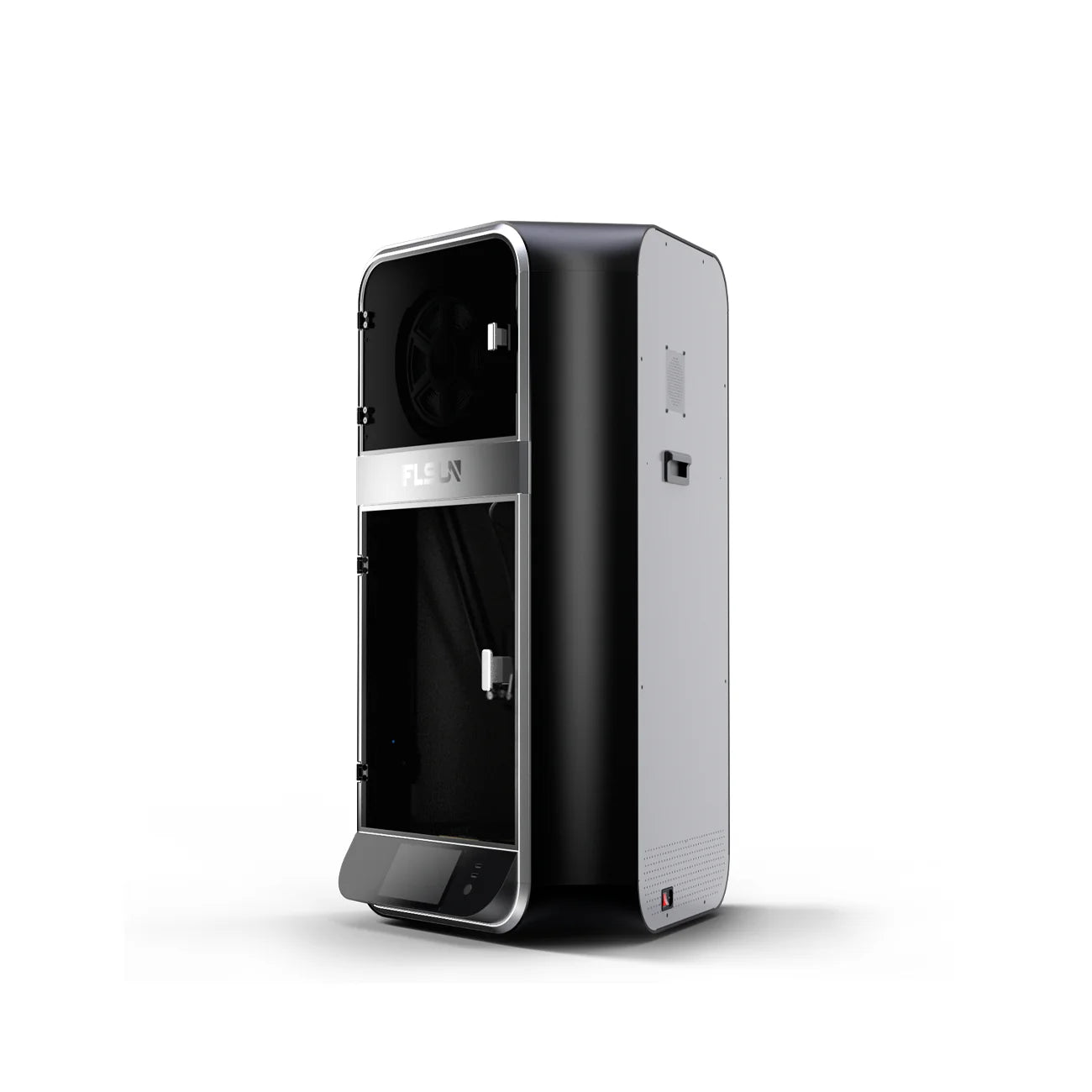

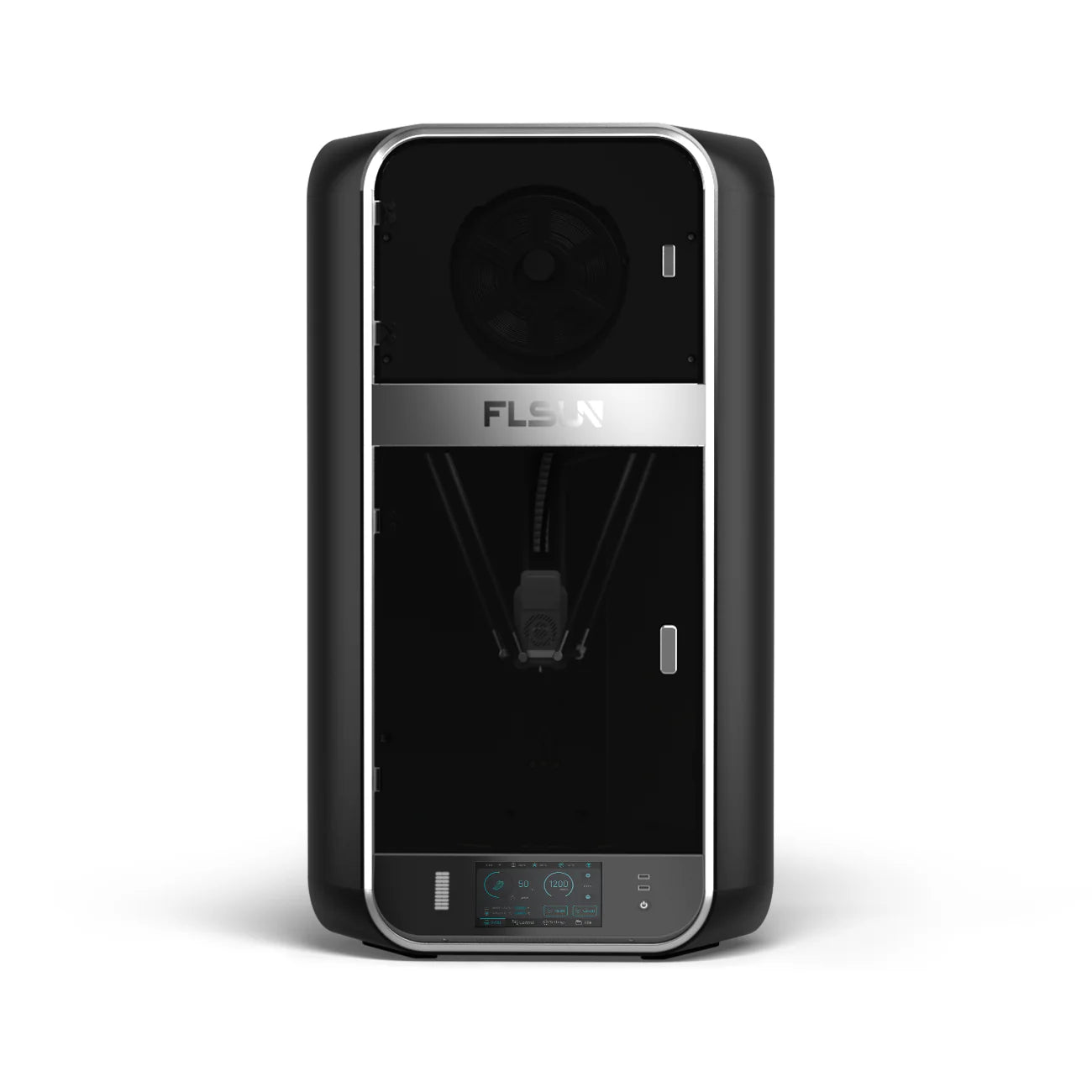

FLSUN S1 3D Printer
Discover the FLSUN S1 3D Printer, engineered to deliver exceptional performance and versatility for your creative projects. With impressive capabilities, this printer sets itself apart in the world of 3D printing.
Key Features:
-
High Speed and Acceleration: Boasting a maximum speed of 1200mm/s and acceleration up to 40000mm/s², the FLSUN S1 ensures swift and efficient printing, saving you valuable time.
-
Large Build Volume: Create larger-than-life projects with ease using the expansive build volume of 320mm diameter x 430 mm height, allowing you to realize ambitious designs without compromise.
-
Microtac Radar Technology: Experience unparalleled printing quality and accuracy thanks to Microtac Radar, a cutting-edge feature that enhances precision throughout the printing process.
-
All Metal Hotend: Equipped with an all-metal hotend capable of reaching temperatures up to 350℃, the FLSUN S1 supports a wide range of filaments including high-temperature materials, enabling you to explore diverse printing possibilities.
Ideal for both beginners and seasoned enthusiasts, the FLSUN S1 combines advanced features with user-friendly design, making it a versatile tool for prototyping, production, and creative exploration in 3D printing.
| PRODUCT | FLSUN S1 | |
| Printing Technology | Fused Deposition Modeling (FDM) | |
| Printing Accuracy | 0.1mm | |
| Recommended Layer Height | 0.1-0.35mm | |
| Chassis | Build Volume | ⌀320 * 430mm |
| Frame | Full Metal | |
| Dimensions | Product Dimensions | 550*595*1030mm |
| Package Dimensions | 640*680*1120mm | |
| Net Weight | 41kg | |
| Gross Weight | 51kg | |
| Effector | Extruder | Dual-Gear Direct Drive Extruder |
| Nozzle | Hardened Steel | |
| Nozzle MAX Temp | 350℃ | |
| Nozzle Diameter | 0.4mm | |
| Filament Diameter | 1.75mm | |
| Motor | Motor Types | 36V Closed-loop motor |
| Bed | Build Plate | Textured PEI Print Plate |
| Bed MAX Temp | 120℃ | |
| Smart Zone Heating | Inner Circle ⌀220mm、Outer Ring 220-320mm | |
| Materials | Supported | PLA、 PETG、 TPU、 ABS、 ASA、 PVA、PET、PA、 PC、Carbon etc. |
| Drying | Separate Heating elements,Desiccant | |

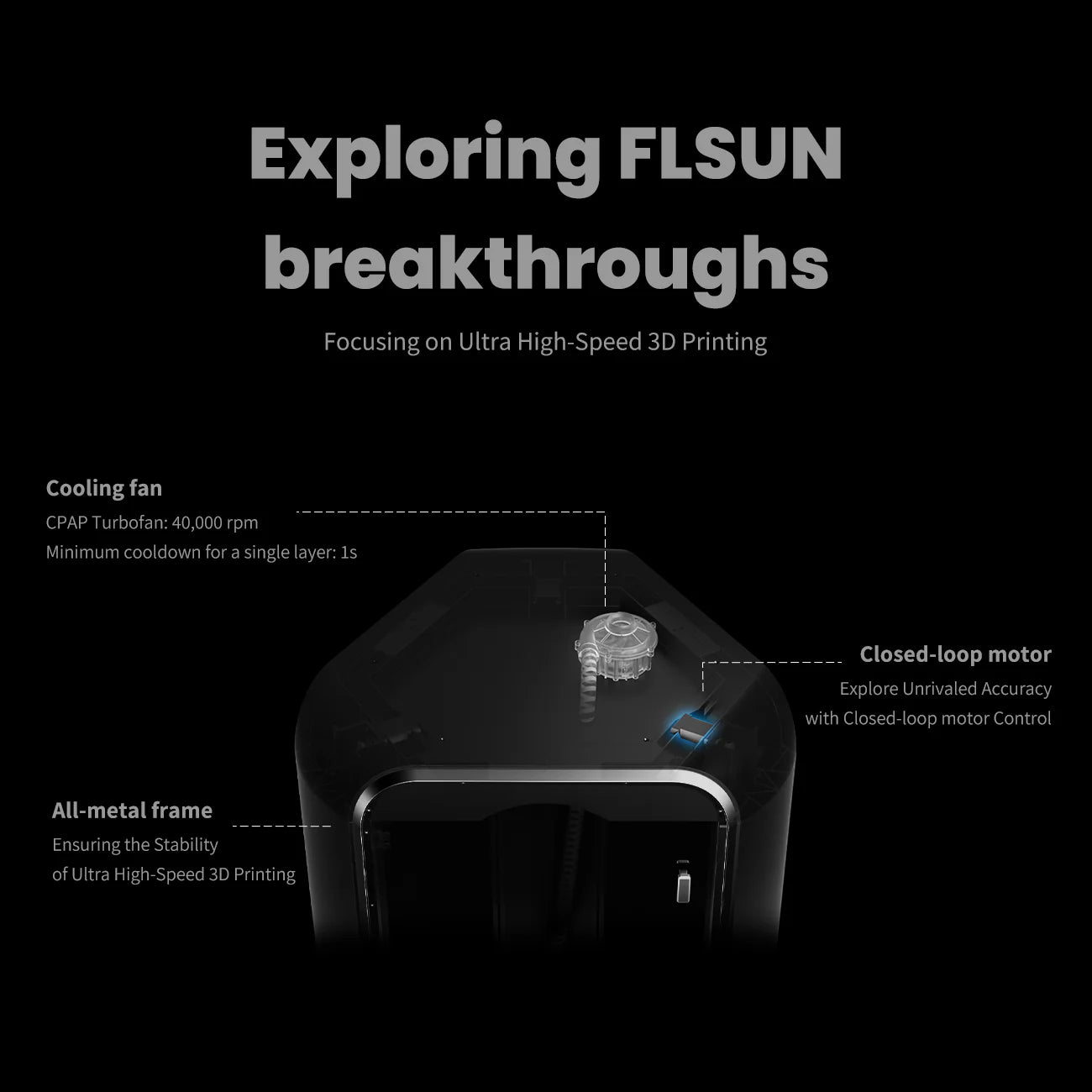

| Cooling | Fan | CPAP turbofan 40000 rpm |
| Speed | MAX Speed | 1200mm/s |
| MAX Acceleration | 40000mm/s2 | |
| MAX Flow Rate | 110mm3/s (PLA) | |
| PSU | Input | 110-240V,50/60HZ |
| Power | 1300W@220V,600W@110V | |
| Electronics | Display | Full-Integration Touchscreen |
| Storage | 16GB EMMC、32GB USB Flash | |
| Control interface | Touchscreen, PC Interface | |
| CPU | Quad-Core ARM A7 1.5 GHz | |
| NPU | 2 tops | |
| Camera | pixels | 1920 × 1080 pixels |
| Real-time Monitoring | Support | |
| Time-lapse Photography | Support | |
| Sensors | Remaining filament weight | Dynamic Monitoring |

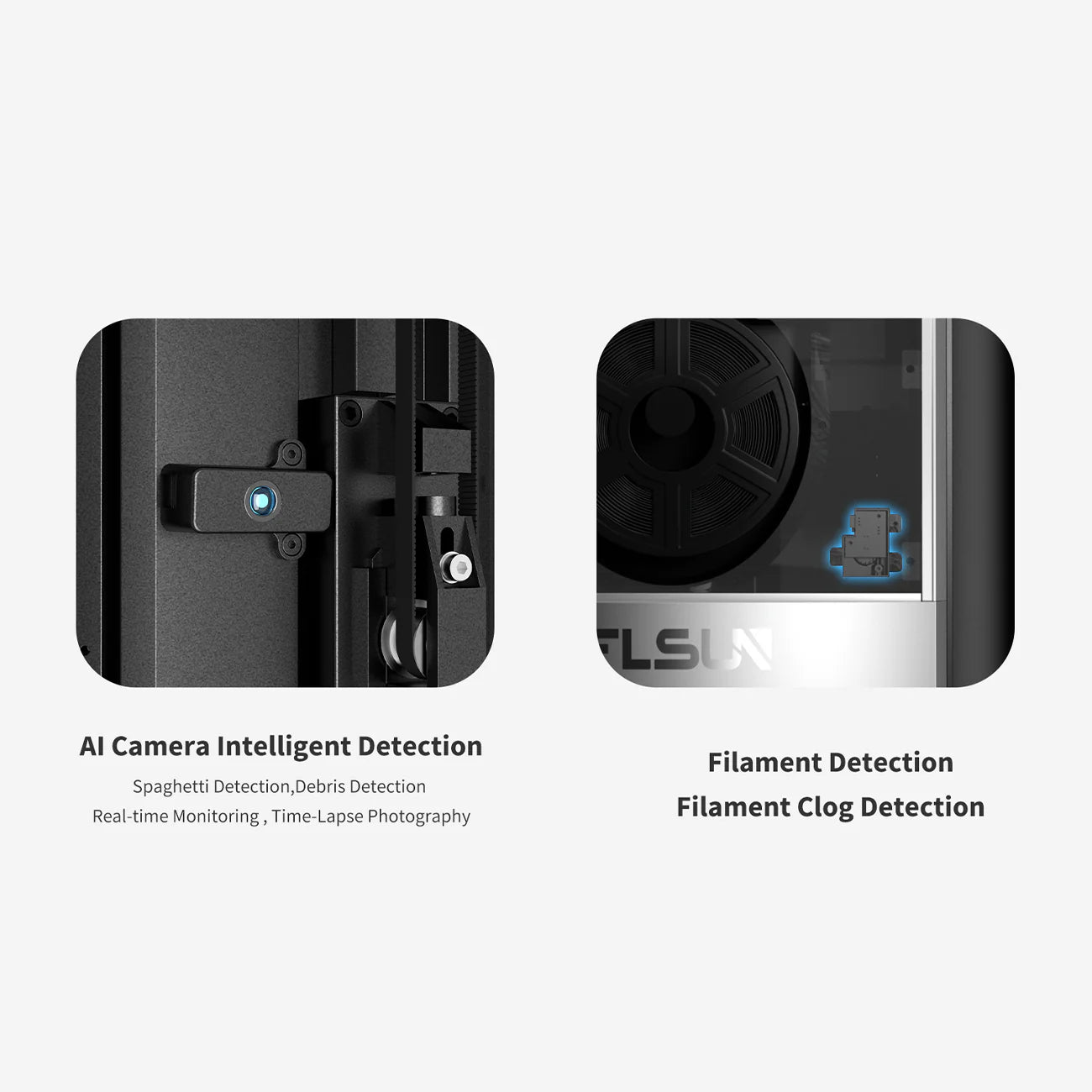

| Filament Detection | Support | |
| Filament Clog Detection | Support | |
| Vibration Compensation | Support | |
| Auto-Leveling | Support | |
| AI Lidar Detection | First Layer Detection | Support |
| Accuracy Calibration | Support | |
| Flow Calibration | Support | |
| AI Features | Debris Detection | Support |
| Spaghetti Detection | Support | |
| Energy Efficiency | Screen auto sleep | Support |
| Printer auto power off | Support | |
| Smart Zone Heating | Support | |
| Power Off Resume Print Module | Support（Z lift, protect model） | |
| Air Filter | Composite filter: HEPA + Activated Carbon | |
| System Upgrade | Upgrade Method | OTA |
| Software | Slicer | Flsun Slicer、Third-Party Slicers |
| Supported OS | MacOS、 Windows | |
| File Format | STL、OBJ、AMF、3MF | |
