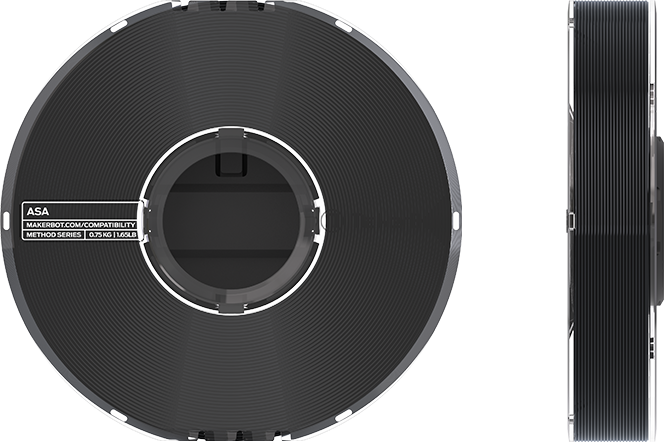

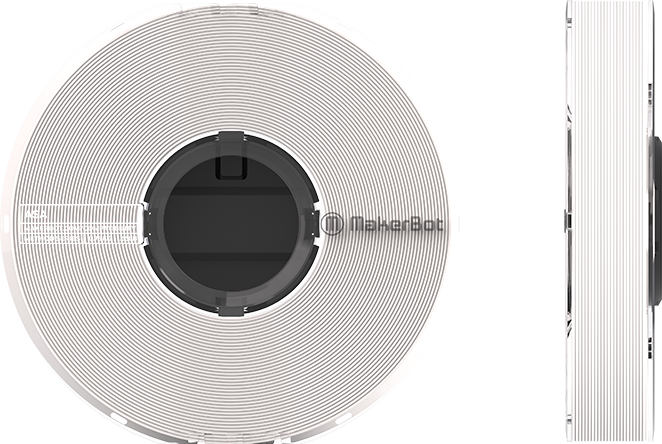

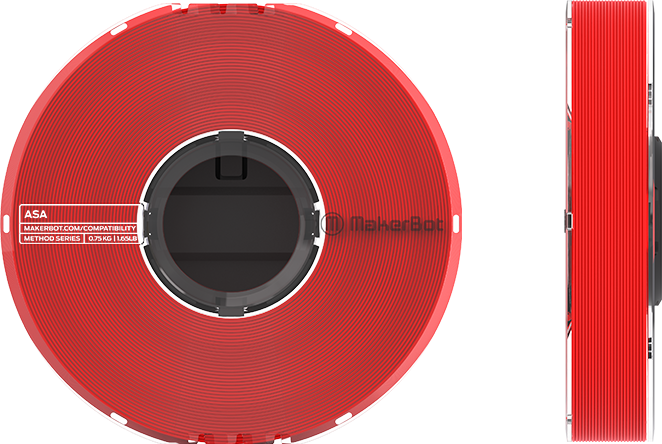

MakerBot Method - ASA Precision Material

PRINTER COMPATIBILITY
MakerBot METHOD X

SPOOL TYPE
Smart Spool™ provides valuable information including material type, color, and amount remaining via an RFID chip directly to MakerBot Print, while a desiccant in the spool maintains a low moisture level inside the drawer bay.

MATERIAL DATA - ASA
Heat Deflection @ 66 psi - ASTM 648: 96°C (204°F)
Flexural Strength (Method 1, 0.05”/min): 78 MPa (11,000 psi)
Flexural Modulus (Method 1, 0.05”/min): 2300 MPa (330,000 psi)
Tensile Strength at yield (Type 1, 0.125”, 0.2”/min): 49 MPa (7,100psi)
Tensile Modulus (ISO 527): 2,100 MPa (310,000 psi)
Strain at Yield - Elongation (%): >6%
Notched Impact Strength (ASTM D256): 140 J/m (2.6 ft-lb/in)

DIMENSIONS AND WEIGHT
Spool Diameter: 21.8 cm (8.6 in)
Spool Width: 4.2 cm (1.65 in)
Material Diameter: 1.75 mm
Shipping Weight: 1.1 kg (2.4 lb)
Net Weight: 0.65 kg (1.43 lb)

STORAGE ENVIRONMENT
Store in the included a vacuum-sealed metalized polyester bag to avoid moisture absorption from air; long-term exposure to humidity can compromise material quality and performance. Make sure the built-in desiccant is in the spool to absorb any moisture exposure during the material loading process.
