Description

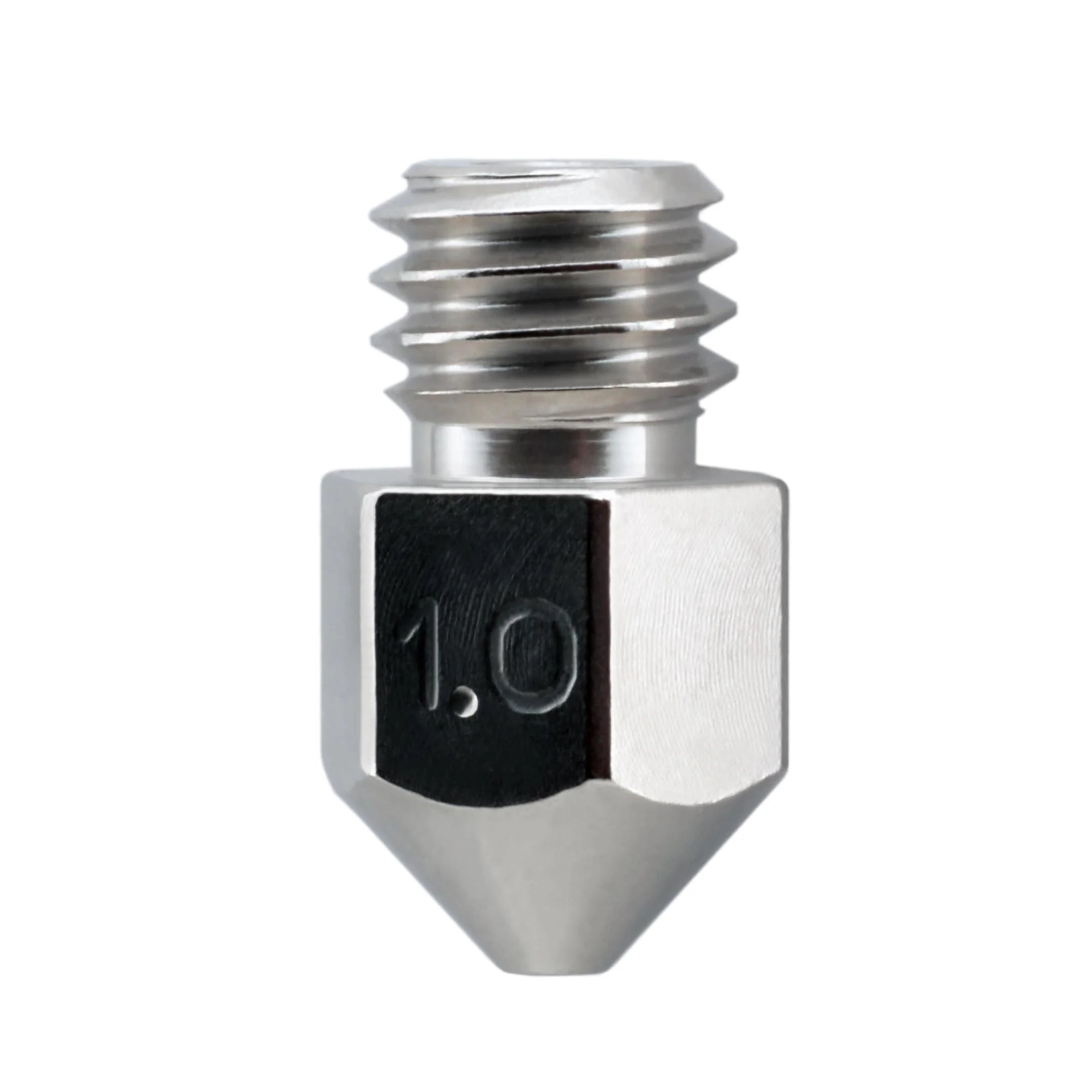

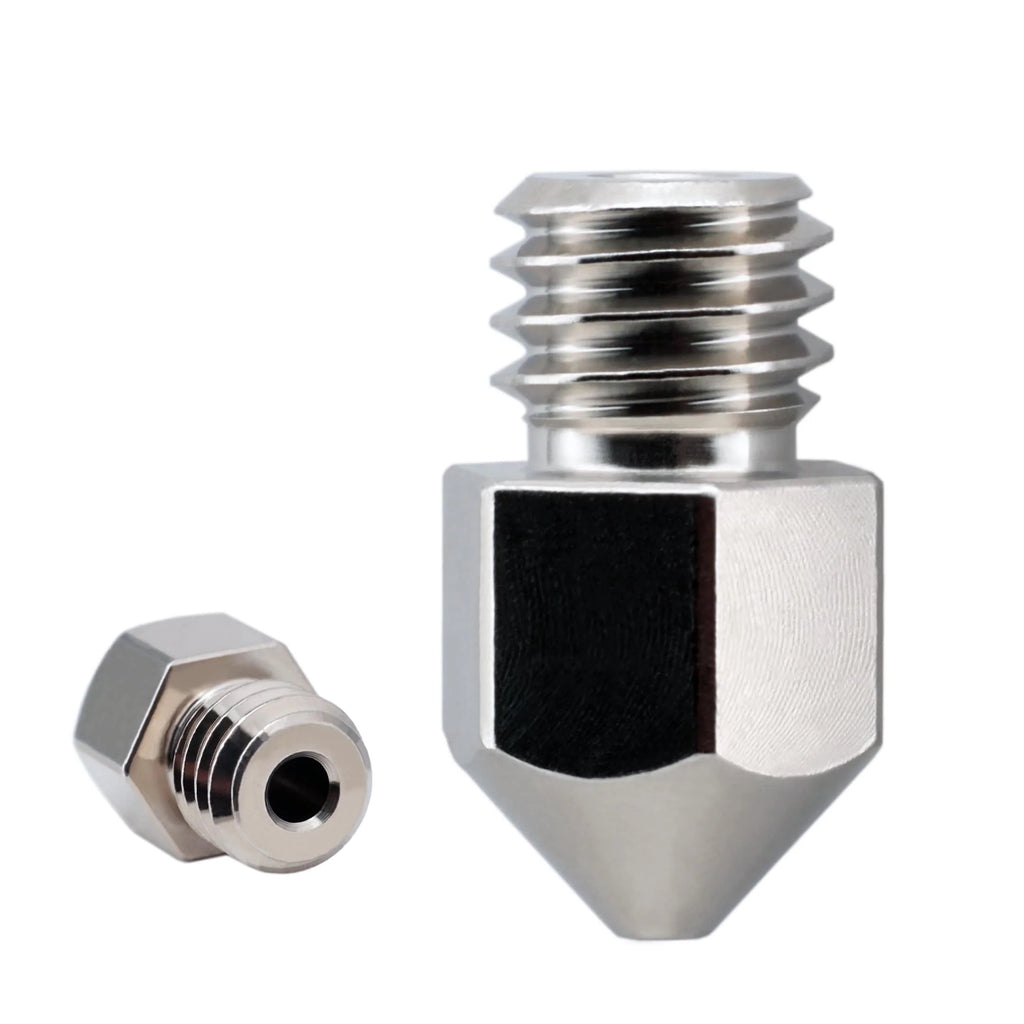

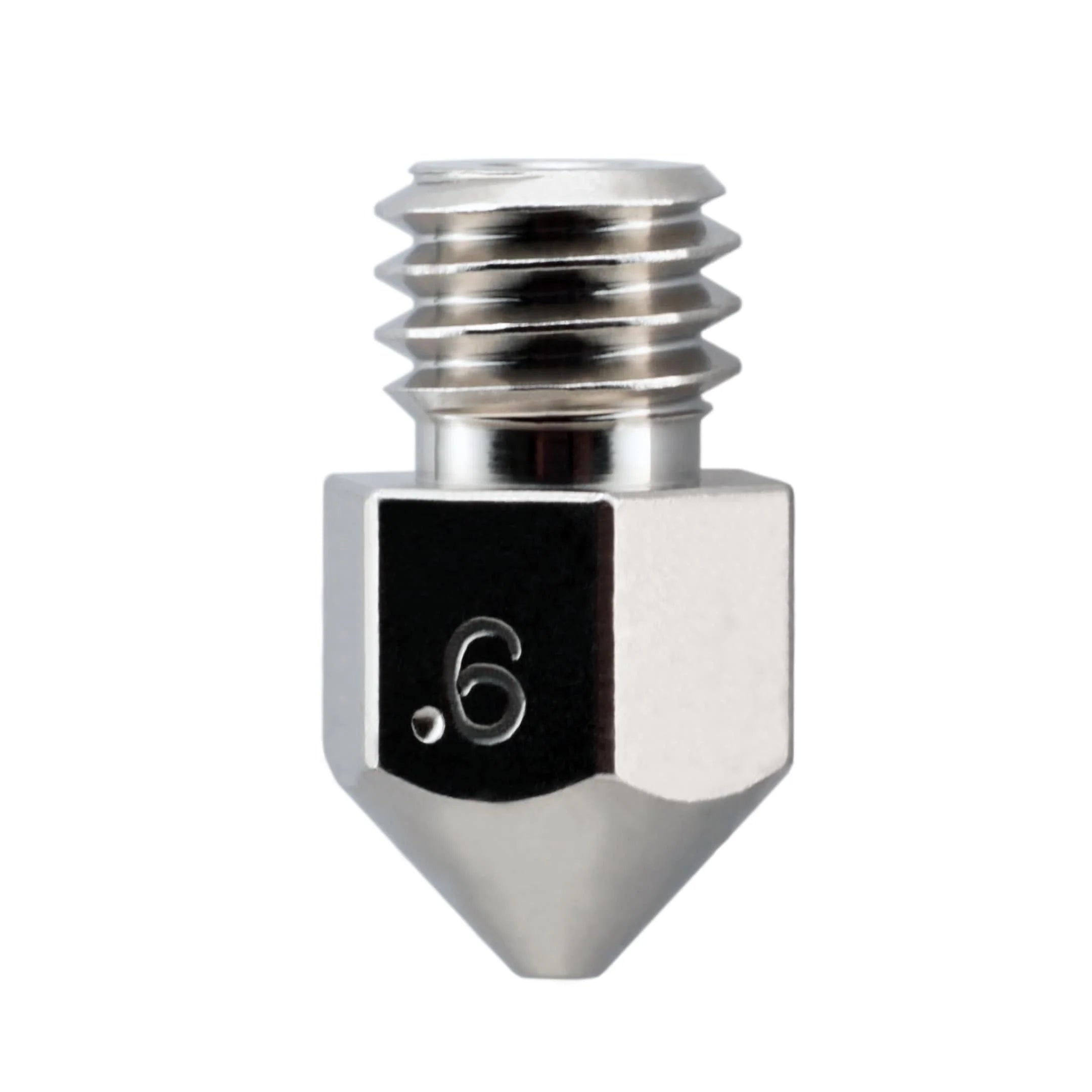

MK8 Plated Wear Resistant Nozzle
This is MK8 style nozzle, it is made from a 360 brass base material and plated with TwinClad XT coating. TwinClad XT is a nickel composite coating designed for very low friction. It offers one of the lowest coefficient of friction, better than nickel with PTFE co-deposit.
This coating is also very hard and abrasion resistant. If you are working with abrasive Carbon Fiber, Stainless Steel, wood filled or any other metal filled filaments, this will greatly improve the life of your nozzle.

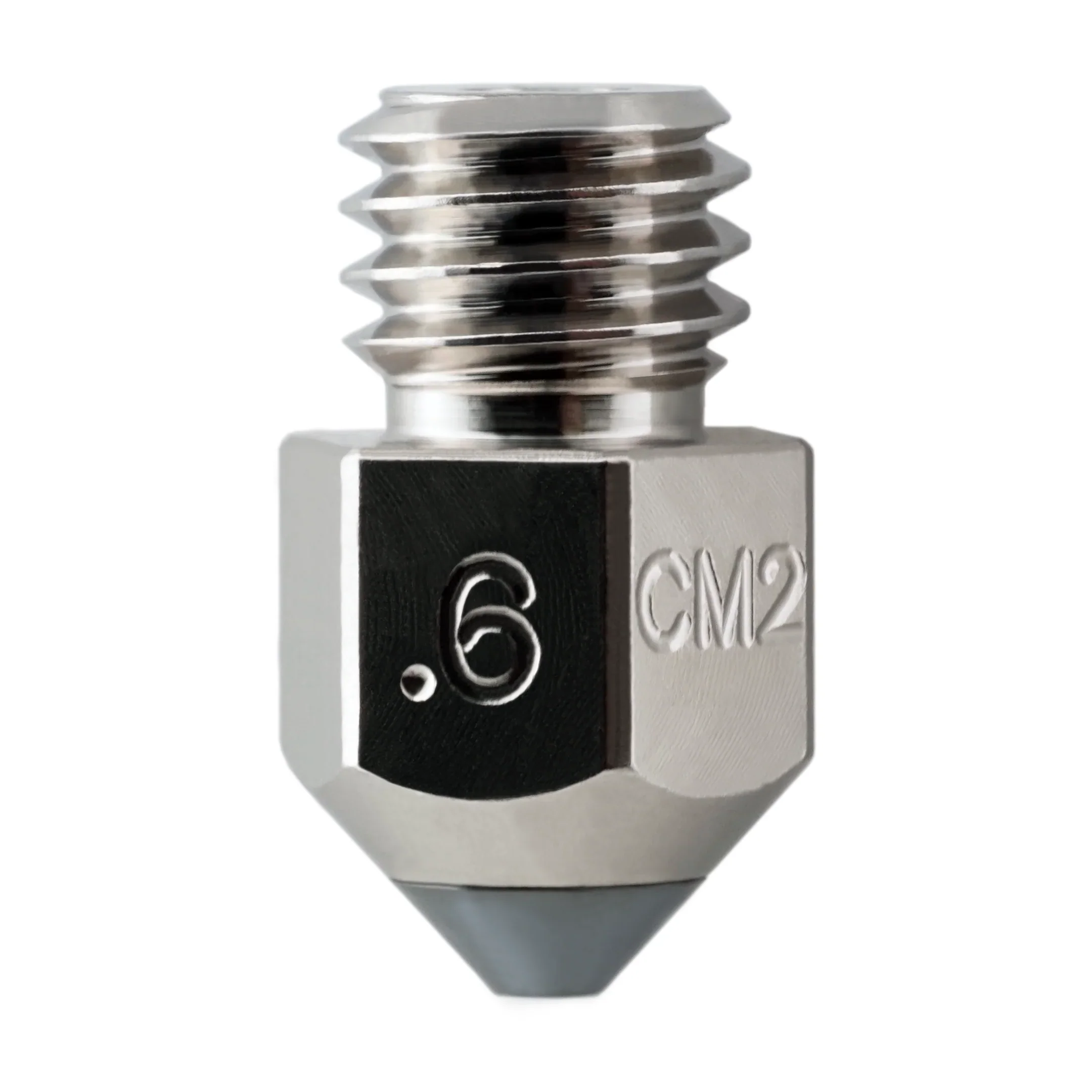

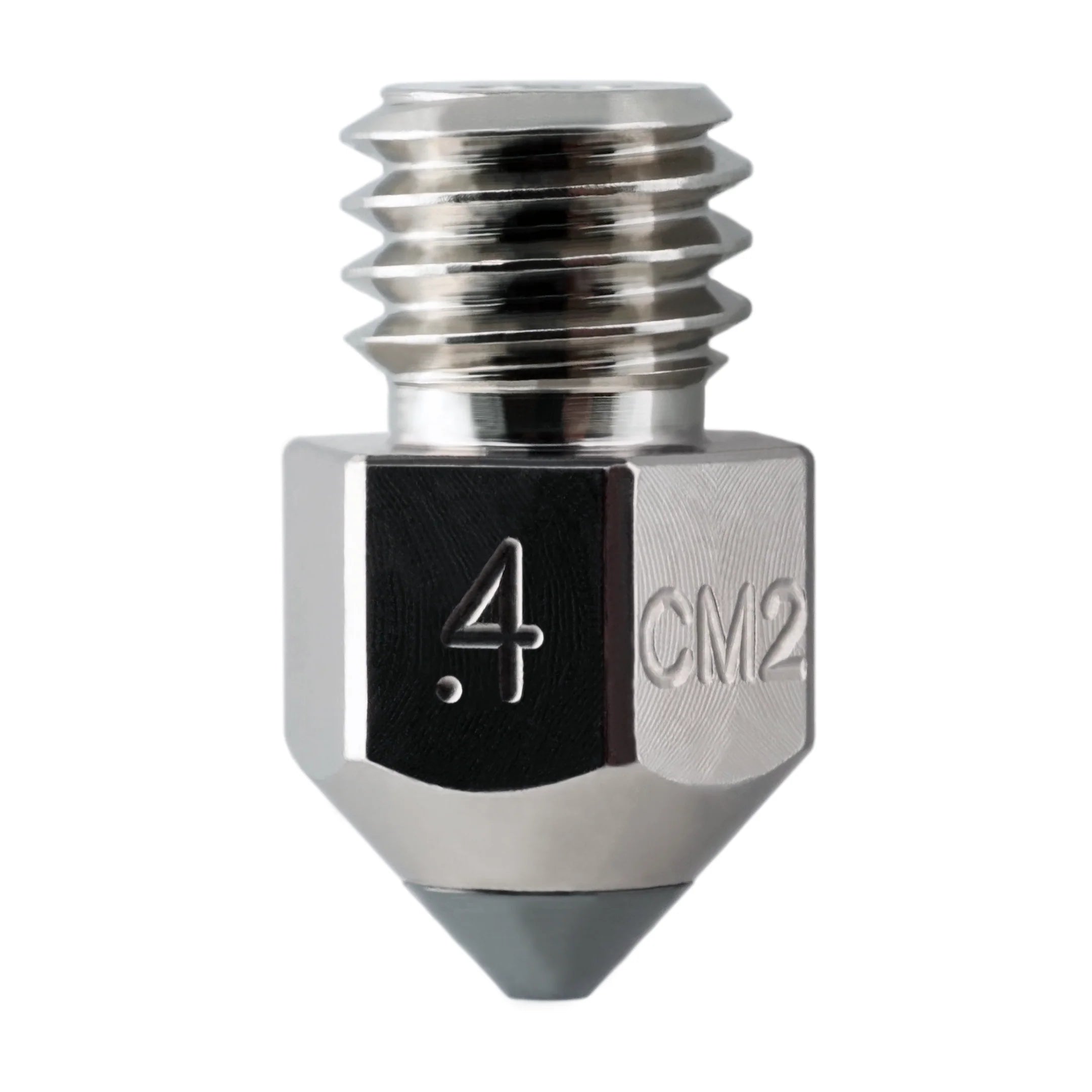

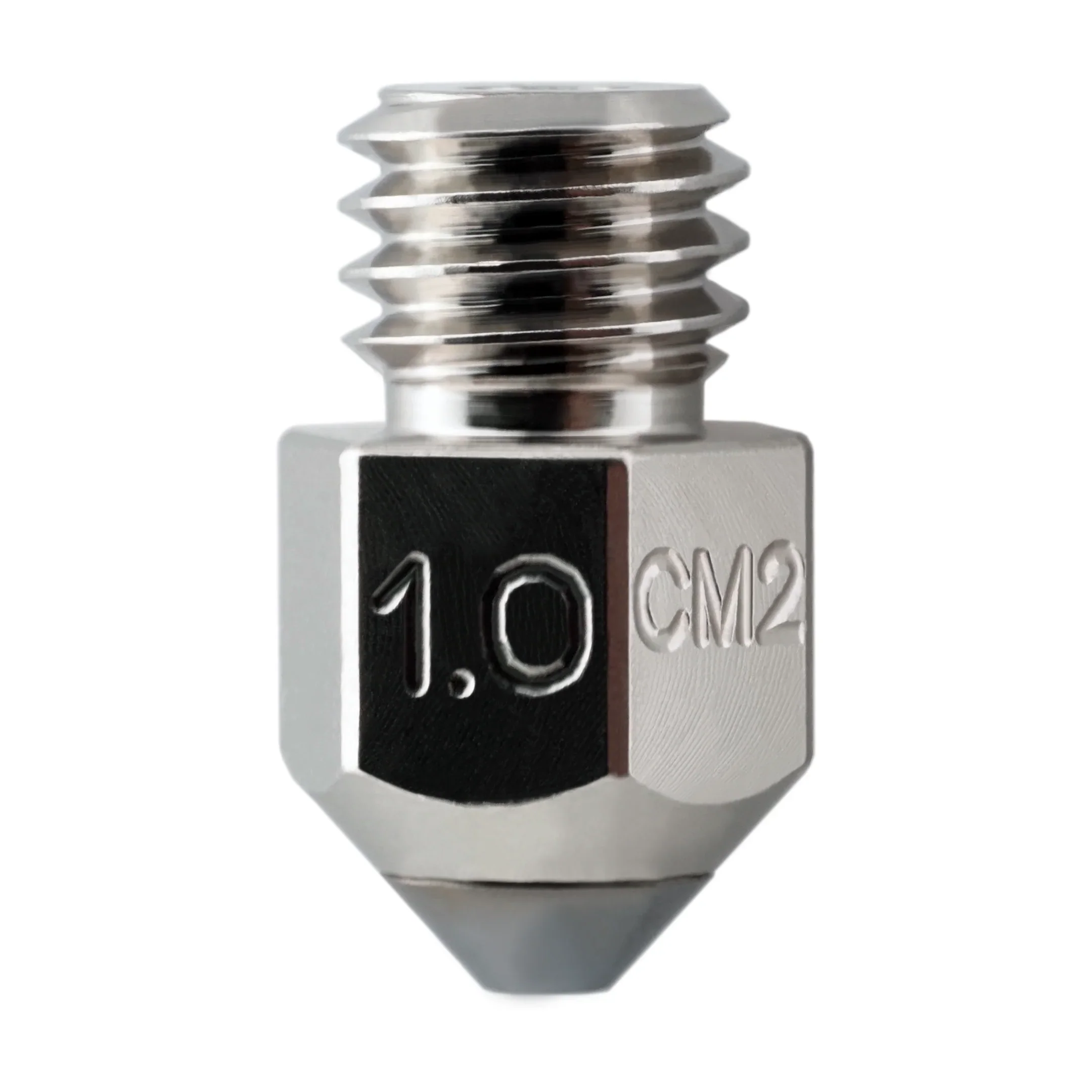

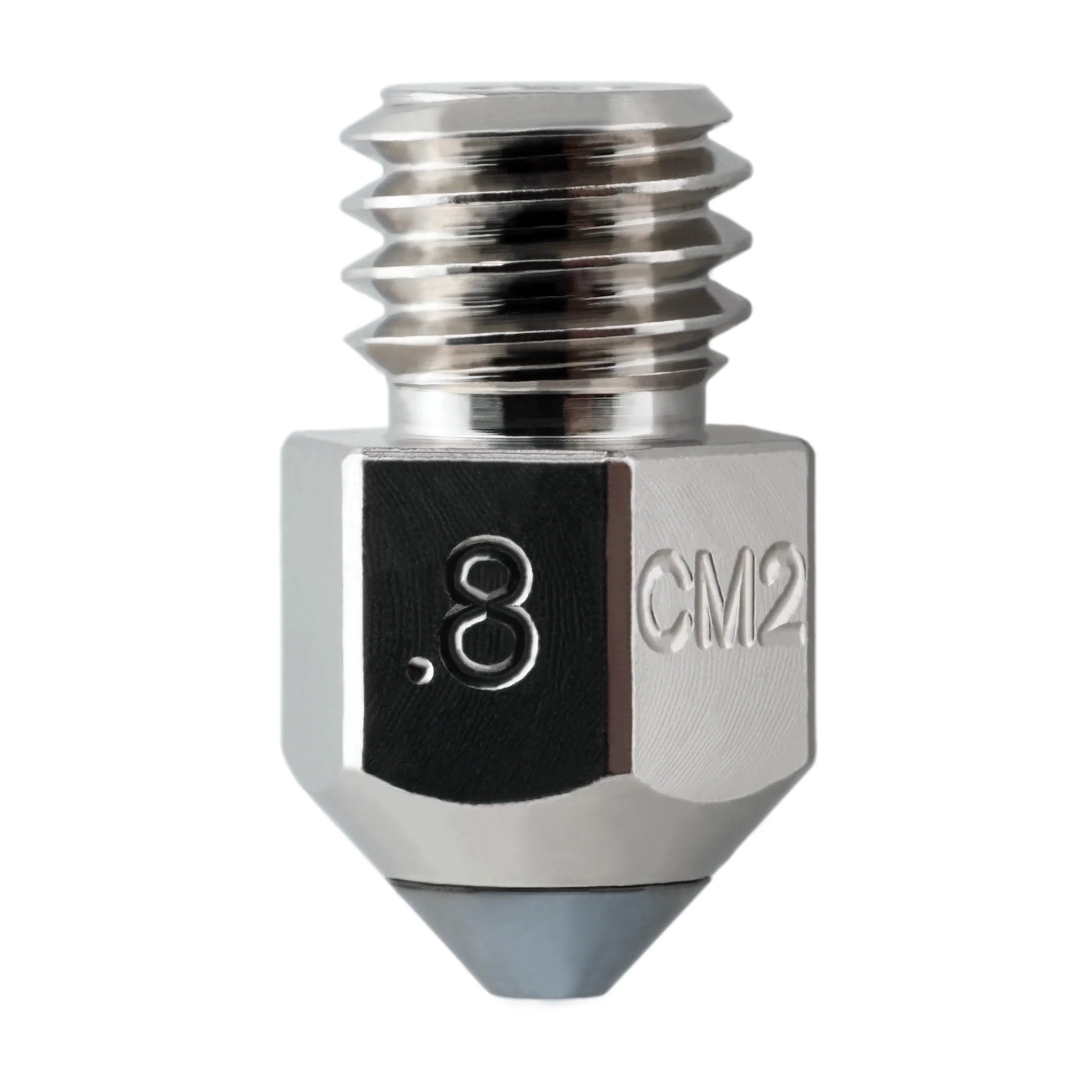

CM2
Micro Swiss CM2™ Nozzle is an ideal nozzle for all applications. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating.
This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special nonstick nano coating.
MK8 nozzles fit a large range of printers, for a full list view the Micro Swiss fits page here. Some popular units include:
- Cr-10/10S/10 V2/10 V3/10 mini/10 S4/10 S5
- Ender 2/2 Pro
- Ender 3/Pro/V2/Max/S1
- Ender 5/Pro/Plus
- Micro Swiss All Metal Hotend for Cr-10 and Cr-10S Pro
- Micro Swiss NG extruders

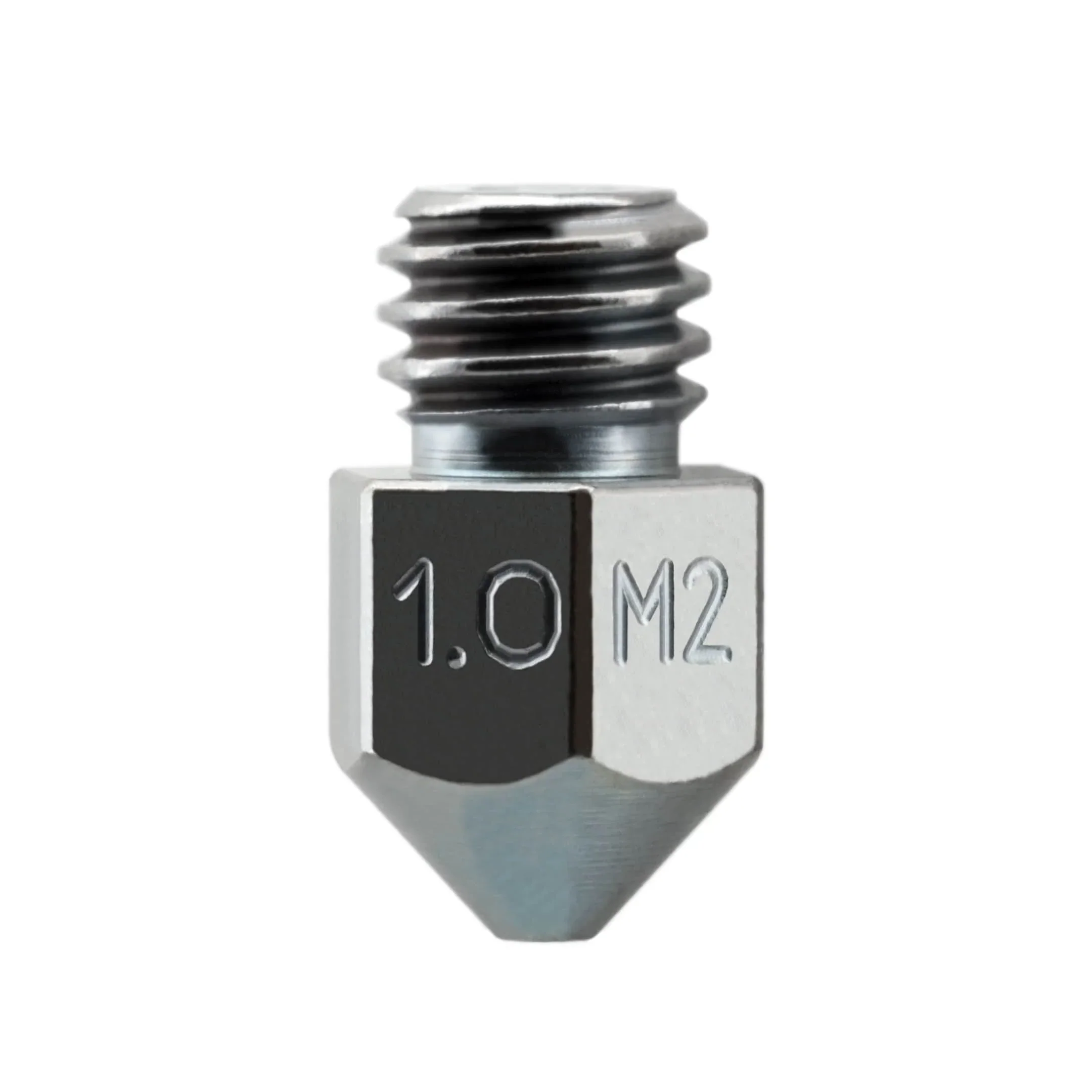

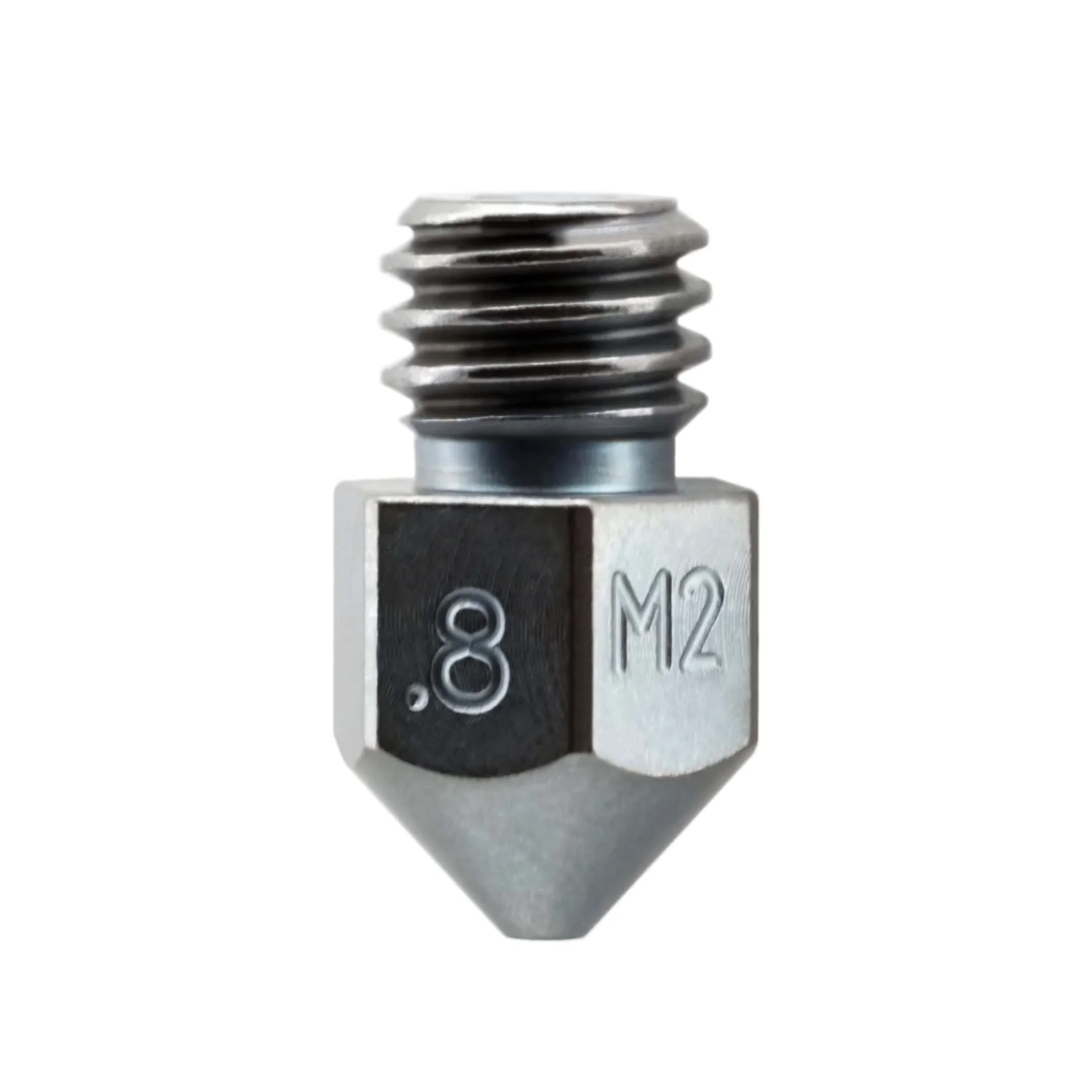

M2
LEAD TIME MAY APPLY
The M2 nozzles are designed for high temperatures, abrasion resistance and with superior non-stick properties. Nozzles are machined from M2 high speed steel, hardened and tempered to 68 HRC, plated with Electroless Nickel Plating, and coated with WS2 coating.
The M2 nozzle can operate up to 450C without losing the hardness.
M2 Hardened High Speed Steel:
68 HRC
Plating:
Electroless Nickel
Plating Hardness:
70-73 HRC
Coating:
WS2 coating
Coefficient of friction: 0.035
