Mole 3D Scanner by 3DMakerpro

Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200×100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

0.05mm Accuracy, 0.1mm Resolution

With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.

Ultra-Clear Texture Mode

Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping. Tips: Color models require the color kit (included in luxury combo).

Incredible Scan Success Rate

Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan. Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.

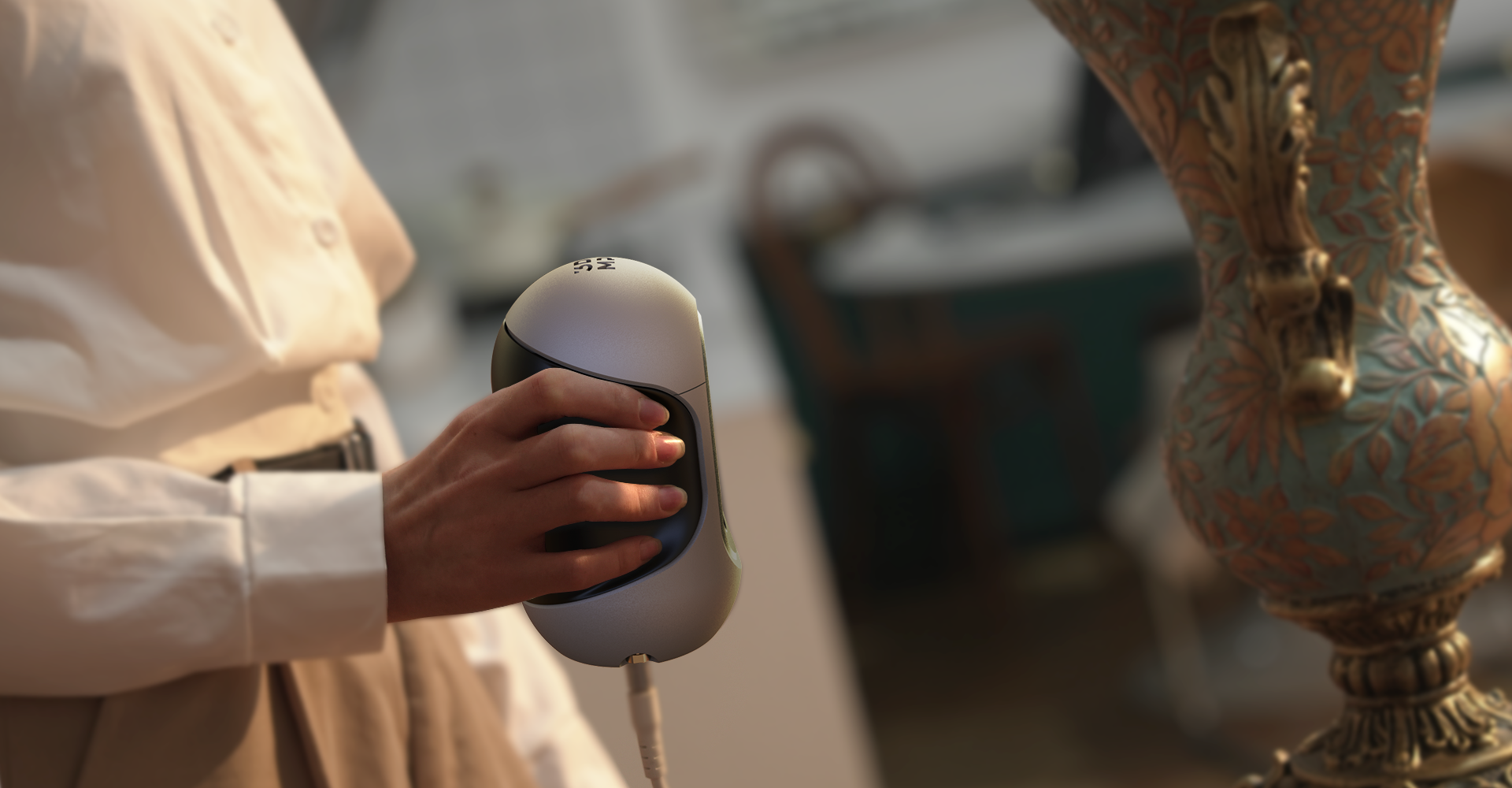

Optical Anti-Shake Modules

Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

Made for Scanning – Anywhere

JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

Android | iOS

Scan and obtain 3D models on the go with the mobile version of JMStudio. Connect your scanner to your smartphone for ultimate portability.

Windows | macOS

JMStudio is 3Dmakerpro’s exclusive software, handling multi-mode data acquisition, high-definition preview, texture mapping, and 3D model generation for scanning equipment.

Scan Performance Parameters

• Accuracy: 0.05mm
• Resolution: 0.1mm
• Frame rate: 10fps
• Tracking mode: Visual tracking
• Work distance: 150-400mm
• Single capture range: 200×100mm
• Typical object sizes: 15-1500mm

Hardware Parameters

• Light source: NIR
• Color texture: Extended support
• USB interface: USB 2.0
• Dimensions: 141 × 80 × 80 mm
• Weight: 390 g

Software & System Requirements

• Output formats: OBJ / STL / PLY
• Compatible systems: Windows 10/11 (64-bit), macOS 12/13
• Compatible mobile: Android 10.0 or later, iOS 15.0 or later (requires Connect adapter)
• Minimum computer requirements: Intel Core i5 (8th gen), 16 GB RAM, MX250 GPU with 2 GB VRAM
• Recommended computer requirements: Intel Core i7 (8th gen), 16 GB RAM, NVIDIA GTX 1060 GPU with 4 GB VRAM
