A Cumulation of Hardware and Software

Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

3d scanner model

3d camera scanner

0.05mm Accuracy, 0.1mm Resolution

With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details.

3d scanner model


Ultra-Clear Texture Mode

Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping.

Tips: Color models require the color kit (included in luxury combo).

3d scanner model

Incredible scan success rate

Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.

3d scanner saleVisual tracking

Using visual tracking technology and our self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.

3d scanner saleOptical anti-shake modules

Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

3d scanning

Made for Scanning

Android | iOS

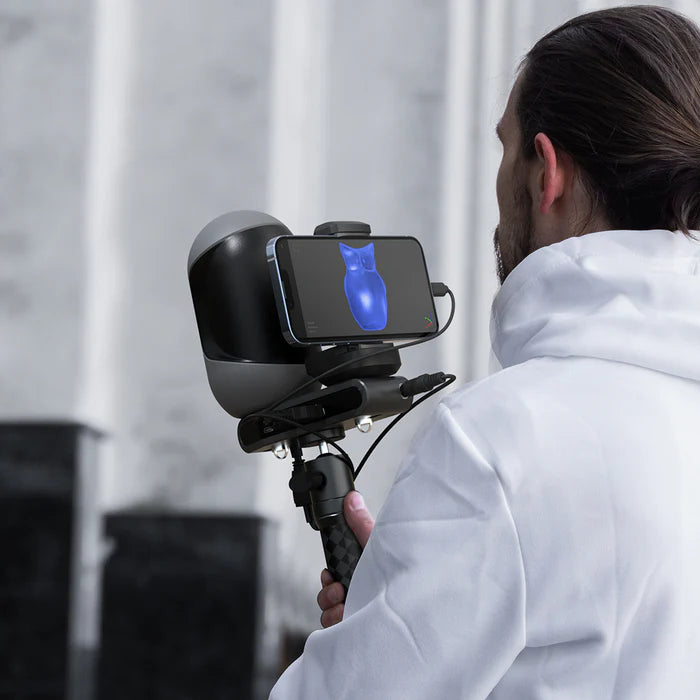

JMStudio has launched a mobile version as part of the 3Dmakerpro lightweight scanning plan. Paired with Connect, you can now scan and obtain any 3D model you desire, anywhere.

3d scanner sale

Windows | MacOS

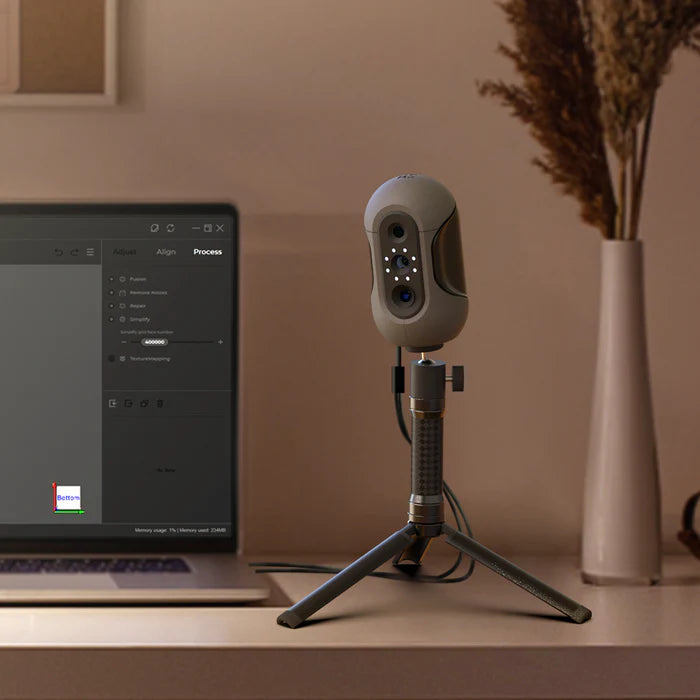

JMStudio is 3Dmakerpro's exclusive software, handling multi-mode data acquisition, high-def preview, texture mapping, and 3D model generation for scanning equipment.

3d scanner sale

Scan Performance Parameters:

  • Accuracy: 0.05mm
  • Resolution: 0.1mm
  • Frame rate: 10fps
  • Tracking mode: Visual tracking
  • Work distance: 150-400mm
  • Single capture range: 200x100mm
  • Typical object sizes: 15-1500mm

Hardware Parameters:

  • Light source: NIR
  • Color texture: Extended support
  • USB interface: USB2.0
  • Dimensions: 141x80x80mm
  • Weight: 390g

Software System Requirements:

  • Output format:OBJ/STL/PLY
  • Compatible system: Windows10/11 64bit, MacOS12/13
  • Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
  • Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
  • Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
