Description
- 0.01mm Accuracy
- 0.05mm Resolution
- 24-bit Color Scan
Introducing Seal
The World's First 0.01mm Accurate Consumer 3D Scanner.
Blue Light Encoded Structured Light
5x More Detail Per Unit
With its shorter wavelength (400 to 500 nano), it projects refined structured light, achieving 0.01mm accuracy. This advanced technology captures even the tiniest dents, textures, and edges, providing unparalleled detail in high-resolution 3D models.
0.01mm
Accuracy
Achieve exceptional 0.01mm accuracy for precise object reproduction.
0.05mm
Resolution
Experience impressive detail with a 0.05mm minimum point spacing.
24-bit
Color depth
Texture camera captures lifelike model texture with 16,777,216 colors.

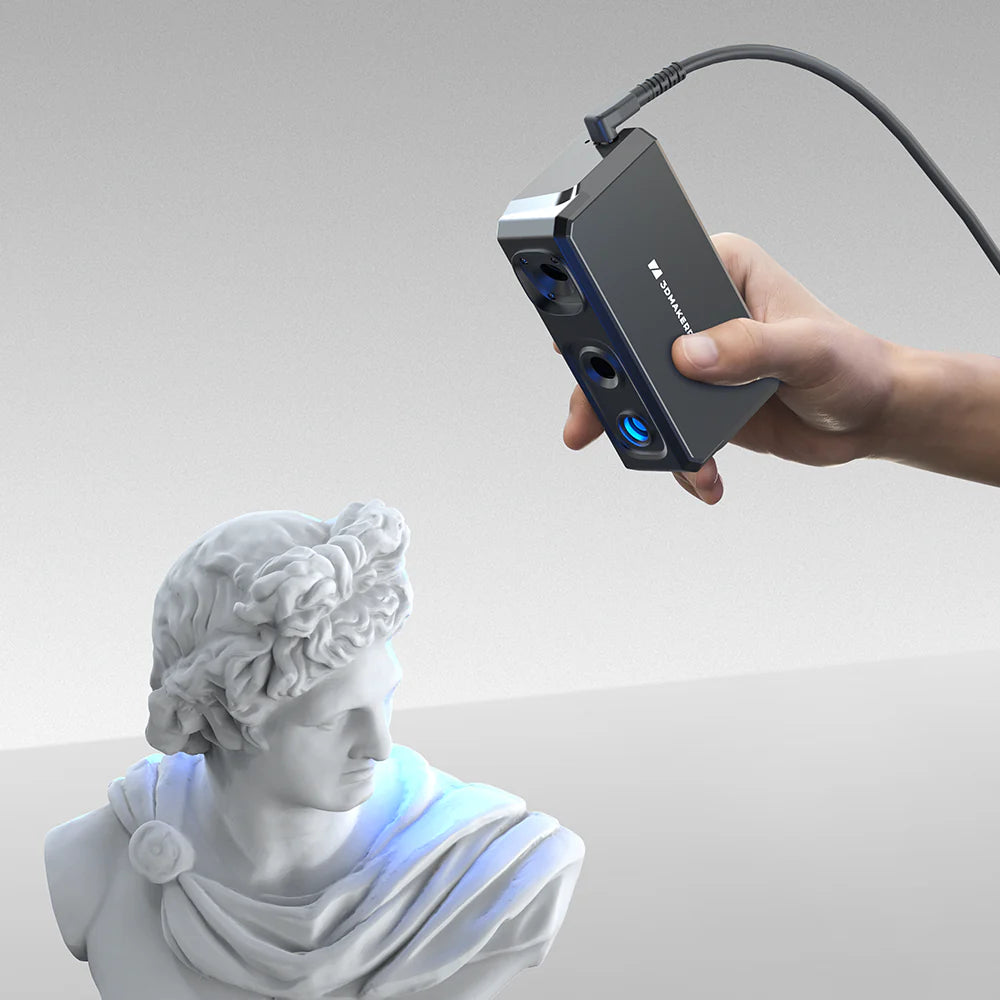

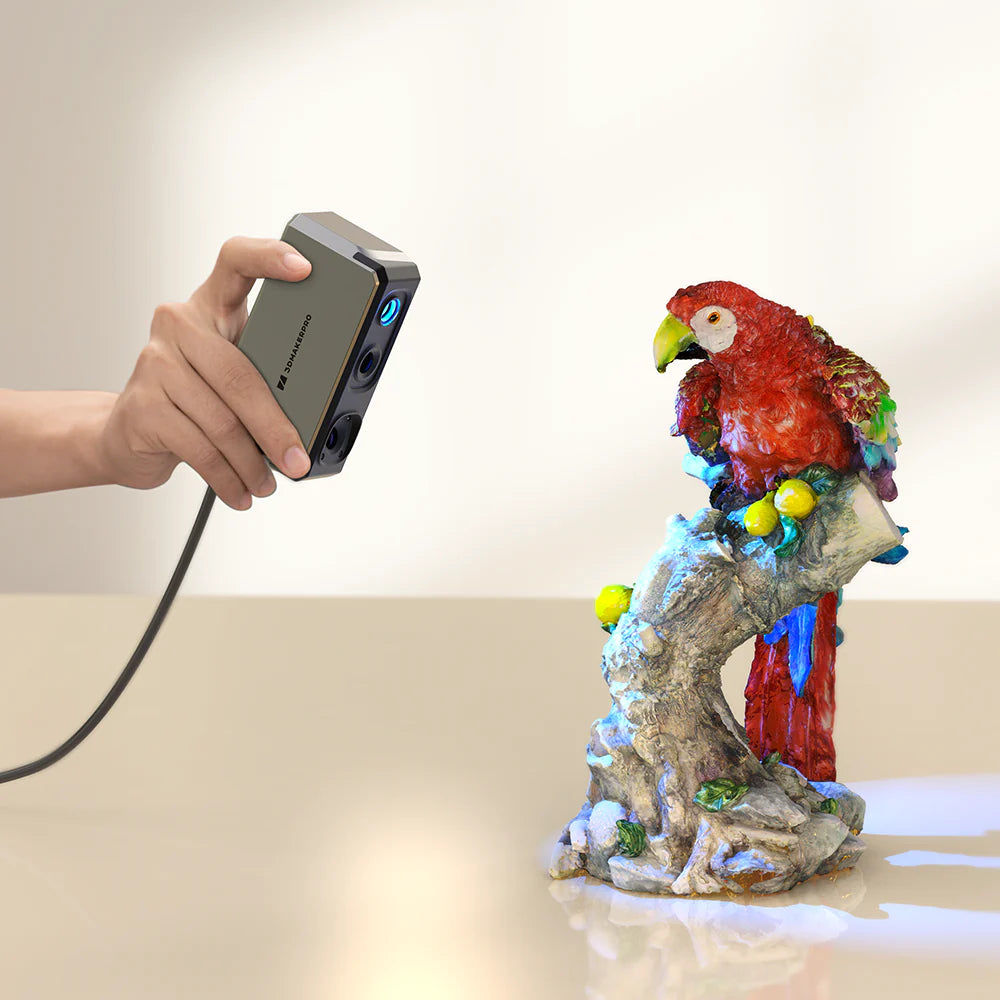

Smooth Scan
Smooth scanning with Seal's advanced optical system and JMStudio algorithms.
Anti-Shaking Lenses
Optical stabilization filters out unwanted jitter for smooth, continuous scanning.
Lightning-Fast Speed
Collecting 100,000 points per second, it swiftly scans body parts and more.
Brilliant in Darkness
9-level light adjustment for versatile scanning in varying colors, materials, and lighting conditions.
Designed for Easy Scanning.
Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates.
Compatible Software
JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.
Tech Specs
Seal 3D Scanner
Scan Performance Parameters:
- Accuracy: 0.01mm
- Resolution: 0.05mm
- Frame rate: 10fps
- Tracking mode: Visual tracking
- Work distance: 180-280mm
- Single capture range: 100x75mm
- Typical object sizes: 10-300mm
Software System Requirements:
- Output format: OBJ/STL/PLY/ASC
- Compatible system: Windows10/11 64bit, MacOS12/13

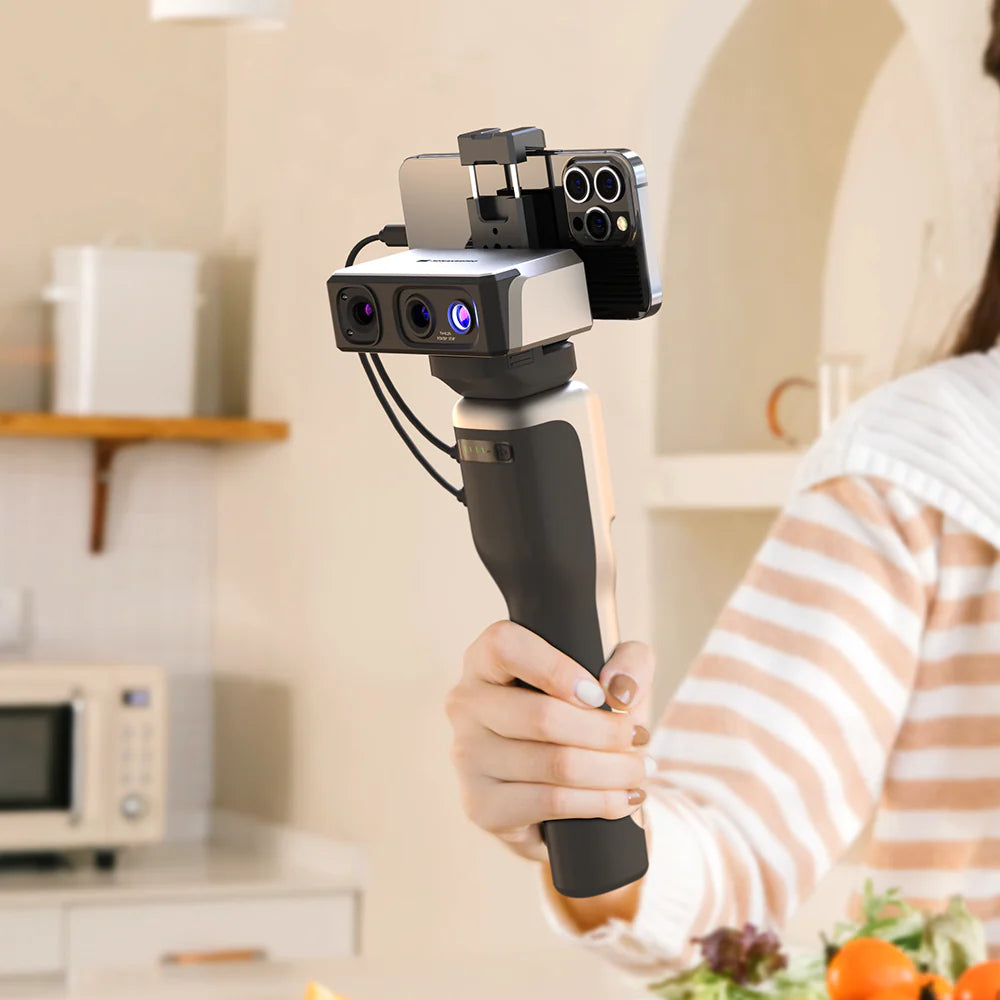

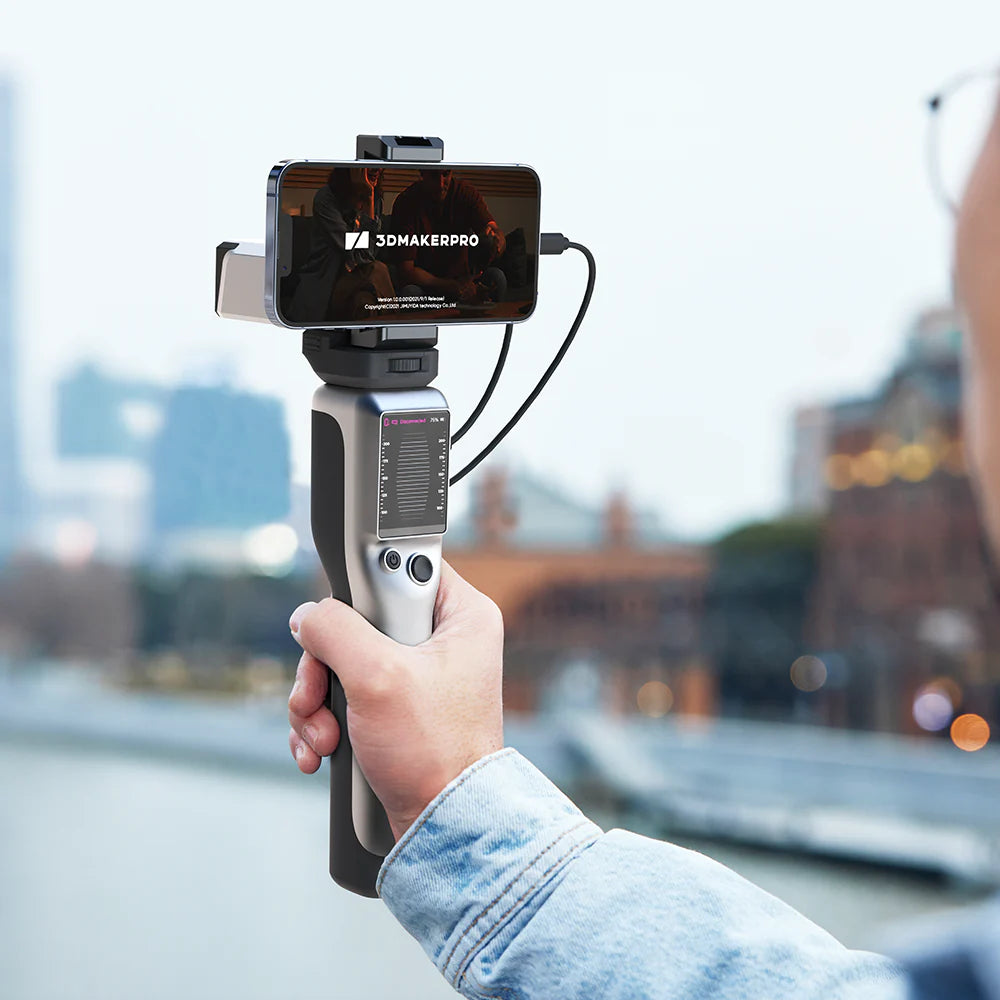

- Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
- Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
- Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
Hardware Parameters:
- Light source: Blue light
- Color texture: Support
- USB interface: USB2.0
- Dimensions: 110×60×35mm
- Weight: 254g
