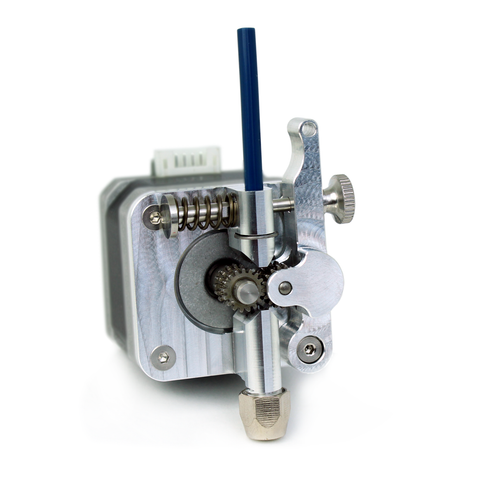

Micro Swiss Bowden Dual Gear Extruder

Micro Swiss Bowden Dual Gear Extruder features the same quality construction as our Direct Drive extruders. It is designed to be a bolt-on replacement to most of the Bowden extruder machines on the market.

Features:

Dual-drive train
Hardened tool steel, CNC precision cut gears
Adjustable filament grip
Easy filament loading
Outstanding extrusion control
E-steps value: 130

CNC Machined and Assembled in USA

Compatibility:

Bowden extruder machines
Fits NEMA 17 size stepper motors
Ender 3 V2
CR-6 SE - Filament Runout Sensor Mount
CR-6 Max - Filament Runout Sensor Mount
CR-10 V2 - Filament Runout Sensor Mount
CR-10 Smart - Filament Runout Sensor Mount
CR-10S Pro - Filament Runout Sensor Mount
CR-10S Pro V2 - Filament Runout Sensor Mount
Ender 3 Max - Filament Runout Sensor Mount

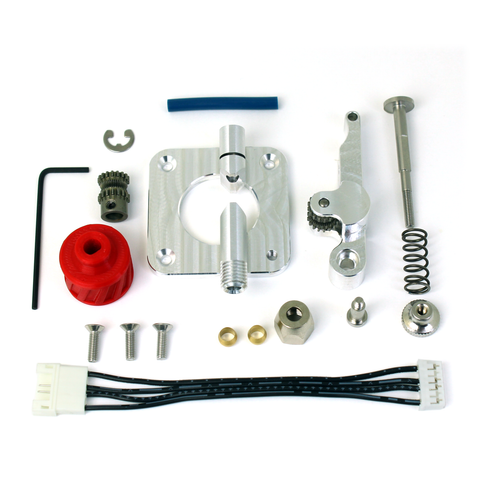

Included in the box:

Stepper motor is NOT included

1 x Main Extruder body
1 x Extruder Lever with gear
1 x Spring Pin
1 x Spring
1 x Motor Gear
1 x Knob
1 x Shoulder Pin
1 x Reverse polarities cable
3 x M3 x 8 Motor Mounting Screws
2 x Brass compression sleeves
1 x Compression nut
1 x Capricorn Liner
1 x E-Clip Retaining Ring
1 x Printed Extruder Knob
