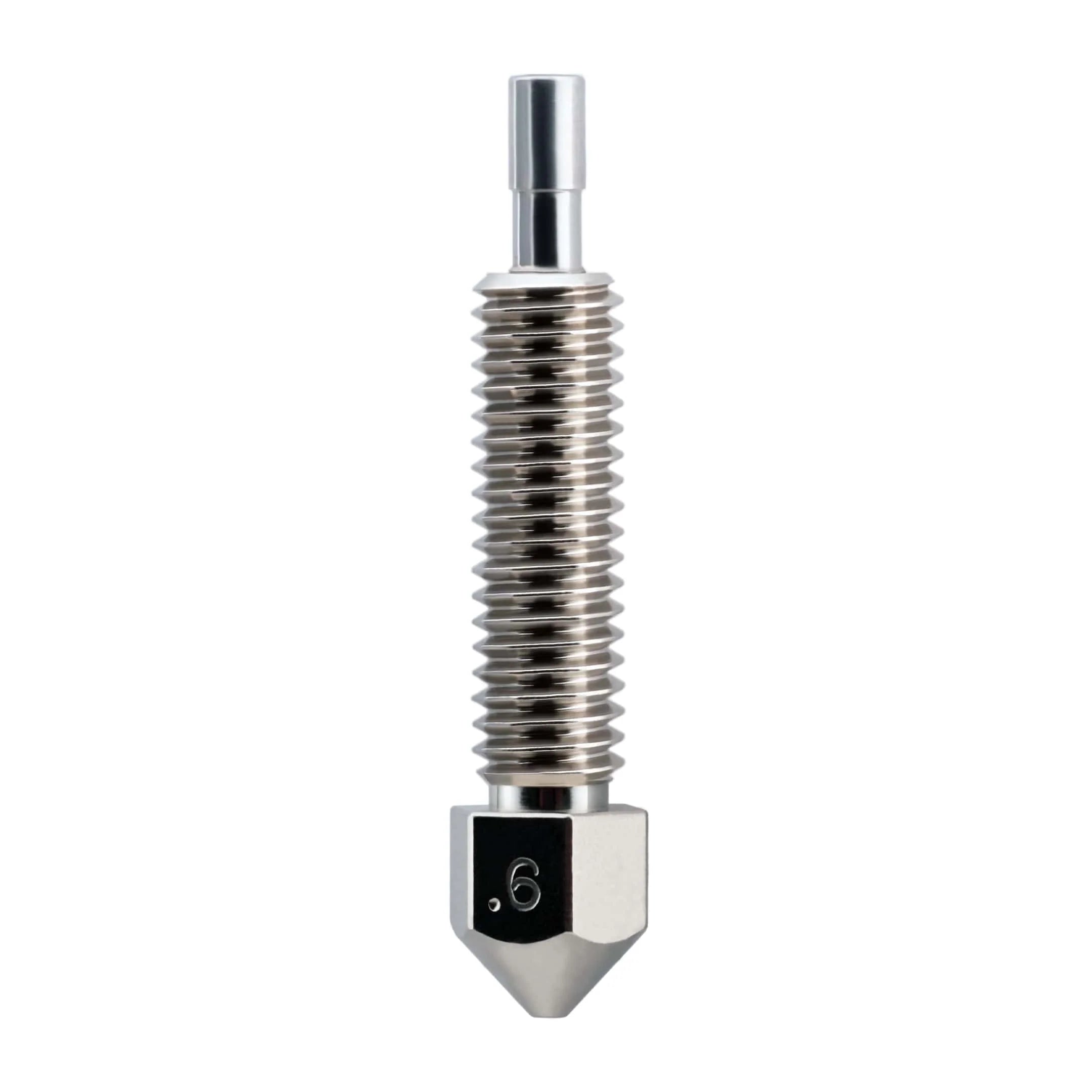

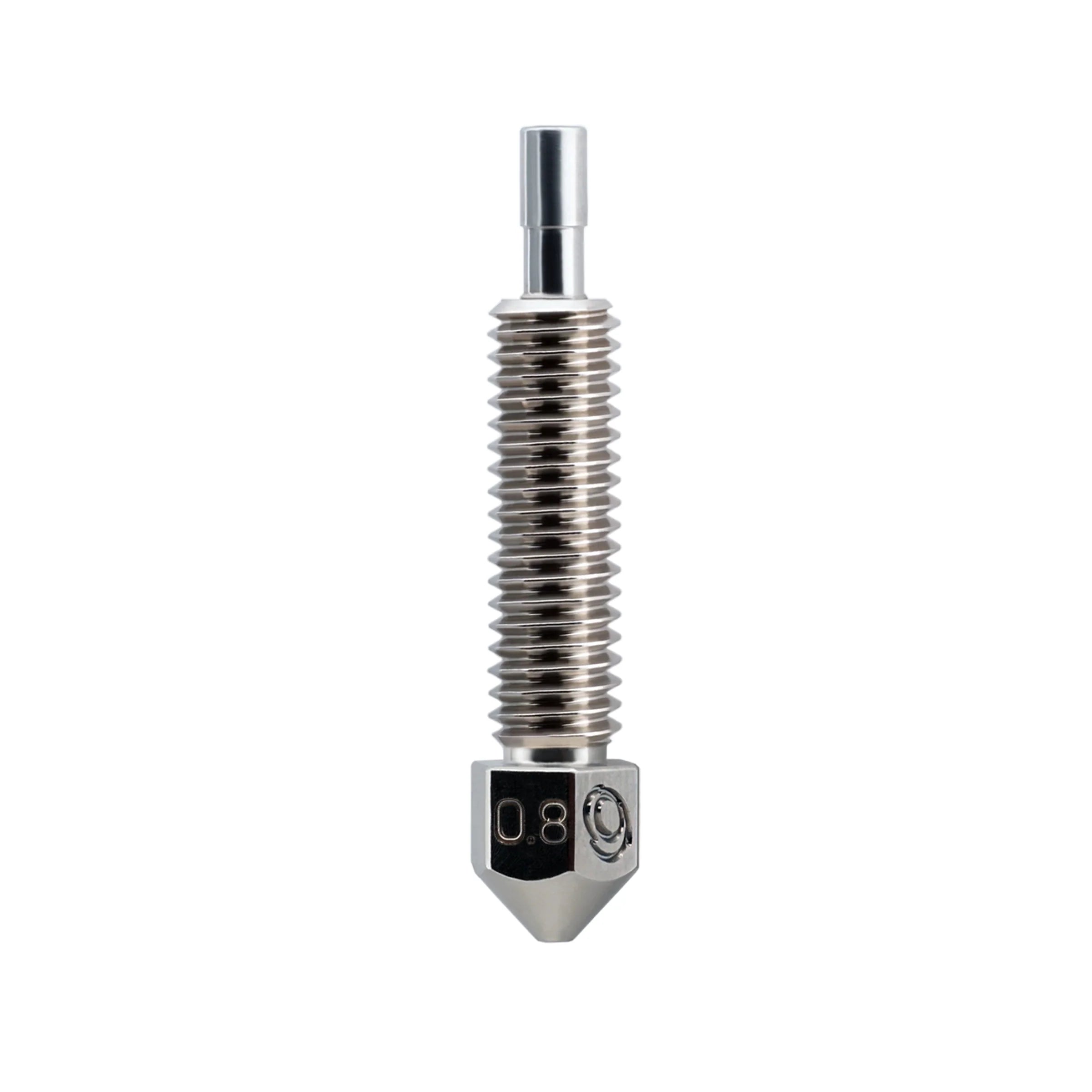

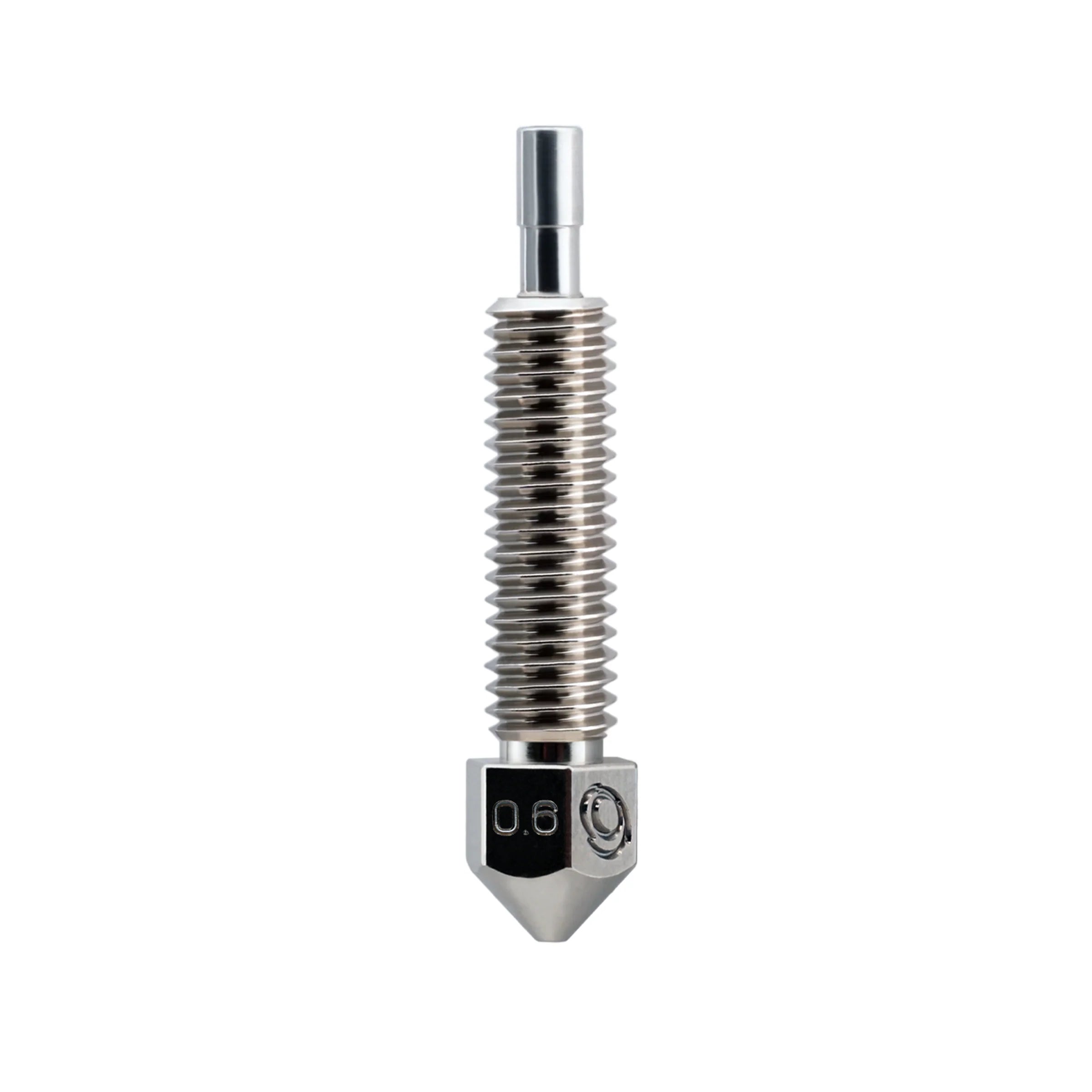

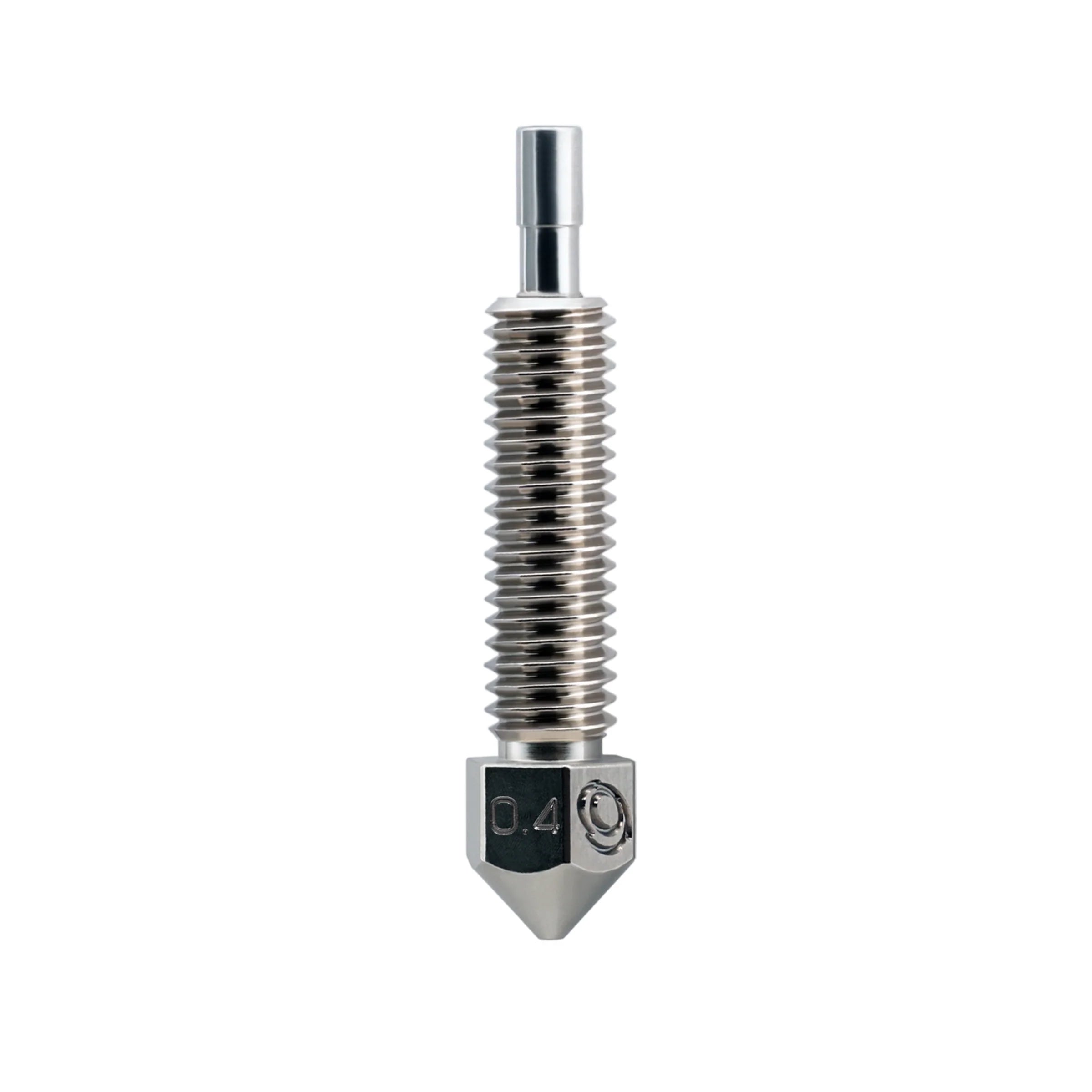

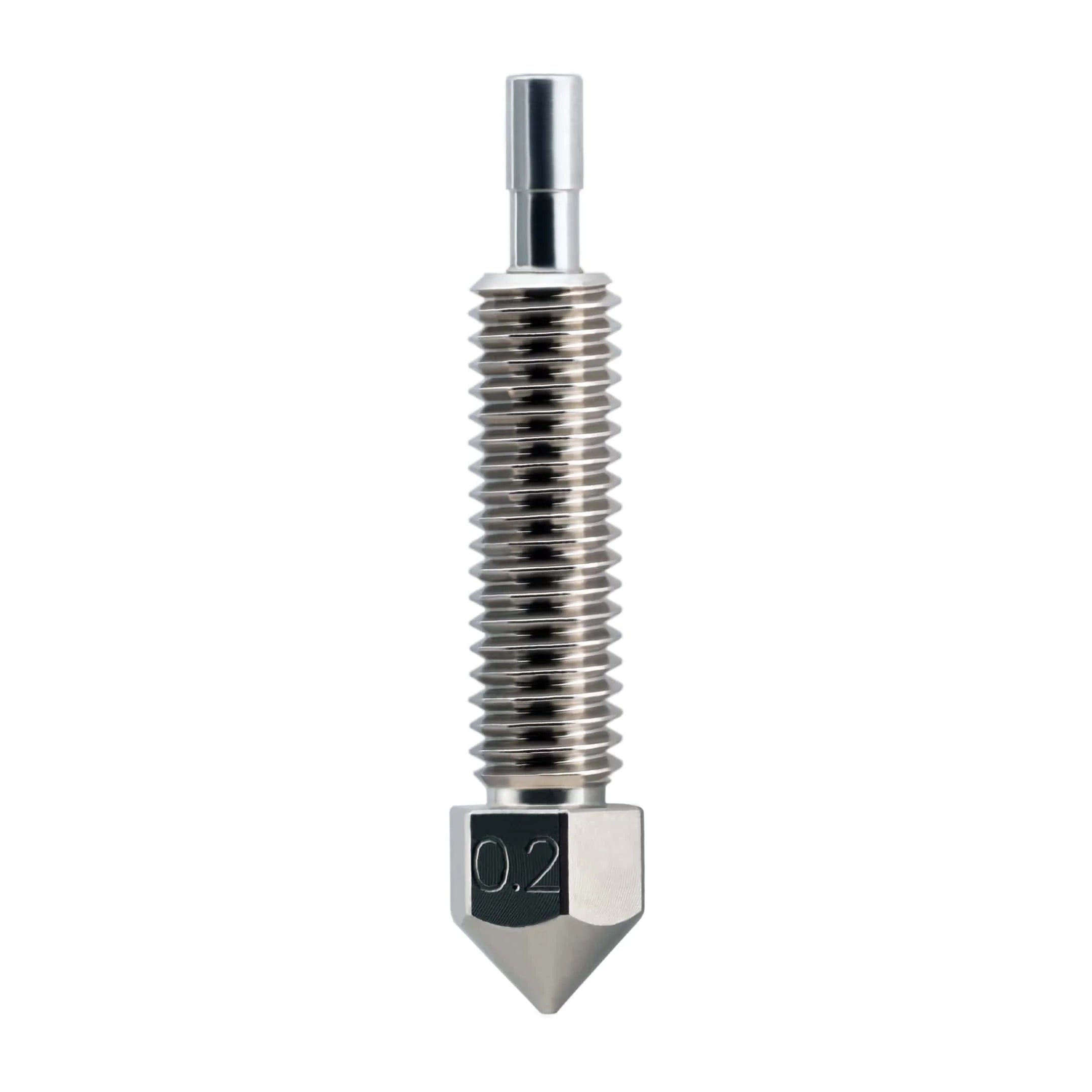

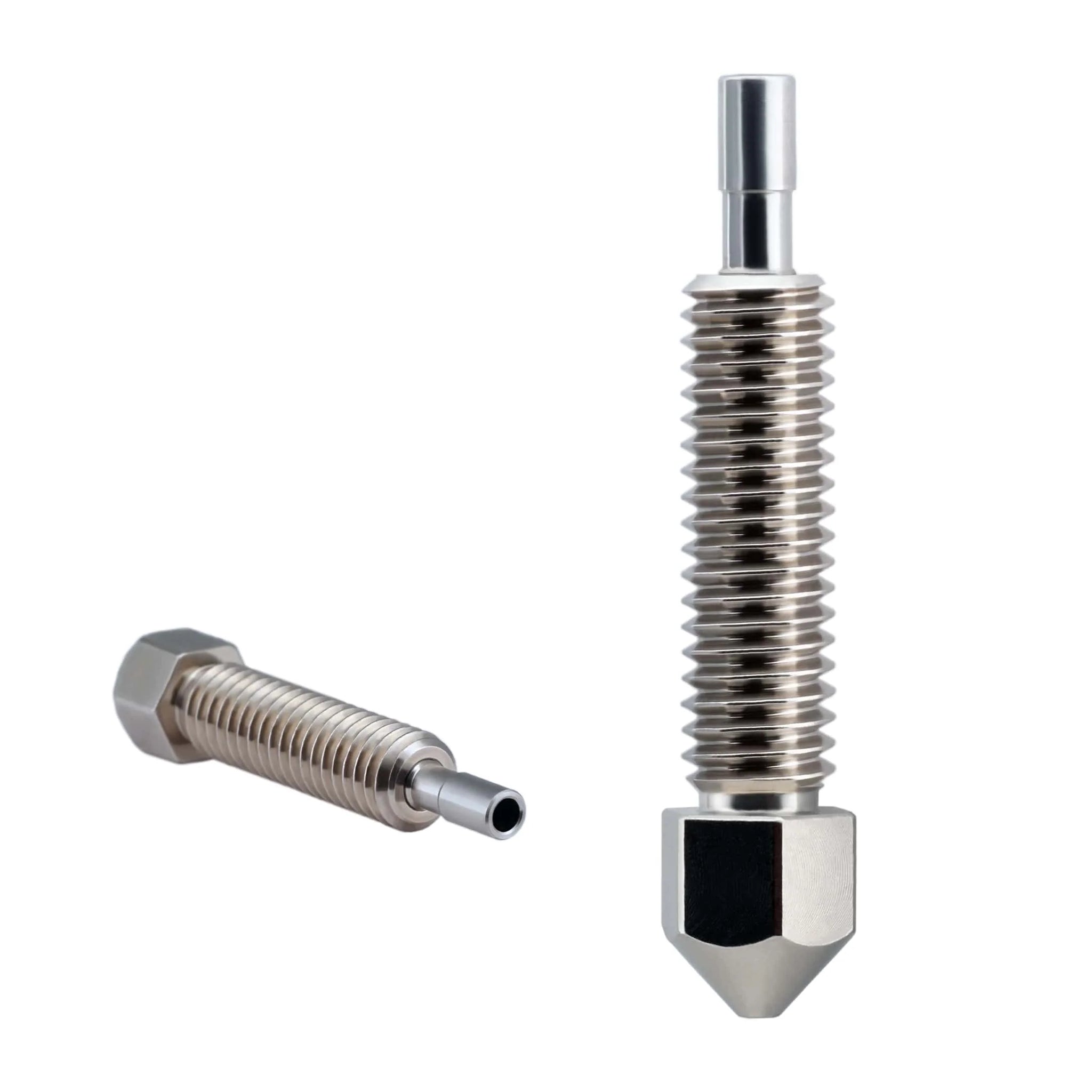

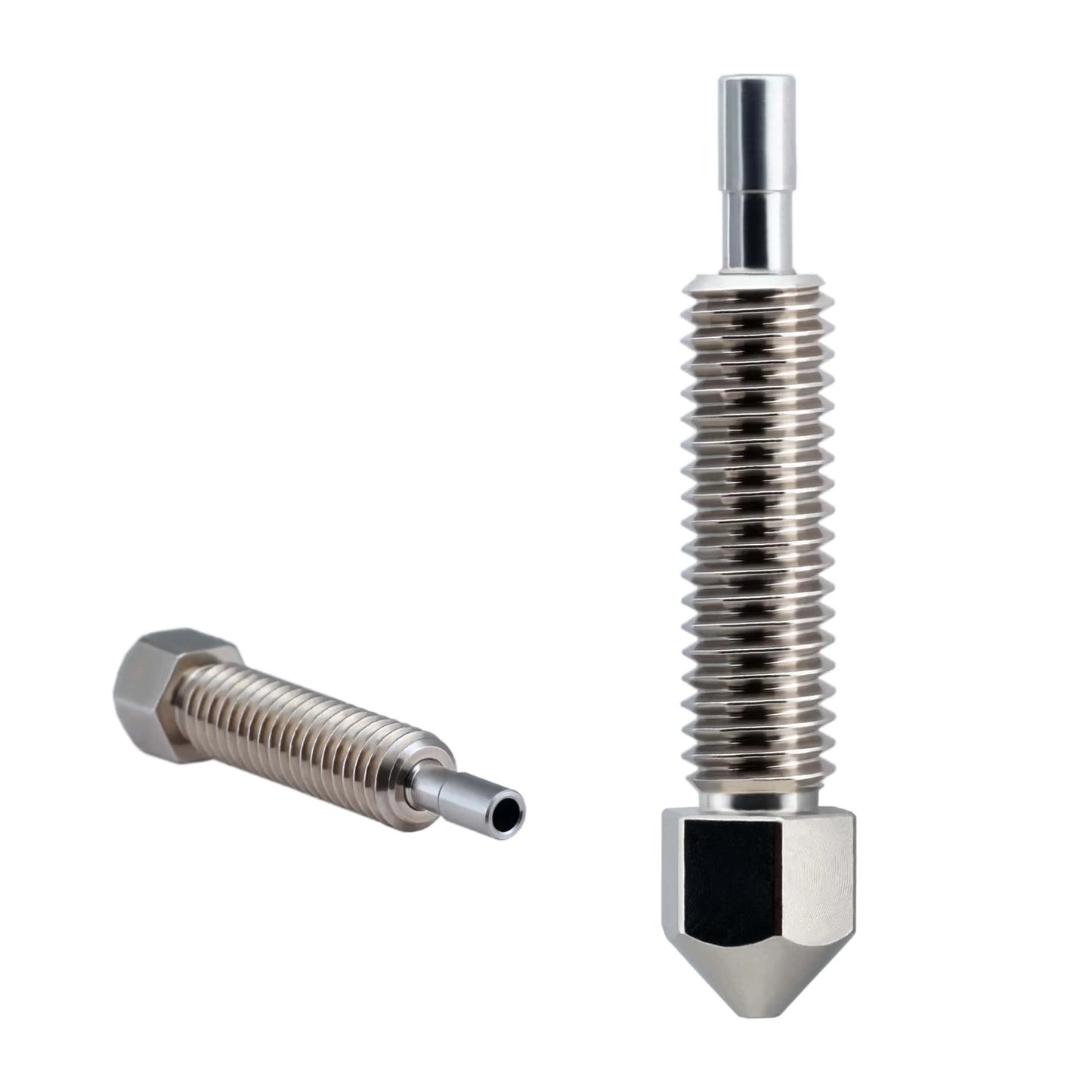

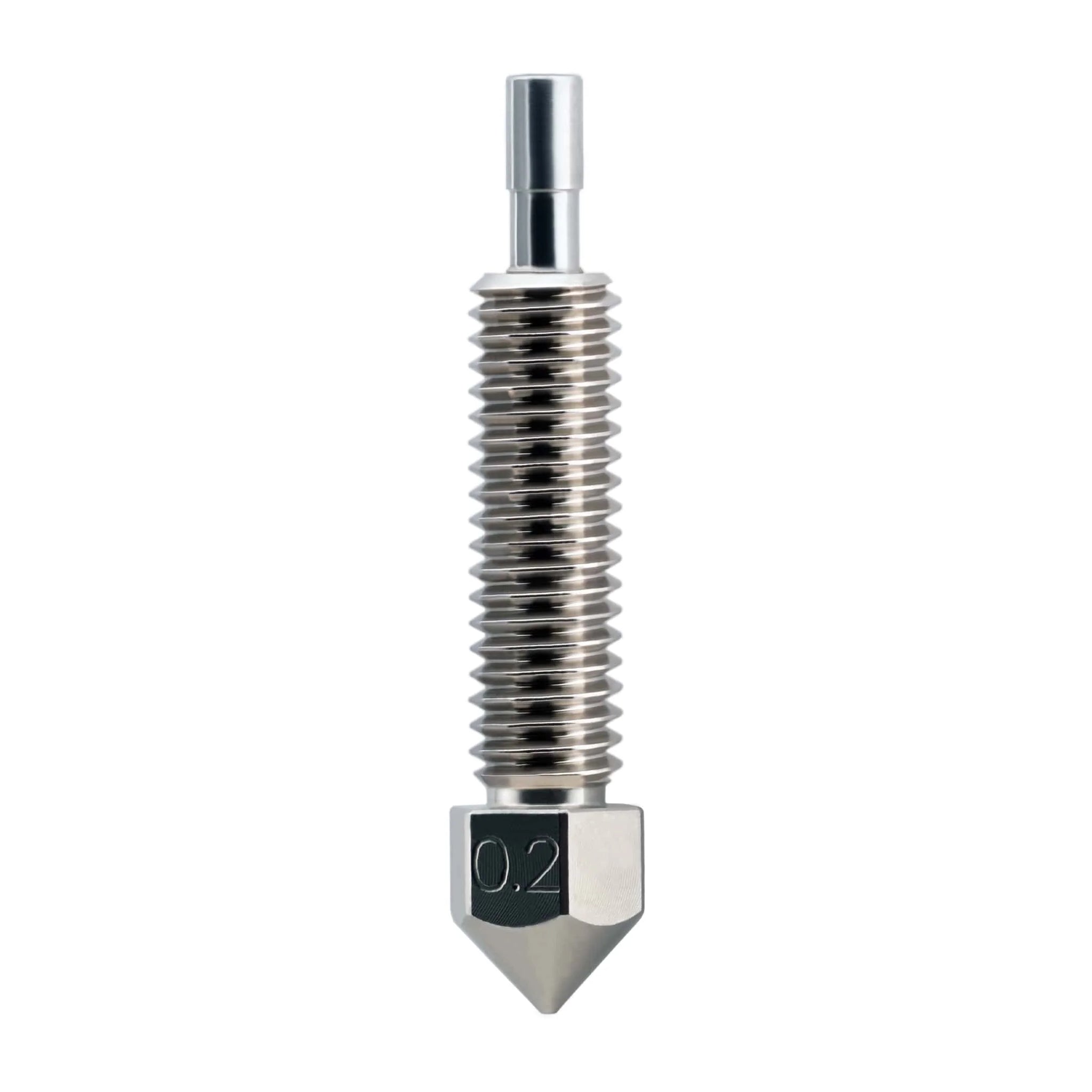

Micro Swiss FlowTech Nozzle

ALL DIAMONDBACK NOZZLES HAVE LEAD TIME

The FlowTech nozzle is designed to be a leak proof and offers an effortless and quick nozzle replacement process.

FlowTech design seamlessly integrates the thermal tube with the nozzle, effectively resolving the most prevalent challenges encountered with conventional hotends: nozzle leaks and nozzle replacement inconvenience.

Micro Swiss CM2 Nozzle Features:

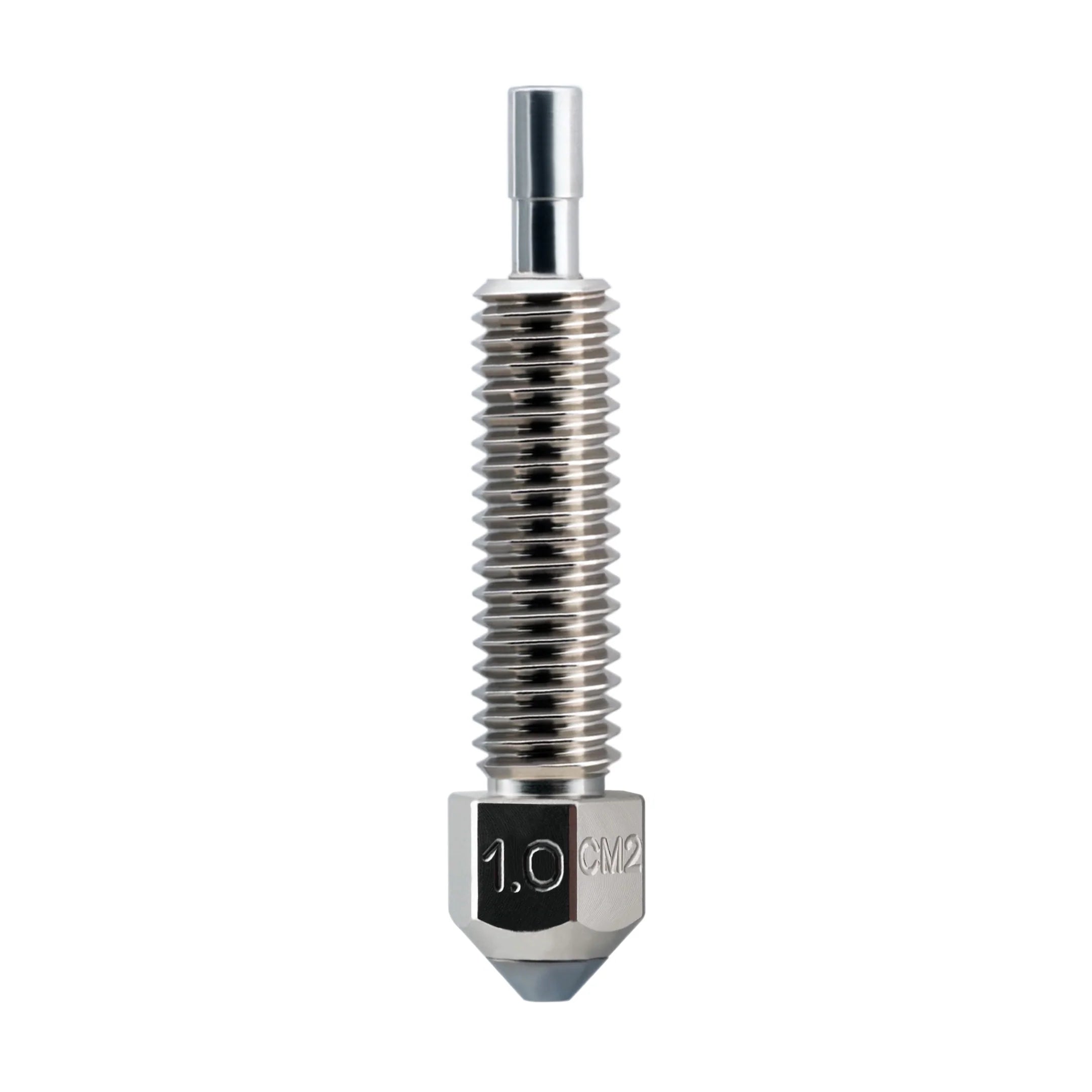

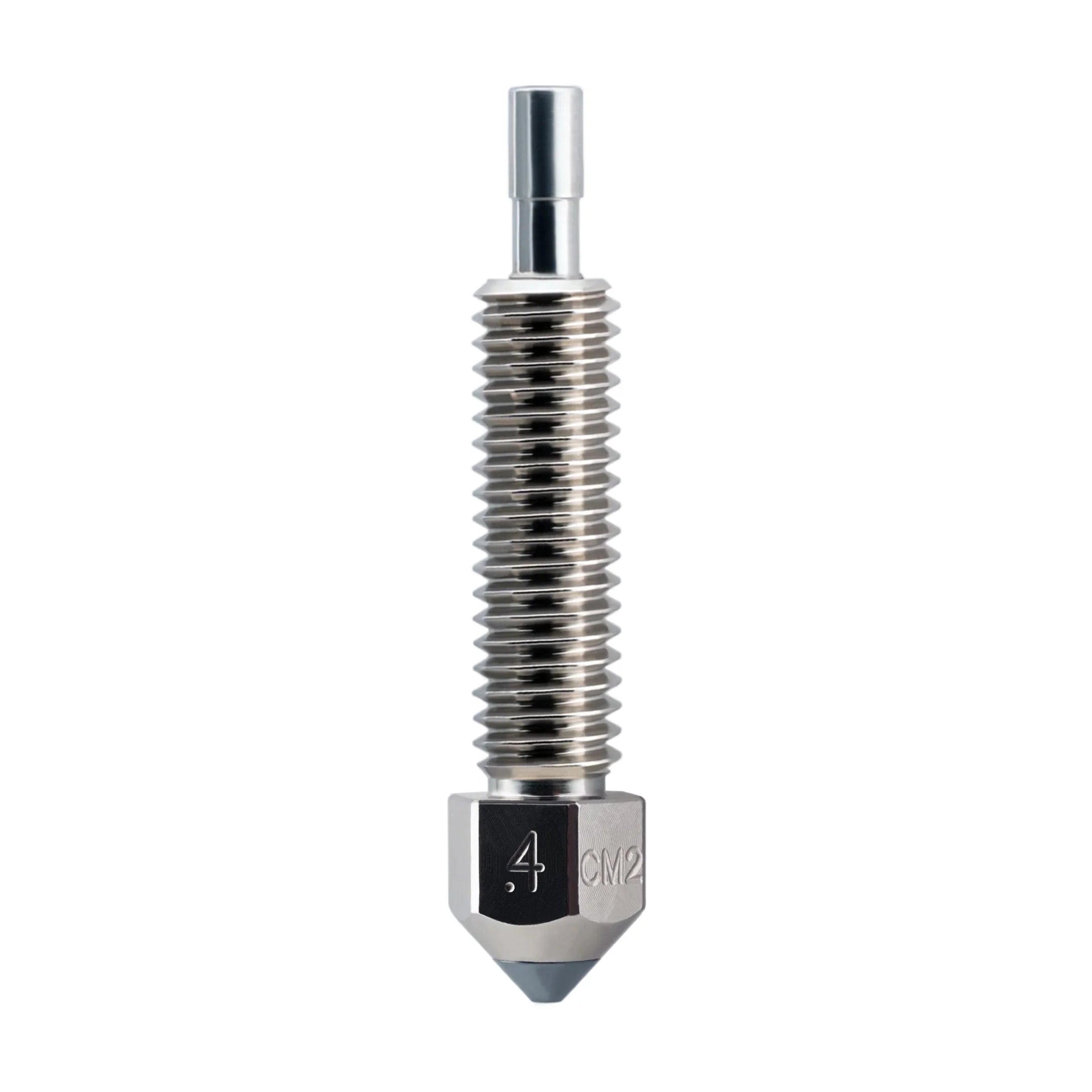

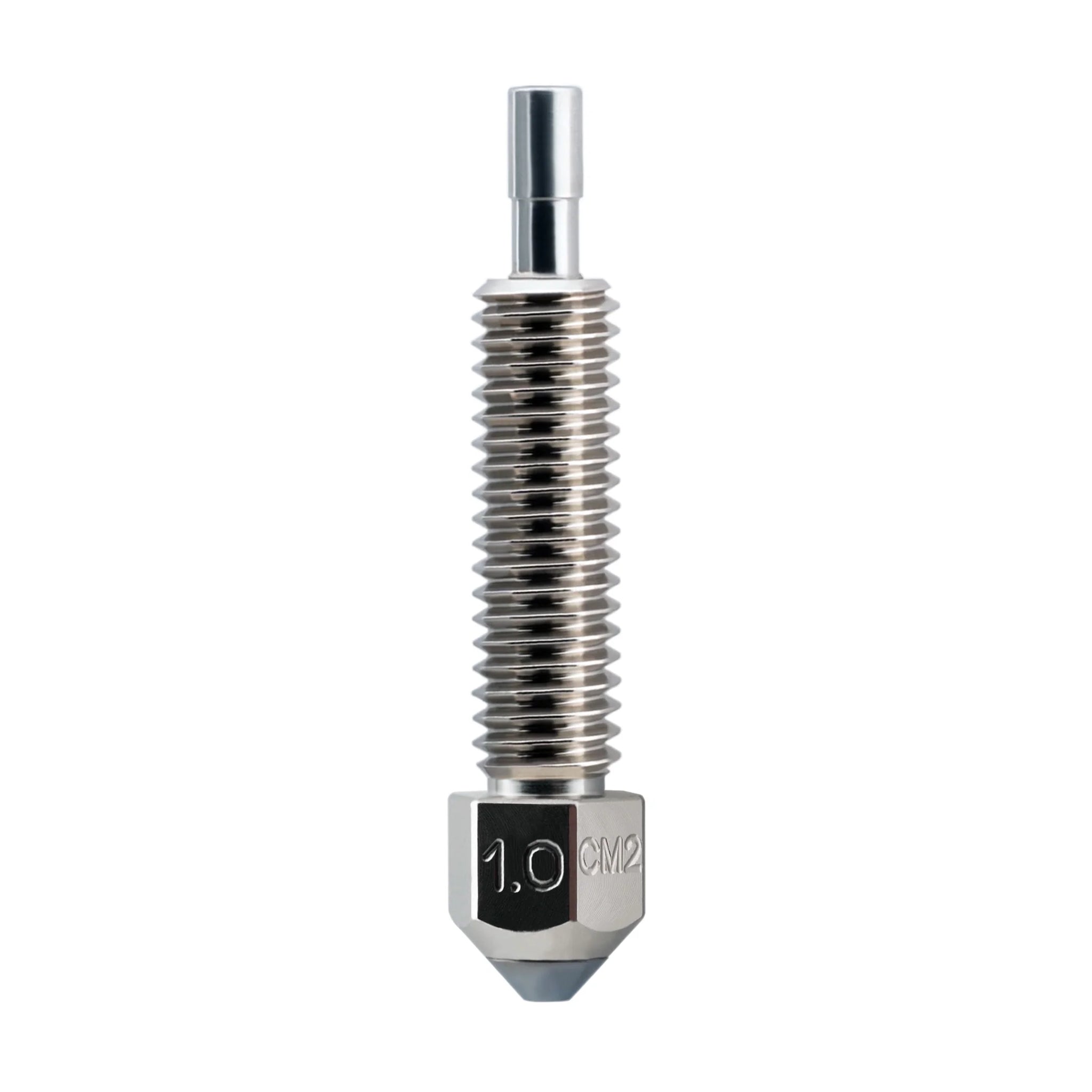

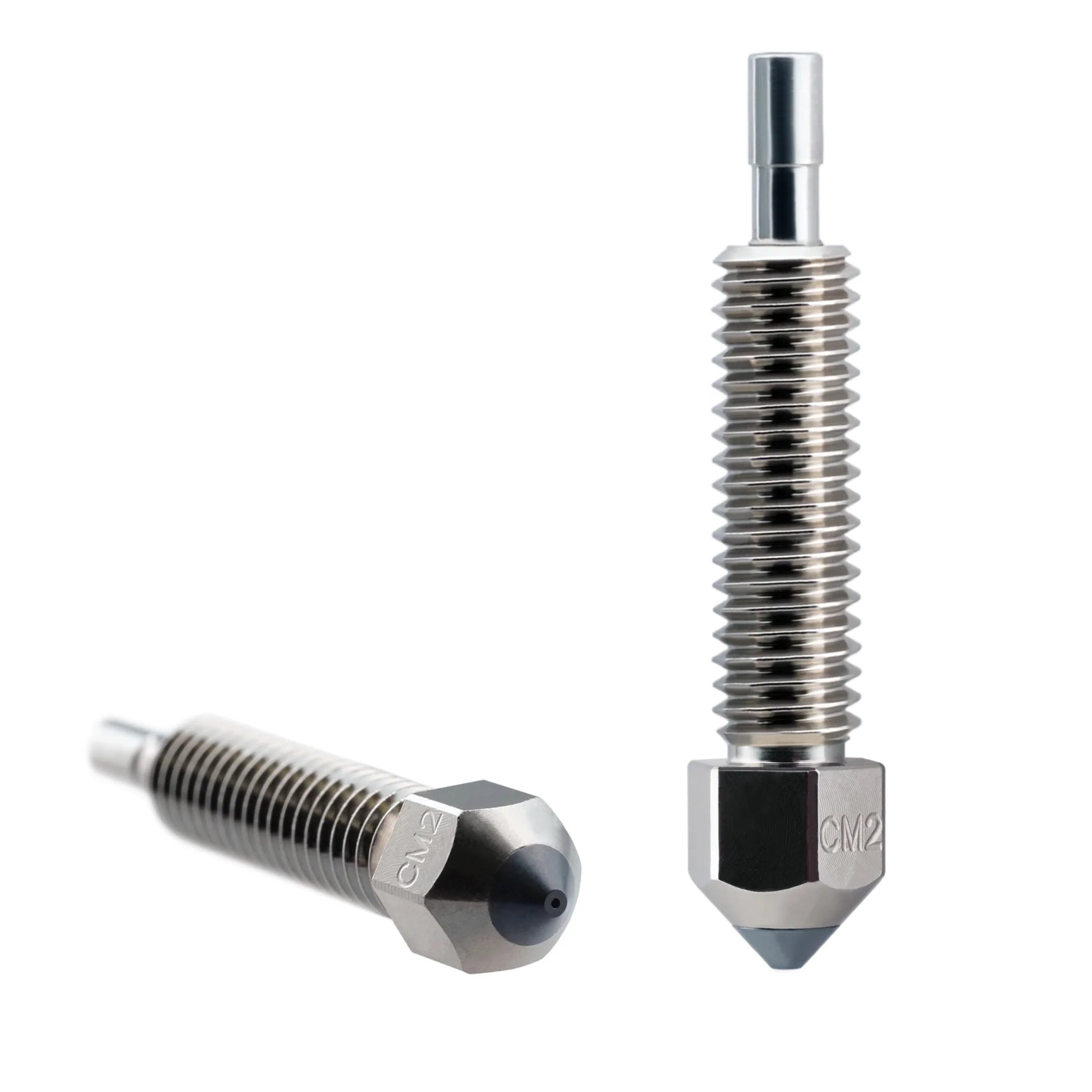

Micro Swiss CM2™ Nozzle is an ideal nozzle for all applications. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special nonstick nano coating.

• Copper Chromium Zirconium body
  • Plated with an Electroless Nickel Plating
• M2 Hardened High Speed Steel insert

  • Plated with a Electroless Nickel Plating

  • Coated with nonstick nano WS2 coating.

  • Coefficient of friction: 0.035

  • Heat-treated hardness:  68 HRC

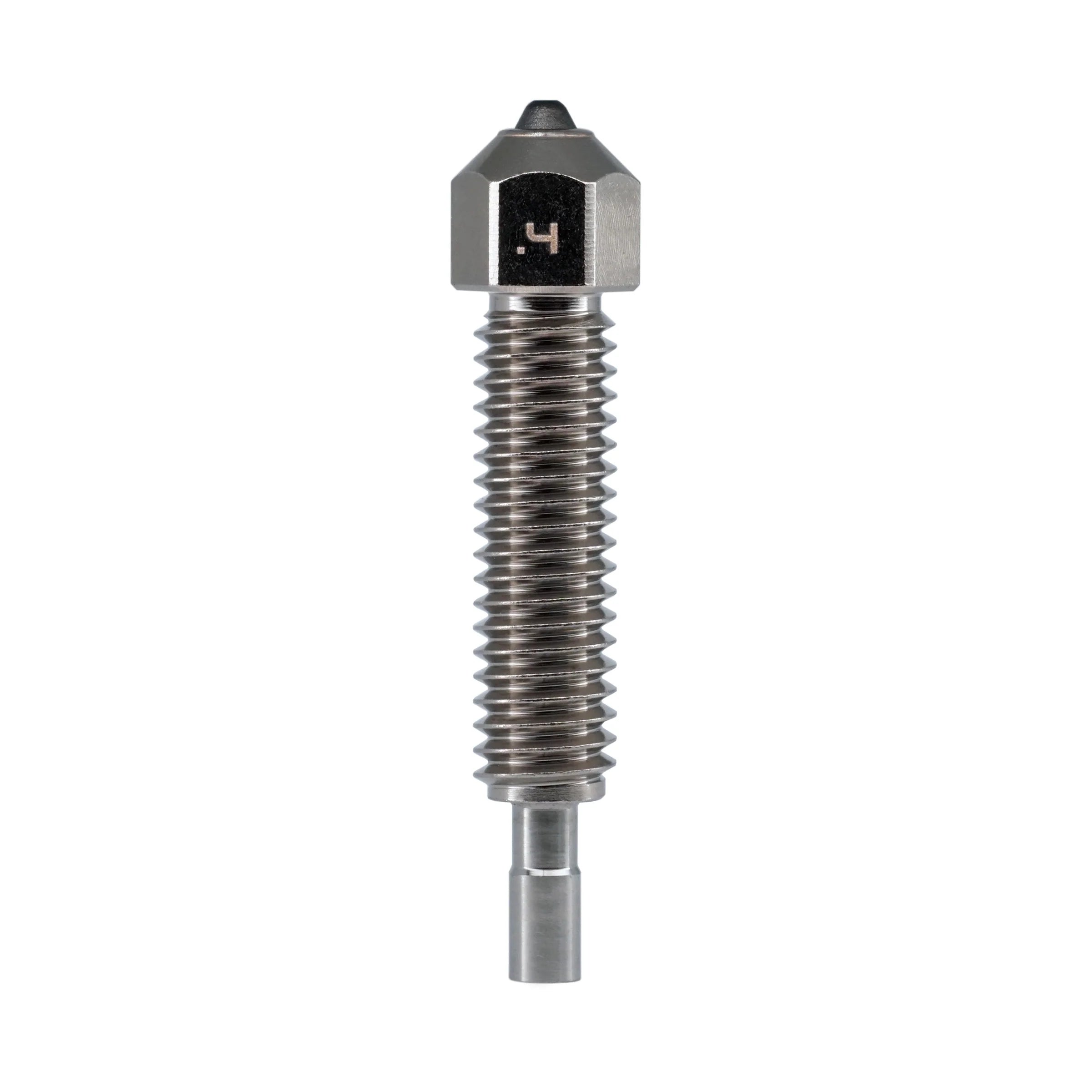

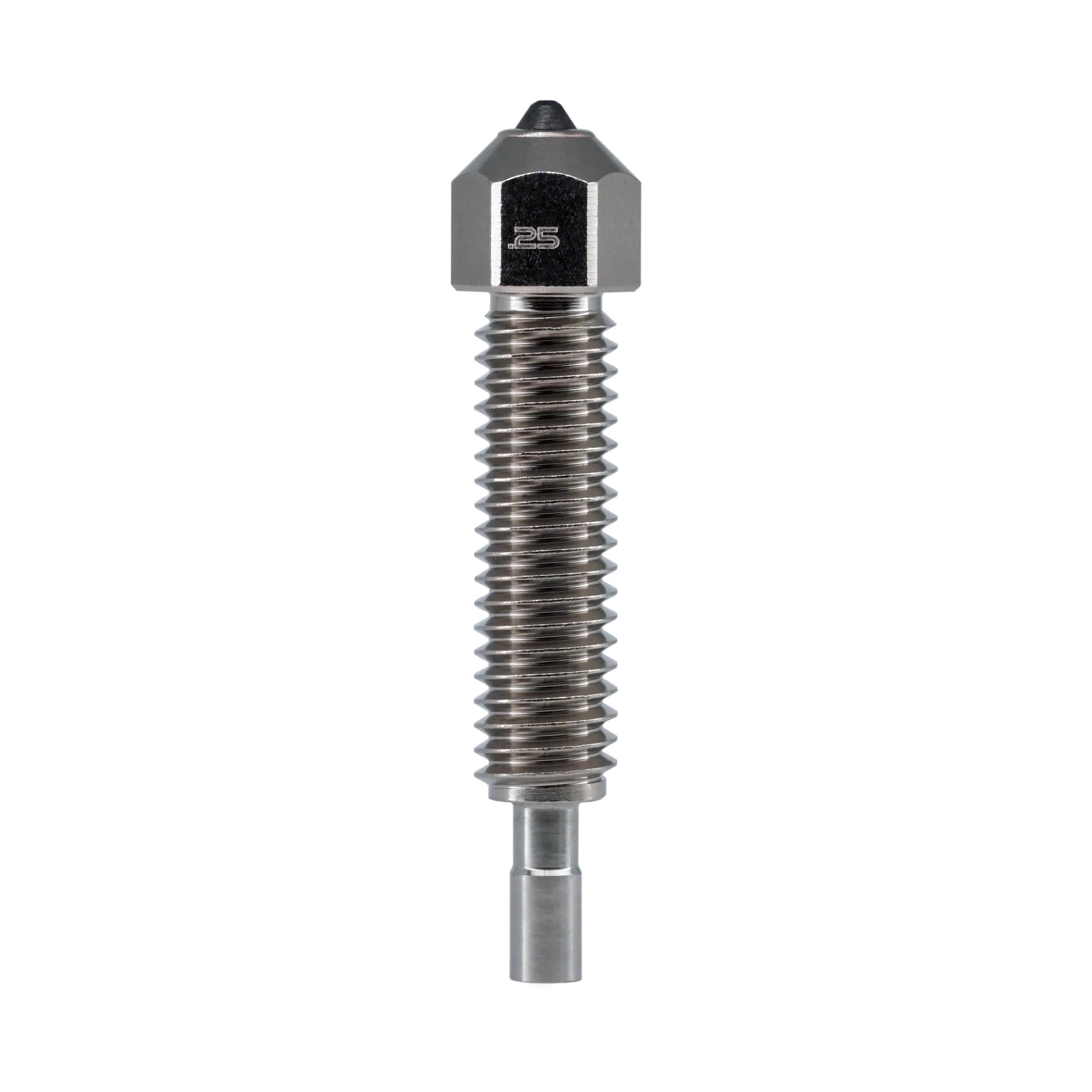

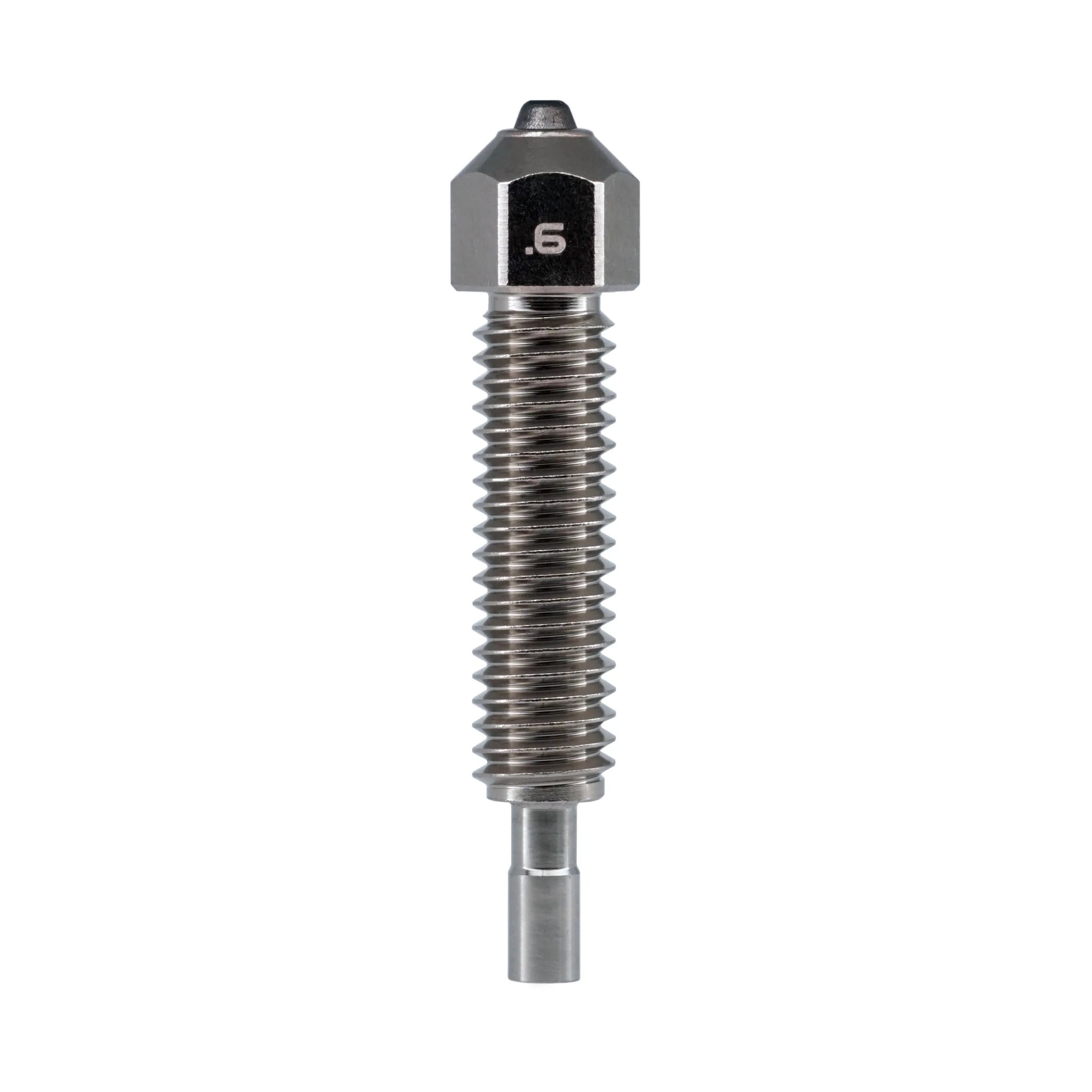

Micro Swiss DiamondBack Nozzle Features:

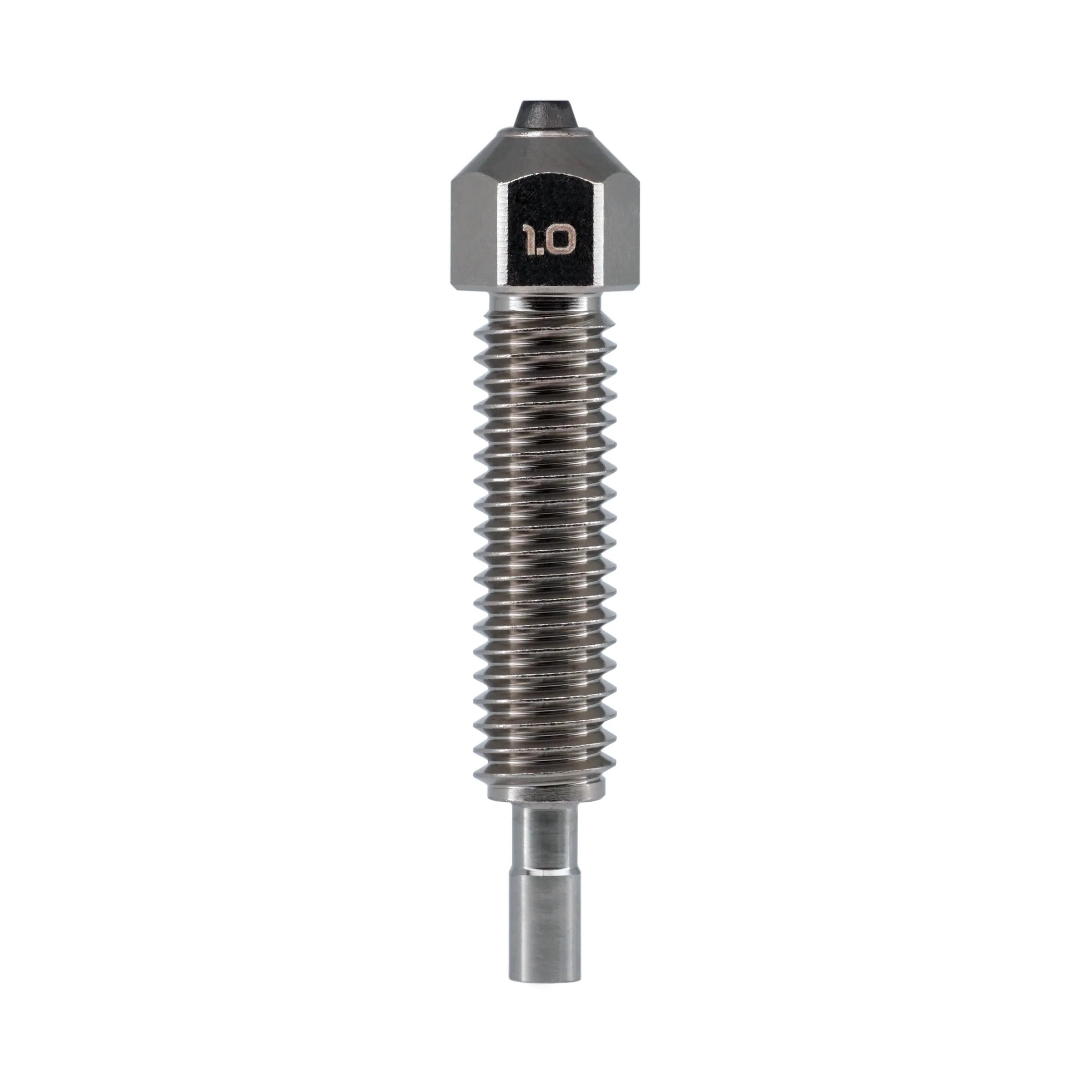

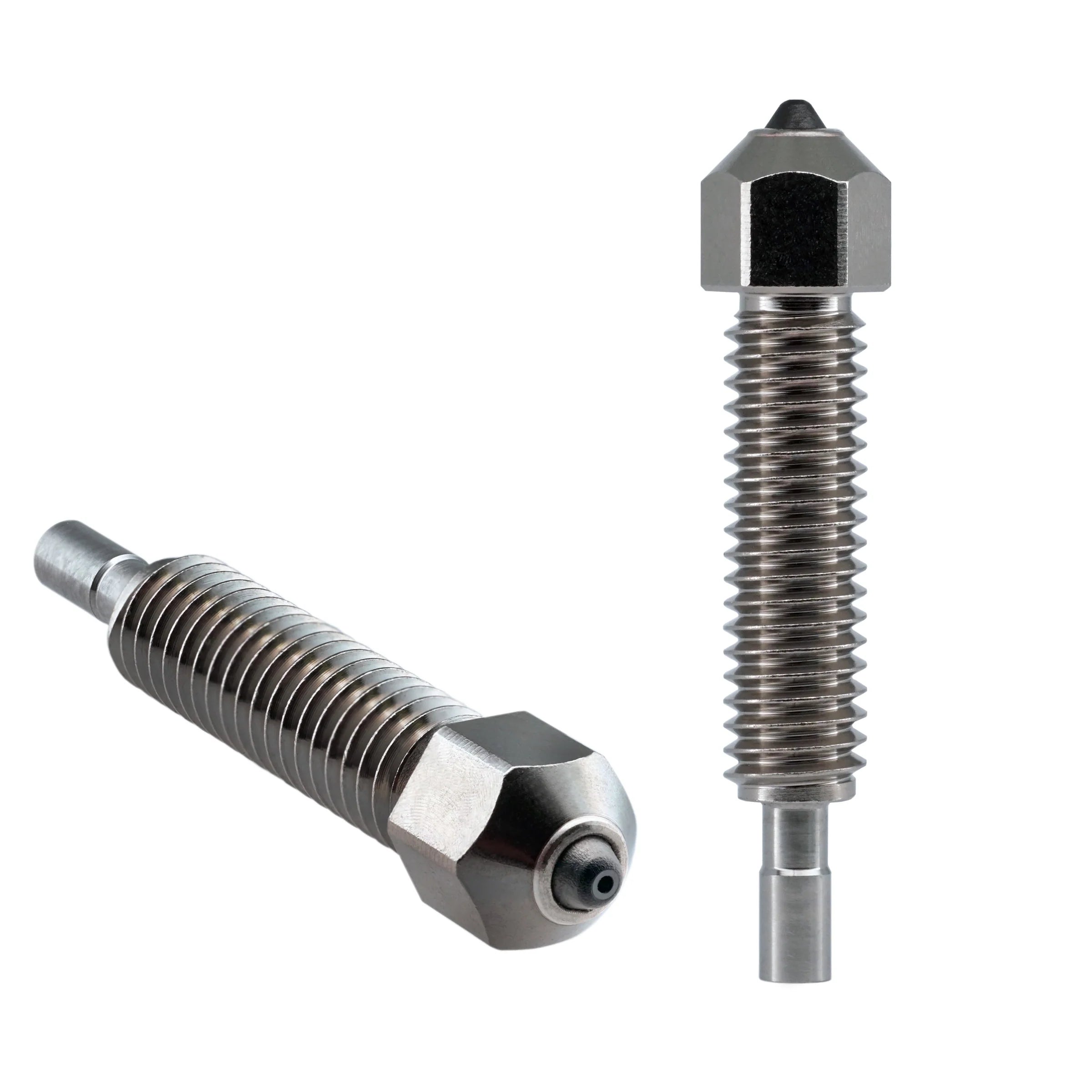

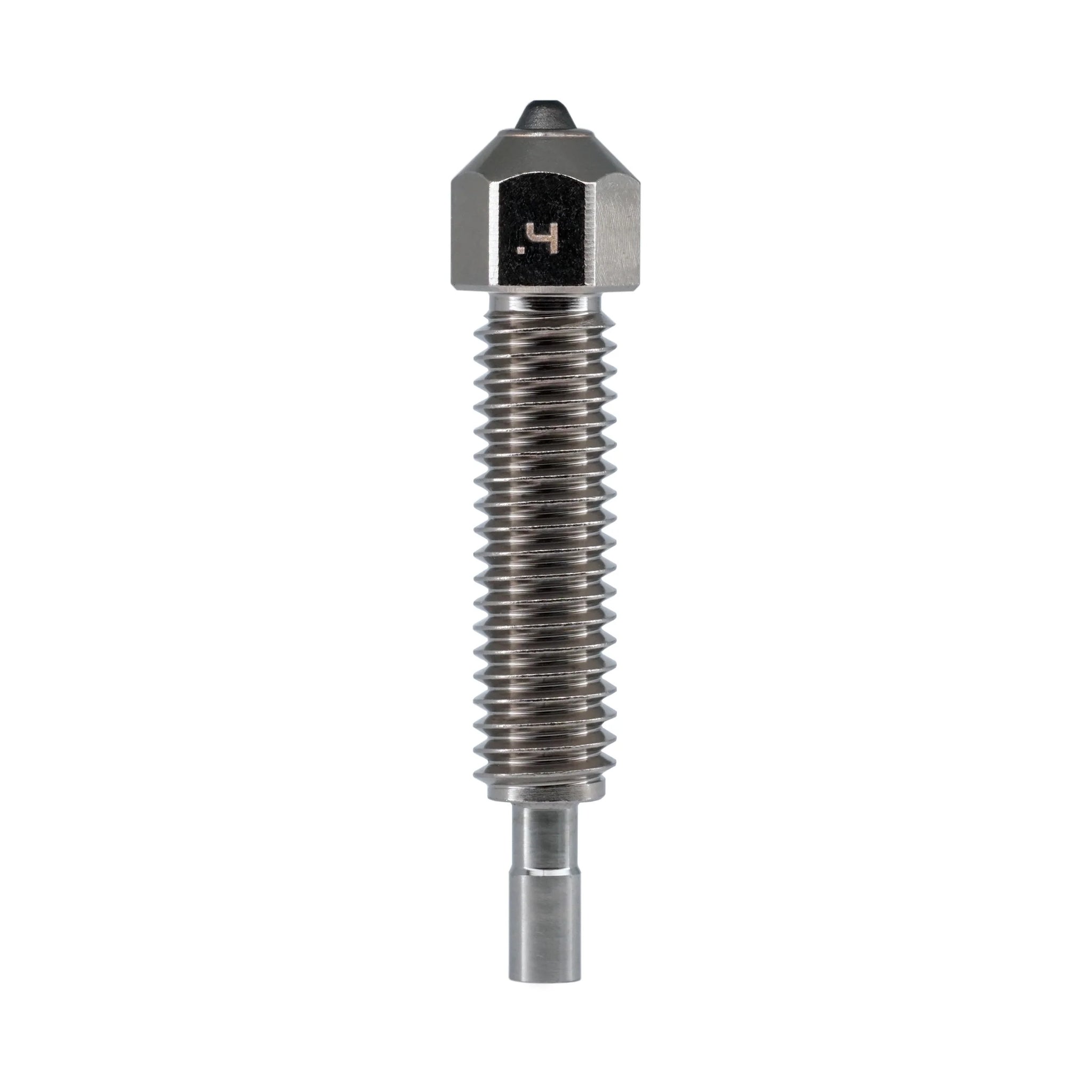

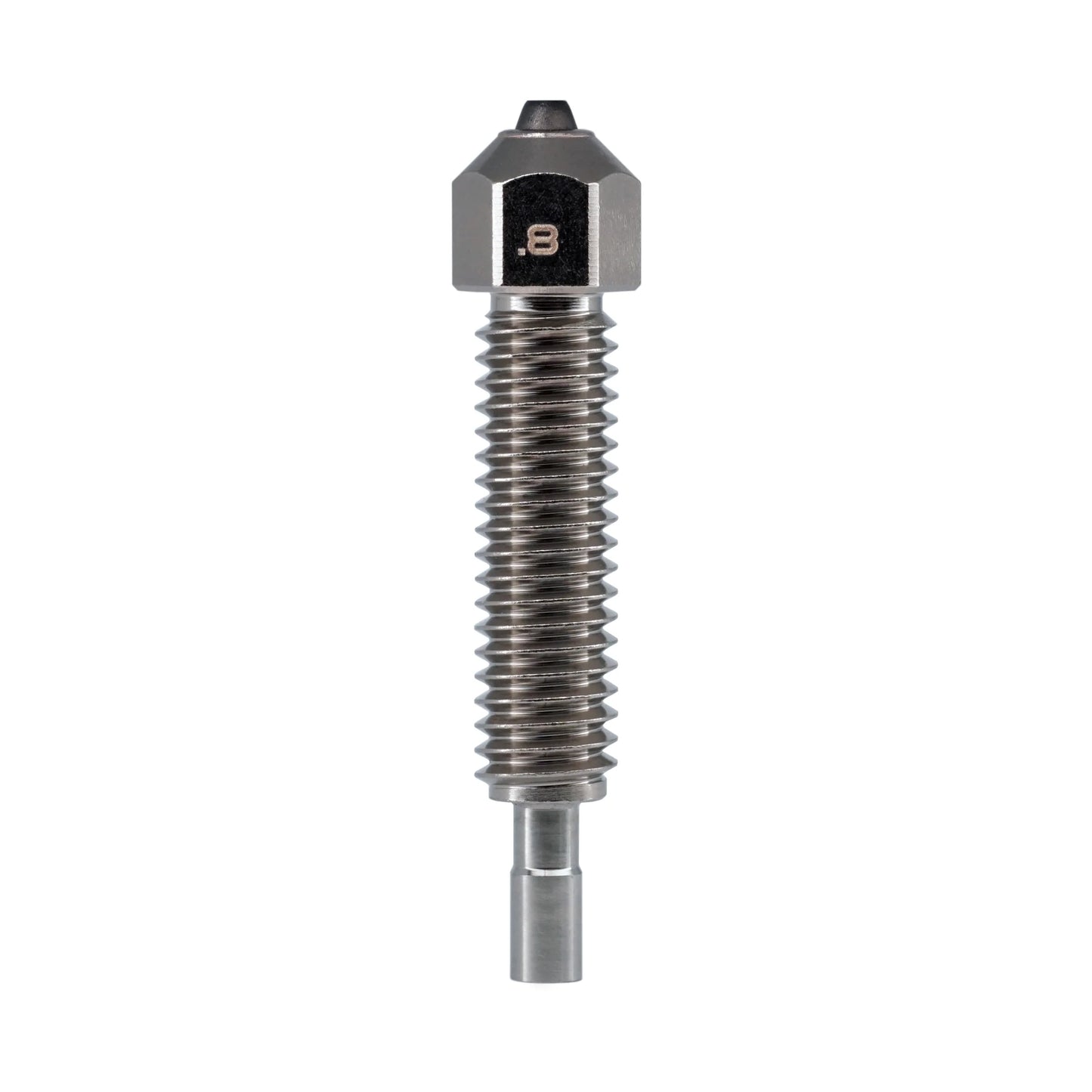

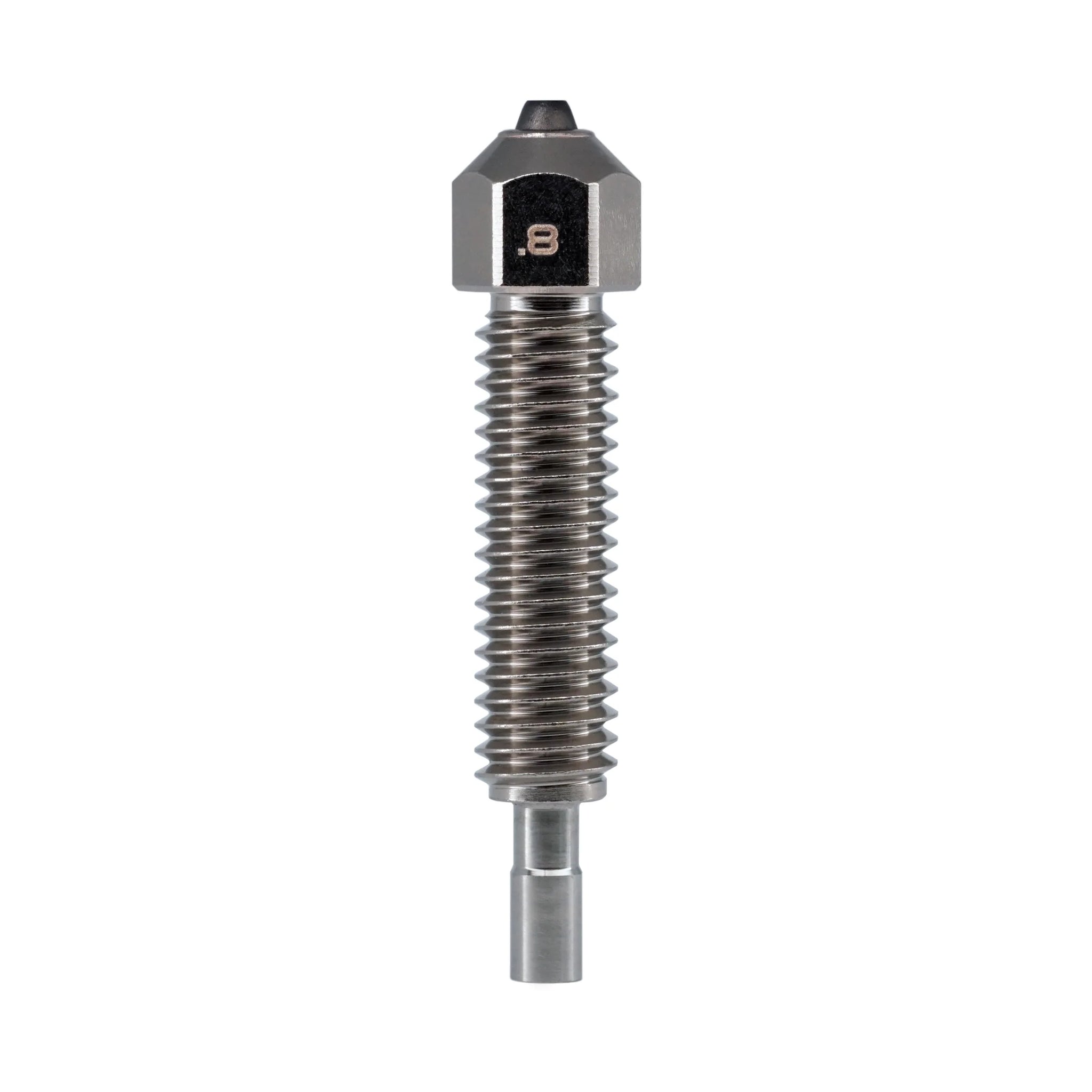

The collaboration between Micro Swiss and DiamondBack introduces the most advanced nozzle to the FlowTech ecosystem. This nozzle features a proprietary Polycrystalline Diamond (PCD) insert, developed after 40 years of diamond technology research, designed to tackle the most challenging printing applications.

• Copper Chromium Zirconium body

  • Plated with an Electroless Nickel Plating
• Polycrystalline Diamond (PCD) insert

  • Thermal Conductivity: 543W/m-K

  • Hardness: 49.8 GPA

  • Coefficient of Friction: 0.01 COF
