Description
- Multi-Light Versatility: 1 Plus + 7 + 34 Blue Lasers+ NIR for superior detail capture in any condition.
- High Precision & Efficiency: 0.02mm + 0.08mm/m volumetric accuracy | 90 FPS speed + large FOV for fast, precise scans.
- Wide Range & Adaptability: Scans 5mm to 4000mm objects | 4-lens stereo vision + outdoor/marker-free/spray-free support.
- Smart Operation: AI-powered software + wireless control + seamless CAD/CAM/3D printing integration.
- Stable & Intelligent : Temperature compensation for long-term stability | Handles complex workflows effortlessly.
-
Windows only (macOS support coming Sept)
-
Wireless scanning requires handle (PC supported)
-
Mobile app: screen mirroring only
A Truly Versatile Professional Scanner
Multi-Light Versatility
·
1 + 7 + 34 Blue Lasers+ NIR
High Accuracy
· Volumetric Accuracy: 0.02mm + 0.08mm/m
High Efficiency
· Scanning Speed up to 90 FPS
· Larger FOV for Fasten Scanning of Large Objects
· Innovative 4-Lens NIR Structured Light Enables Efficient, Marker-Free Scanning of Medium to Large Objects.
Versatile Size Scanning
· Scan objects ranging from 5 mm to 4000 mm (from Coins to Entire Vehicles)
User-Friendly
· Spray-free for Black or Metal Surfaces
· Excellent Outdoor Performance
· Marker-Free Scanning for Faces & Large Objectts
· Support Wireless Operation(with Optional Accessory)
Intelligent
· Temperature Compensation Algorithm for Stable Long-Term Use
· AI-Powered Scanning Software Simplifies Complex Workflows
· Seamlessly Integrates with Professional Software,Supporting Standard Formats for Easy Post-Processing.
· High-Definition Color Reproduction

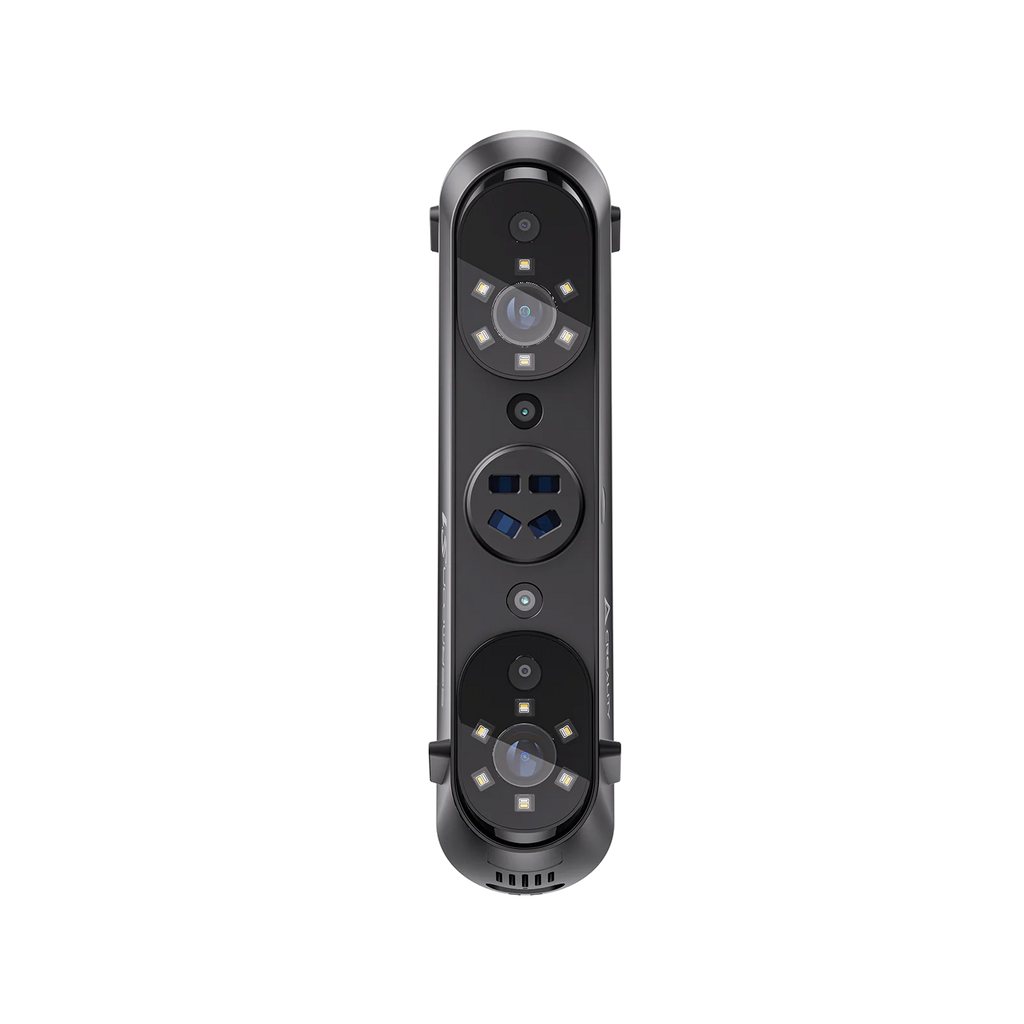

Full hardware upgrade
Single-Line Laser
+ 7 Parallel Lasers
+ 34 Cross Lasers
High Accuracy camera
High Accuracy camera
Wide-angle Camera
Wide-angle Camera
NIR
Color Camera1
Multi-Light Versatility
Why Choose the Sermoon S1
1+7+34 Laser Line+ NIR
1 Single Laser Line
7 Parallel Blue Laser Lines
34 Cross Laser Lines
Innovative 4-Lens NIR Structured Light
Accurately capture 3D data of deep holes and hard-to-reach area
Reveal deep holes, narrow gaps, and recessed areas Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuraccy.
Deep Holes
Narrow Gaps
Recessed Areas
02
High Accuracy
Why Choose the Sermoon S1
Sermoon S1 delivers metrology-grade precision, making it ideal for high-accuracy, non-destructive inspection across industries.
Scanning Accuracy 0.02mm
Volumetric Accuracy 0.02 mm + 0.08mm/m
03
03High Efficiency
Why Choose the Sermoon S1
90FPS High-Speed Scanning
Achieve data acquisition speeds of up to 1,428,000 points per second and a maximum scanning frame rate of 90 frames per second.
Parallel lines/single line, up to 90fps
Cross lines up to 70fps
Innovative 4-Lens NIR Structured Light
Innovative 4-Lens NIR Structured Light
Standard Stereo Lenses: provide high-accuracy scanning
Wide FOV: offer an ultra-wide field of view for fast, marker-free scanning of large objects and human bodies.
Efficient Scanning at Large Scale
A larger single-frame FOV reduces the number of required markers, improves tracking stability,
and significantly enhances scanning efficiency.
Line laser maximum: 506mmx433mm at600mm
Infrared maximum: (scans a human body in as little as 1 minute)
04
Versatile Size Scanning
Why Choose the Sermoon S1
Scanning Range 5 mm³ - 4000 mm³
With a hybrid system combining blue laser lines and infrared structured light, the Sermoon S1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.
05
User-Friendly Design
Why Choose the Sermoon S1
Flawless Performance Indoors & Outdoors
Whether under bright outdoor light or in complete indoor darkness, the Sermoon S1 delivers consistent performance.
· Single/cross-line laser: ≤100k lux
· 7-line laser: ≤50k lux
Scan Black/Metal Objects Without Sprays
05
Intelligent
Why Choose the Sermoon S1
Smart Stabilization for a Smoother Scan
Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement, significantly improving overall scanning accuracy and efficiency.
CrealityScan 4.0
AI-Powered Productivity, Made Simple
CrealityScan 4.0 is an upgraded professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, it makes scanning easier than ever.
Faster
GPU acceleration enables real-time scanning up to 90 fps; laser line fusion is 2× more efficient
Easier
Stronger
Smarter
Seamless Integration to Inspection, Design, 3D Printing Softwares
The scan data can be imported into mainstream reverse engineering software, 3D inspection and design software programs, such as QuickSurface, Geomagic Design X, improving the workflow efficiency.
QuickSurface
Packing List
Sermoon S1
USB 3.0 data cable (Type-C/Type-A)
Power plug
Reflective markers (D6mm*10 sheets,D3mm*10 sheets)
High-precision glass calibration plate
Type -C adapter
Lanyard
Cleaning cloth
Quick start guide, certificate of conformity & warranty card
Waterproof box
Applications
Automotive
Reverse Engineering
Inspection
Manufacturing
Art & Antique
Product Parameter
| Scanning Mode | Single Blue Laser Line | 7 Parallel Blue Laser Lines | 34 Cross Blue Laser Lines | Close-Range Infrared Structured Light | Long-Range Infrared Structured Light |
|---|---|---|---|---|---|
| Accuracy | Up to 0.02mm[1] | Up to 0.075mm | |||
| Volumetric Accuracy | 0.02mm+0.08mm/m | 0.075mm+0.1mm/m | |||
| Scanning rate |
108,000 measurements/s
|
756,000 measurements/s
|
1,428,000 measurements/s
|
4,600,000 measurements/s | |
| 3D Resolution | 0.05-2mm | 0.1-2mm | |||
| Scanning Speed | Up to 90fps | Up to 30fps | |||
| Min. scan volume | 5mm x 5mm x 5mm | 150mm x 150mm x 150mm | |||
| Single Capture Range |
205mm x 147mm@200mm
293mm x 217mm@300mm
355mm x 289mm@400mm
417mm x 361mm@500mm
506mm x 433mm@600mm
|
293mm x 217mm @300mm
417mm x 361mm @500mm
|
689mm x 375mm @500mm
1245mm x 754mm @1000mm
|
||
| Working distance | 200mm-600mm | 150mm-400mm | 200-600mm | 170mm-500mm | 200mm-1200mm |
| Color Mapping | Yes | ||||
| Alignment mode | Marker / Global Marker | Marker / Global / Geometry / Texture | |||
| Color Supplemental Light | 12 White LEDs | ||||
| Outdoor Scanning | Below 100,000 lux | Below 50,000 lux | Below 100,000 lux | Below 30,000 lux | |
| Marker Recognition Enhancement | 12 Blue LEDs / 12 White LEDs | ||||
| Laser Safety | Class II (eye safe) | Class I (eye safe) | Class II (eye safe) | Class I (eye safe) | |
| Device Weight | 508g | ||||
| Size | 225mm×53mm×76mm | ||||
| Calibration board | High-precision glass calibration board | ||||
| Wireless Scanning | Supported in Conjunction with Wireless Scanning Accessories | ||||
| System Support |
Windows/macOS
Android/iOS (Requires Wireless Scanning Accessories)
|
||||
| Computer Configuration Requirements |
Windows:
The following or higher configurations are recommended: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB RAM, Windows 10/11 (64-bit) Minimum configuraiton: i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows 10/11 (64-bit)
macOS:
M1/M2/M3/M4 series, 16GB RAM
|
||||
| Operating temperature | -10°C to 40°C | ||||
| Operating humidity | 10-90%RH | ||||
[1] Accuracy is evaluated in laboratory conditions and actual results may be affected by operating environments such as vibration, temperature, and other factors.
